Home >> BMW >> 1995 >> 325i Convertible (E36) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Control System MS40 - Canada >> Throttle Position Sensor

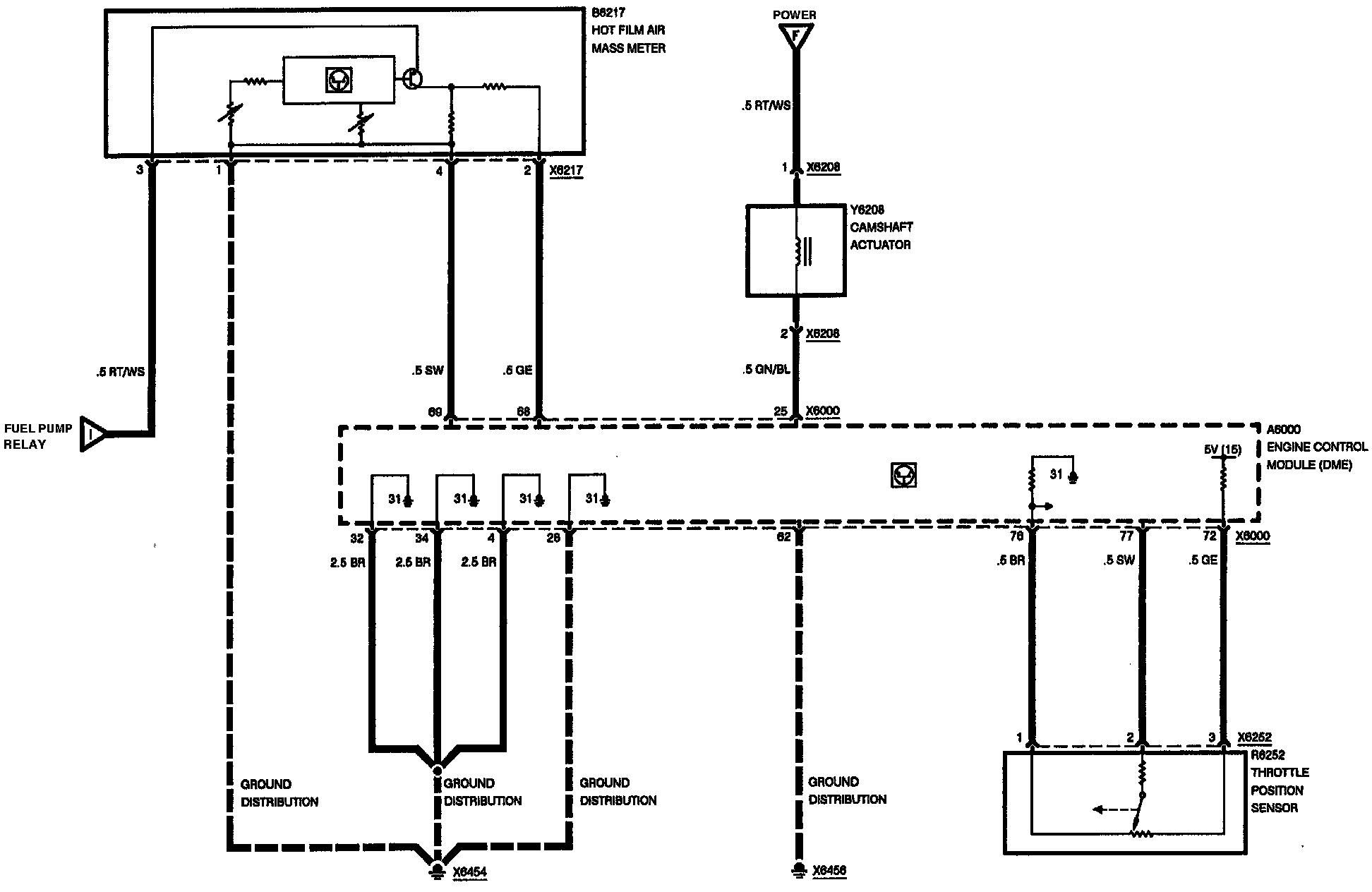

Throttle Position Sensor

Engine Control System MS40: Throttle Position Sensor:
