Home >> BMW >> 1995 >> 318ti (E36/5) L4-1796cc 1.8L DOHC (M42) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Diagrams >> Electrical Diagrams >> Data Link Pins 16 and 18

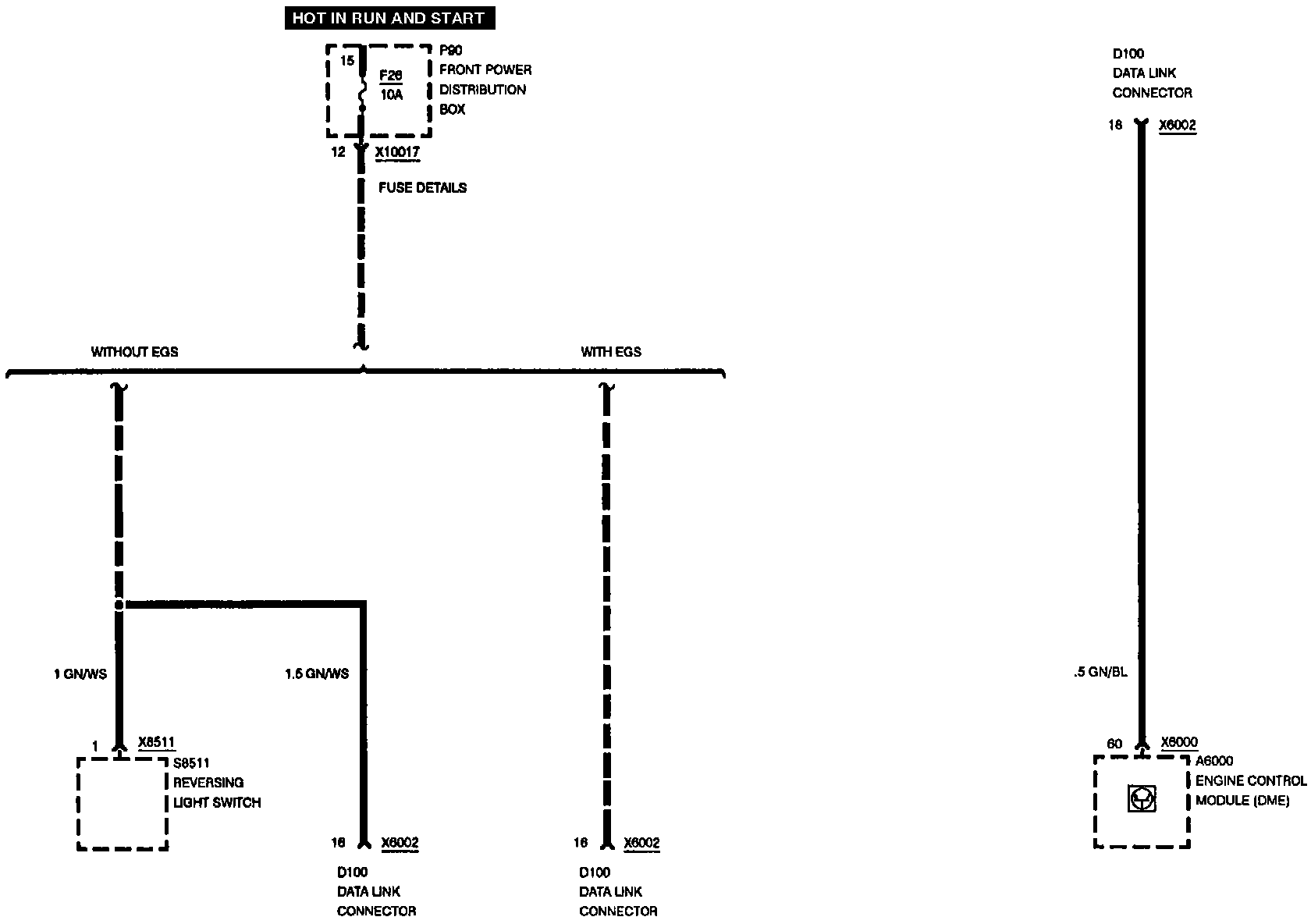

Data Link Pins 16 and 18

Data Link: Data Link Pins 16 And 18:
