Evaporator Temperature Sensor / Switch: Locations

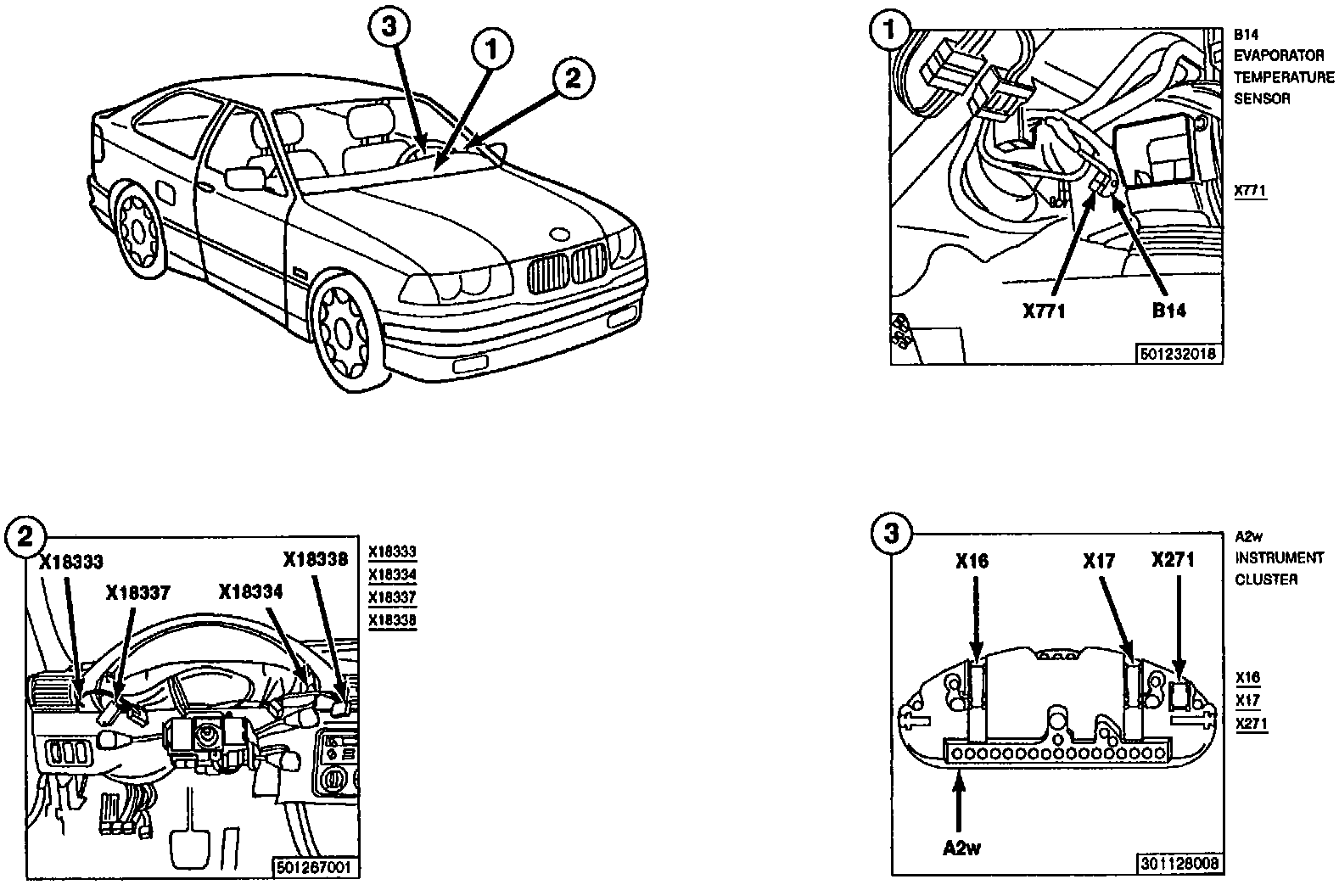

Component/Connector Location Views:
Figure
1
Component ID
B14, Evaporator Temperature Sensor
Location
RH side of LH footwell
