With Air Conditioning

Removing and Installing/Replacing Blower for Intergrated Heating and Air Conditioning Unit (compact)





- Pull off rubber part and pry out grill.





- Remove screws from cable channel.





- Remove screws on right-hand side and take off holder.





- Remove screw on left side and pull out air collector in upwards direction.

Note:
Air collector will be difficult to pull out.

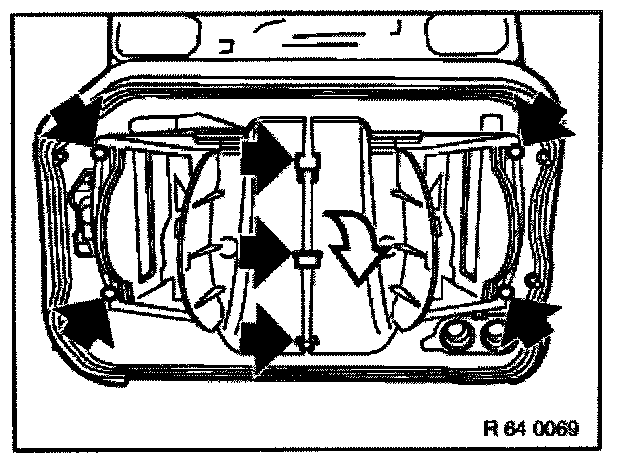

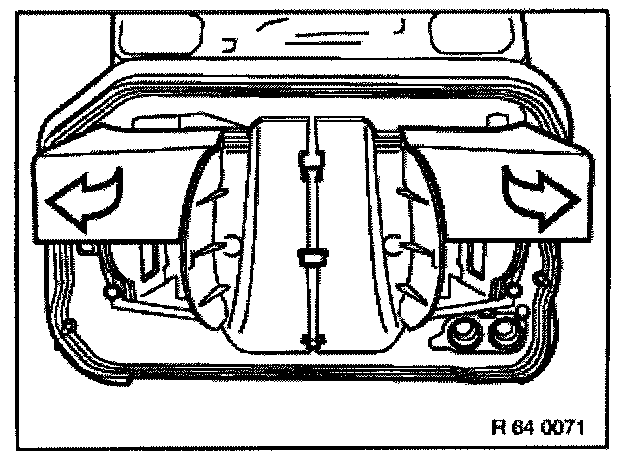

- Unclip splash guard left and right.





- Loosen clips and screws and take off blower cover.





- Disconnect plug-in connection and loosen clip.





- Pull up cable and lift out blower.
