Blower Motor Resistor: Service and Repair

Replacing Resistance For Fan On Heater/Air Conditioner (compact)

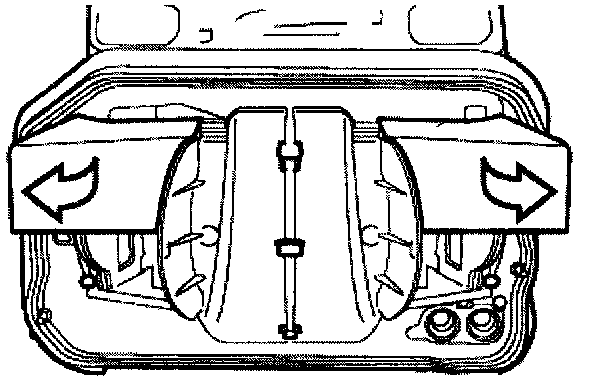

- Pull off rubber part and pry out grill.





- Remove screws from cable channel.





- Remove screws on right-hand side and take off holder.





- Remove screw on left side and pull out air collector in upwards direction.

Note: Air collector will be difficult to pull out.




- Unclip splash guard on the left.




- Pull off connectors. Loosen screw and lift out resistor.

Installation:
Align resistor with guiding pin and screw tight.
