Central Control Module
>>
ZKE Power Windows (FH)
>>
Output Details
Output Details

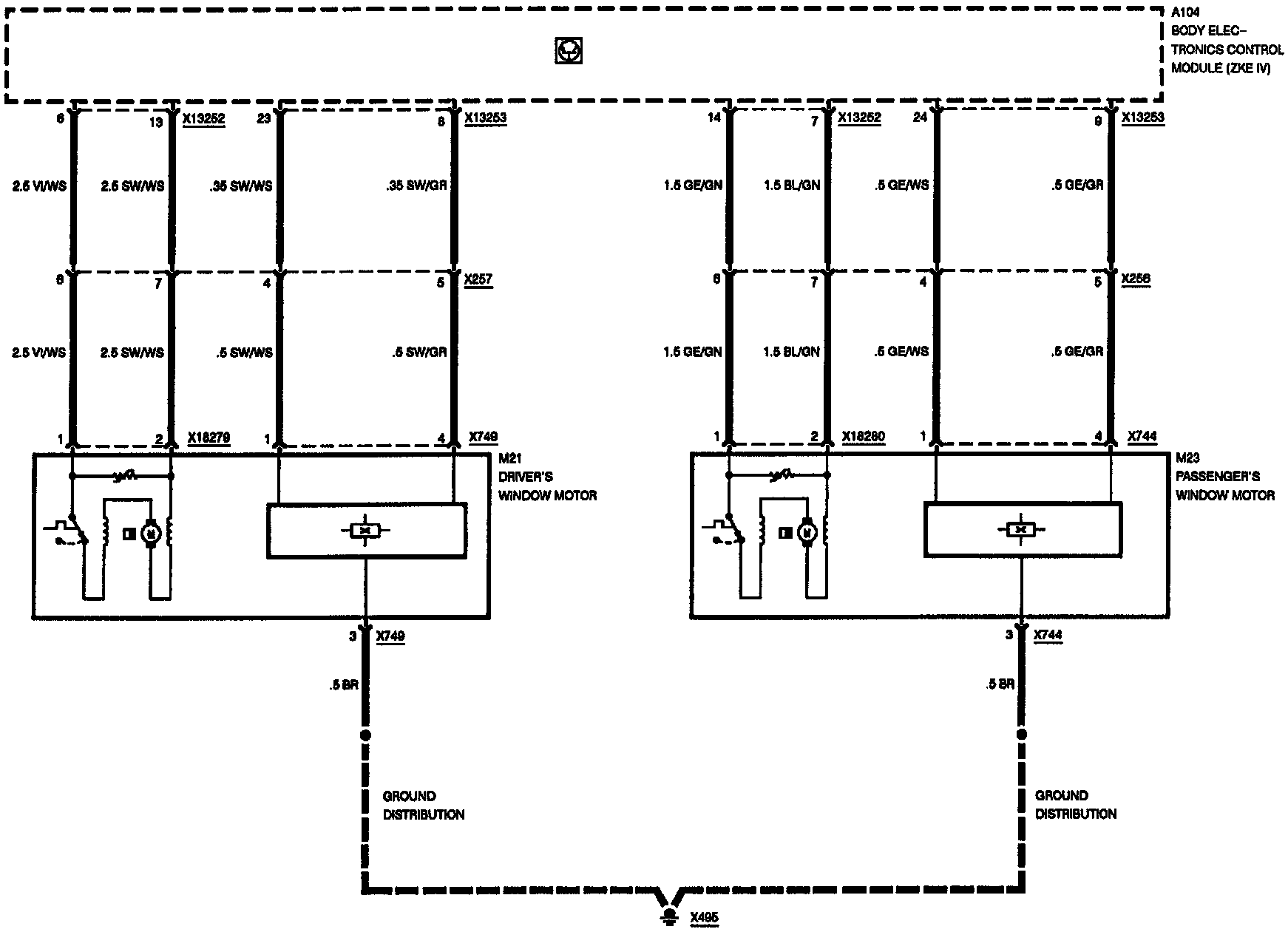

Power Windows (FH): Output Details:

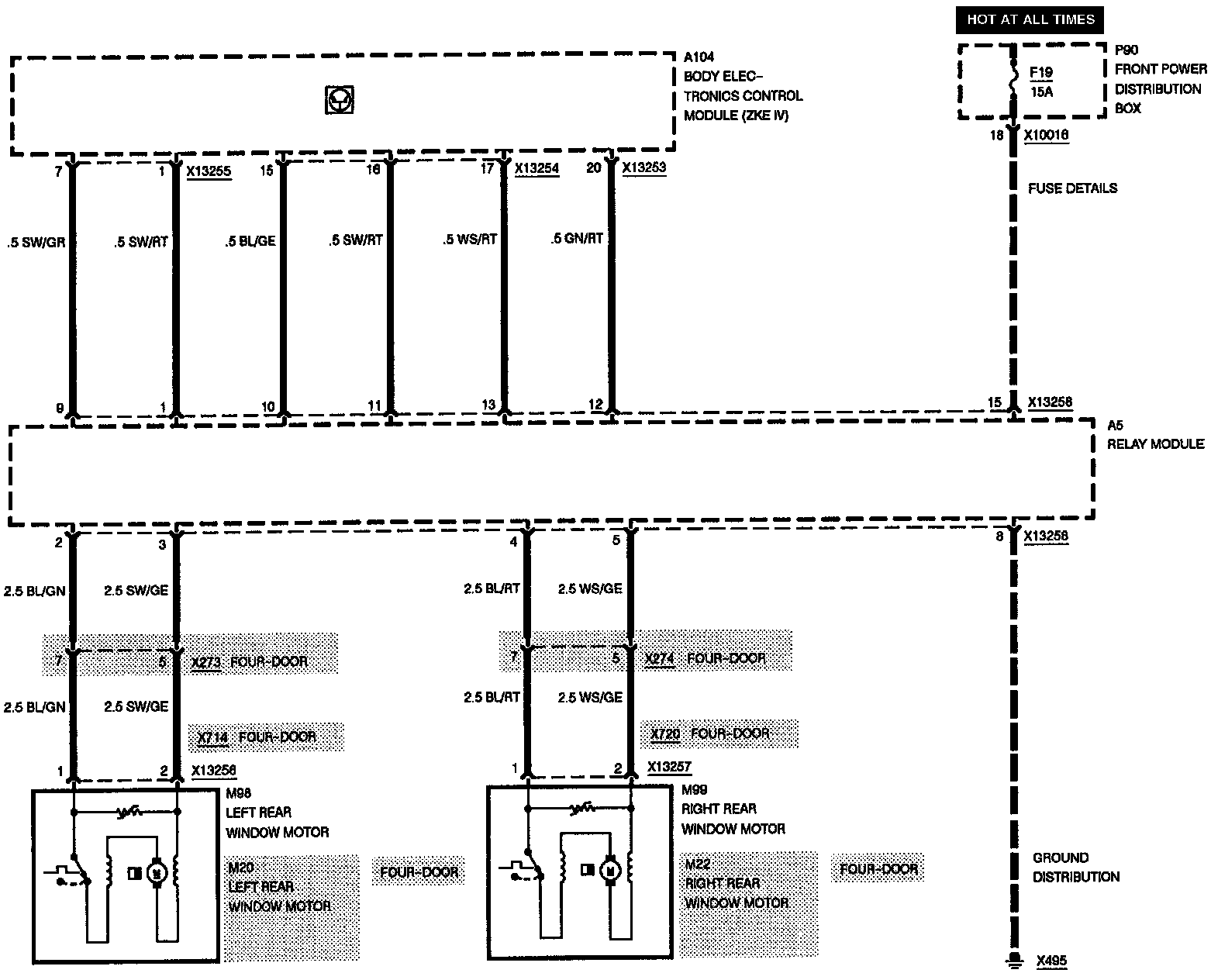

Power Windows (FH): Output Details:
