Home
>>
BMW
>>
1994
>>
850Ci (E31) V12-4988cc 5.0L SOHC (M70)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Relay Module
>>
General Module
General Module

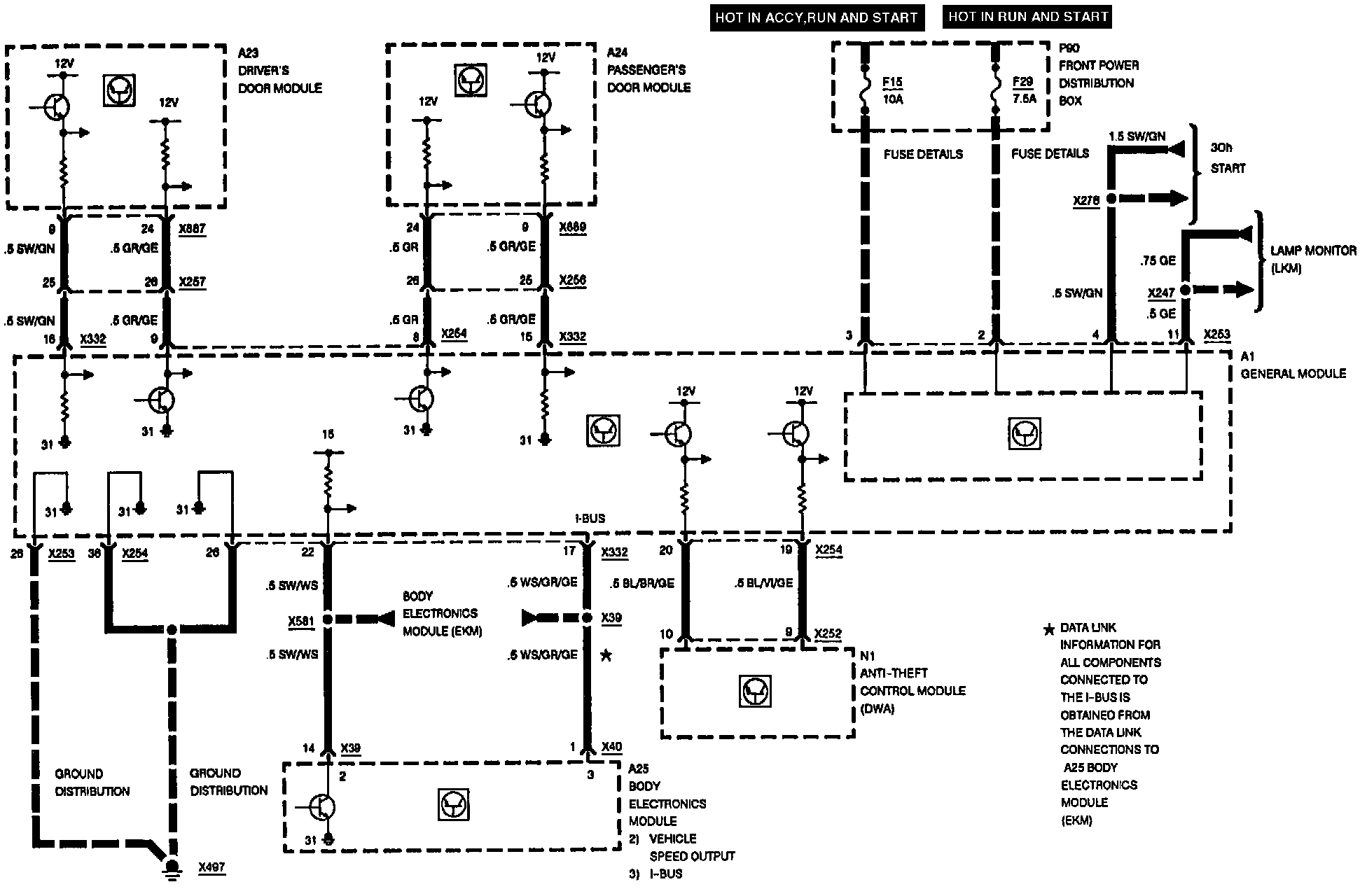

Central Body Electronics (ZKE II): General Module:
