Home >> BMW >> 1994 >> 850CSi (E31) V12-5577cc 5.6L SOHC (S70) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Block Diagram

Block Diagram

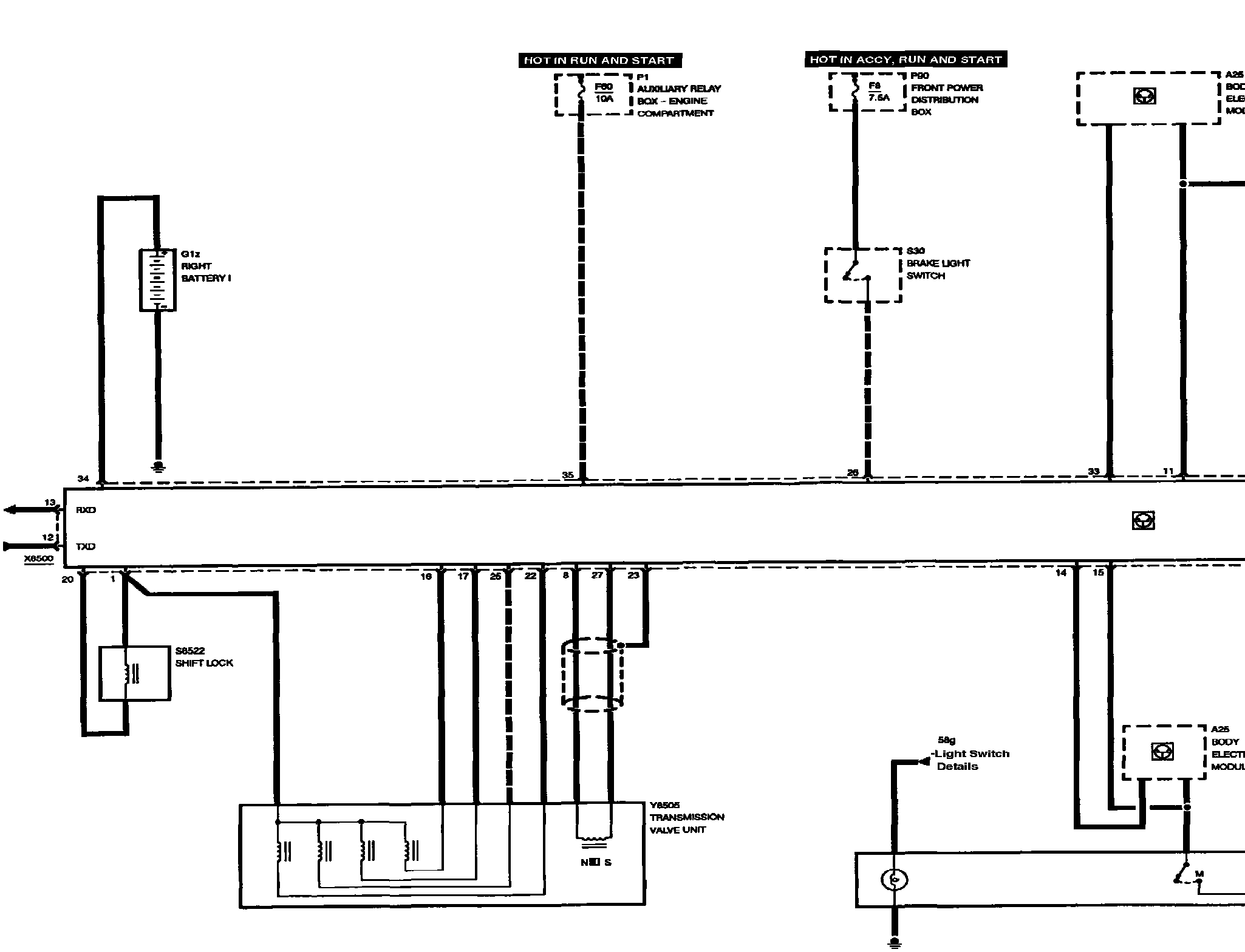

�c Electronic Transmission Control (EGS 4HP-24): Block Diagram:
