Checking Oil Level In Automatic Transmission

Checking Oil Level In Automatic Transmission

Caution! Automatic transmission fluid refer to BMW Service Operating Fluids and/or label on transmission oil pan. Specifications




1. Topping up transmission after a repair:

Selector lever to setting "P".

The vehicle must be horizontal and should be secured to prevent it from rolling away.

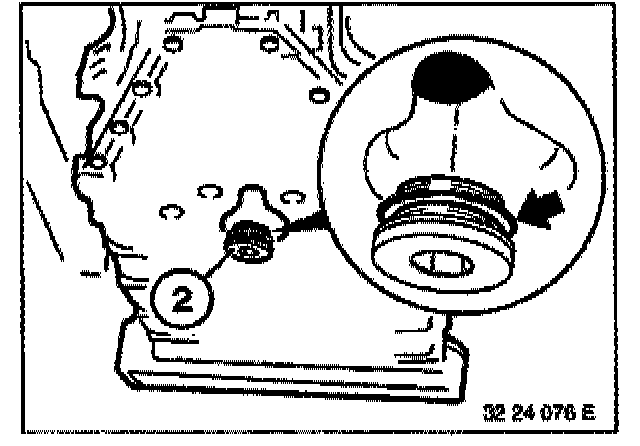

Unfasten filler screw (2).

Installation:
Replace sealing ring.

Tightening torque:
M16x1.5 50 Nm
M14 100 Nm

Top up automatic transmission until oil emerges at filler/overflow bore.

Start engine.

Top up automatic transmission until oil emerges at filler/overflow bore.

Screw in filler screw (2).

Operate brake and, with engine at idle speed, change up and down all gears several times.

Connect BMW Diagnosis and Information System (DIS) and/or BMW MoDiC to vehicle and perform oil level check in accordance with instructions.

2. Checking oil level:

Connect BMW Diagnosis and Information System (DIS) and/or BMW MoDiC to vehicle and perform oil level check in accordance with instructions.
