Pin Assignments

Connector Views:

X8500 CONNECTOR (88-PINS)
X8600 CONNECTOR (55-PINS)

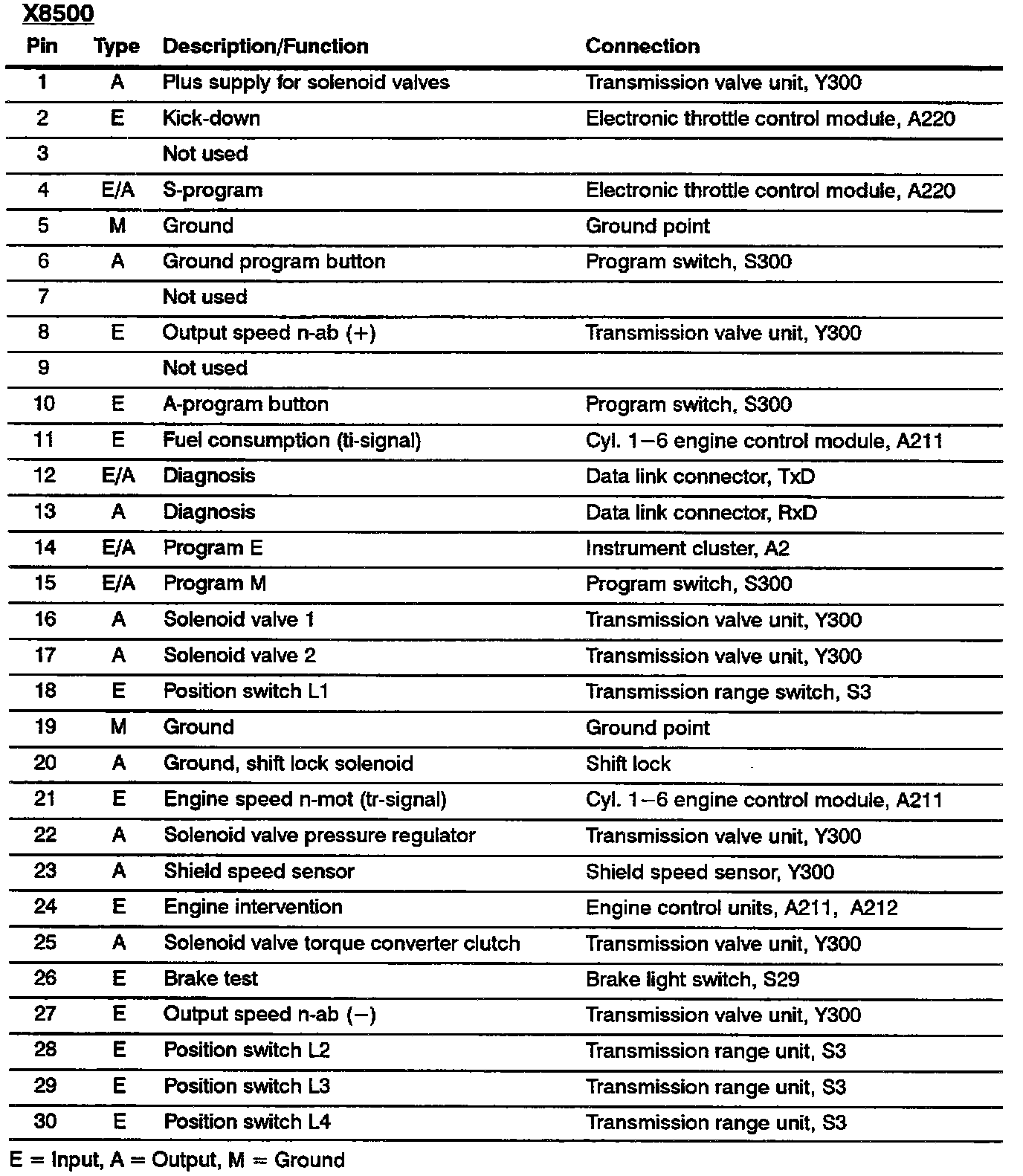

Electronic Transmission Control: Pin Assignments (Part 1 Of 2):

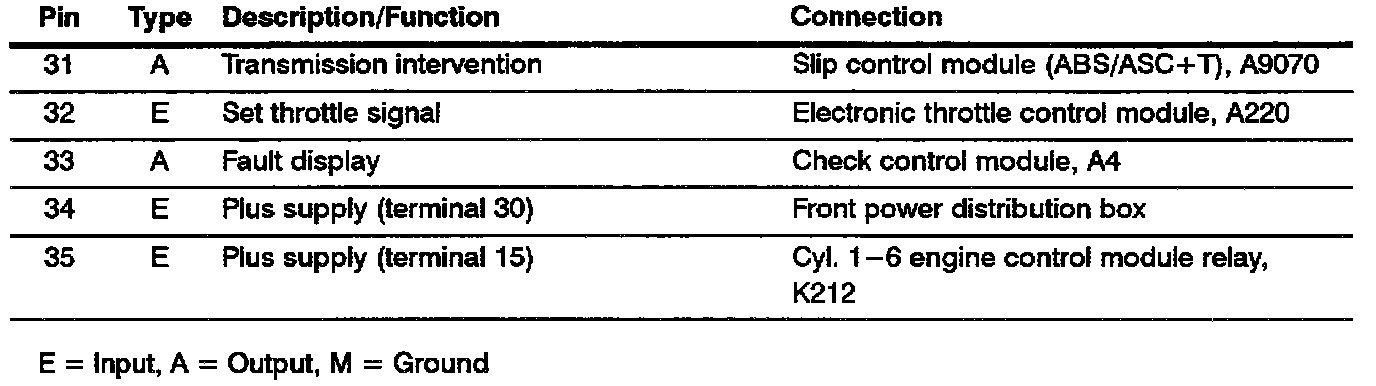

Electronic Transmission Control: Pin Assignments (Part 2 Of 2):

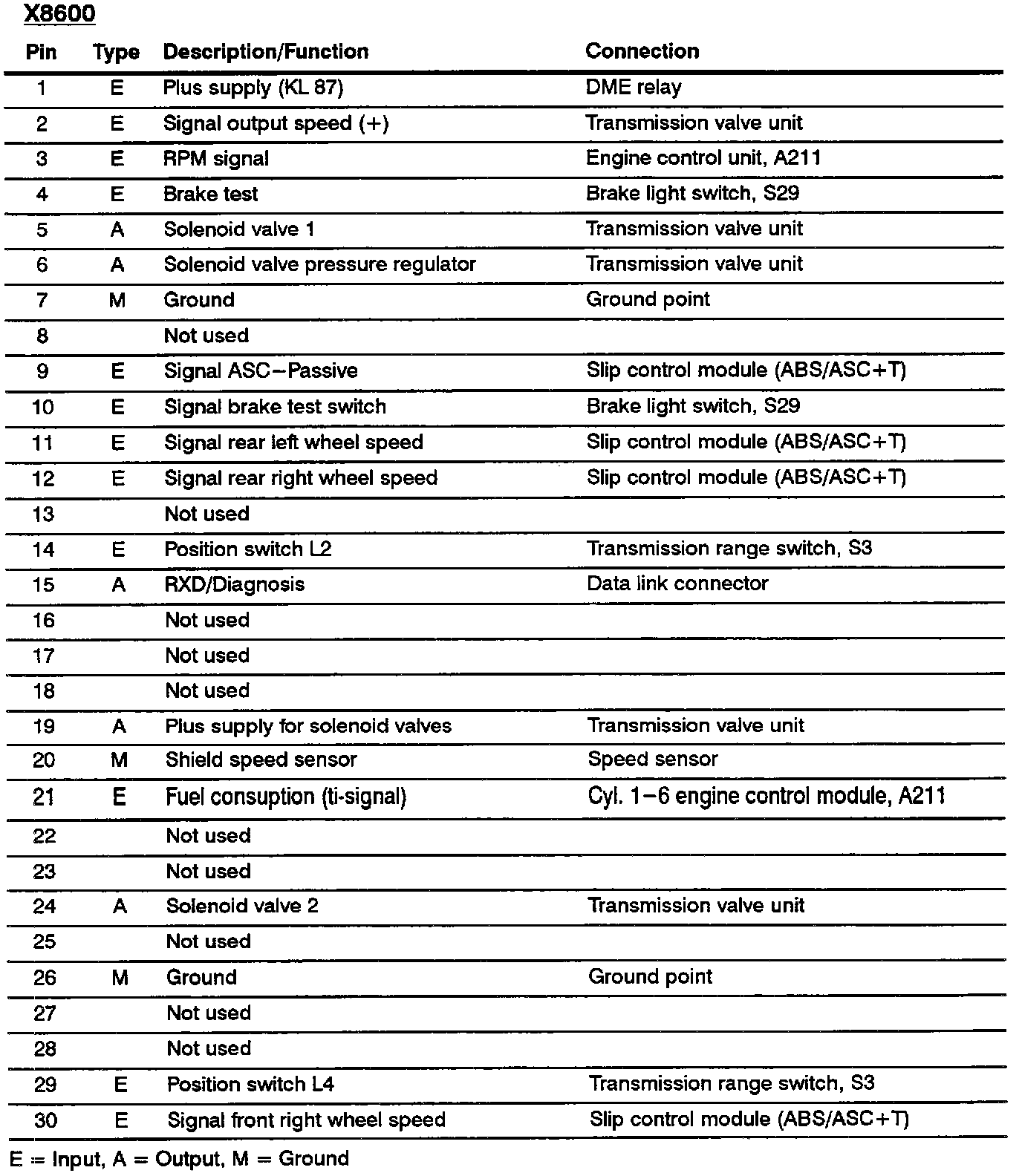

Electronic Transmission Control: Pin Assignments (Part 1 Of 2):

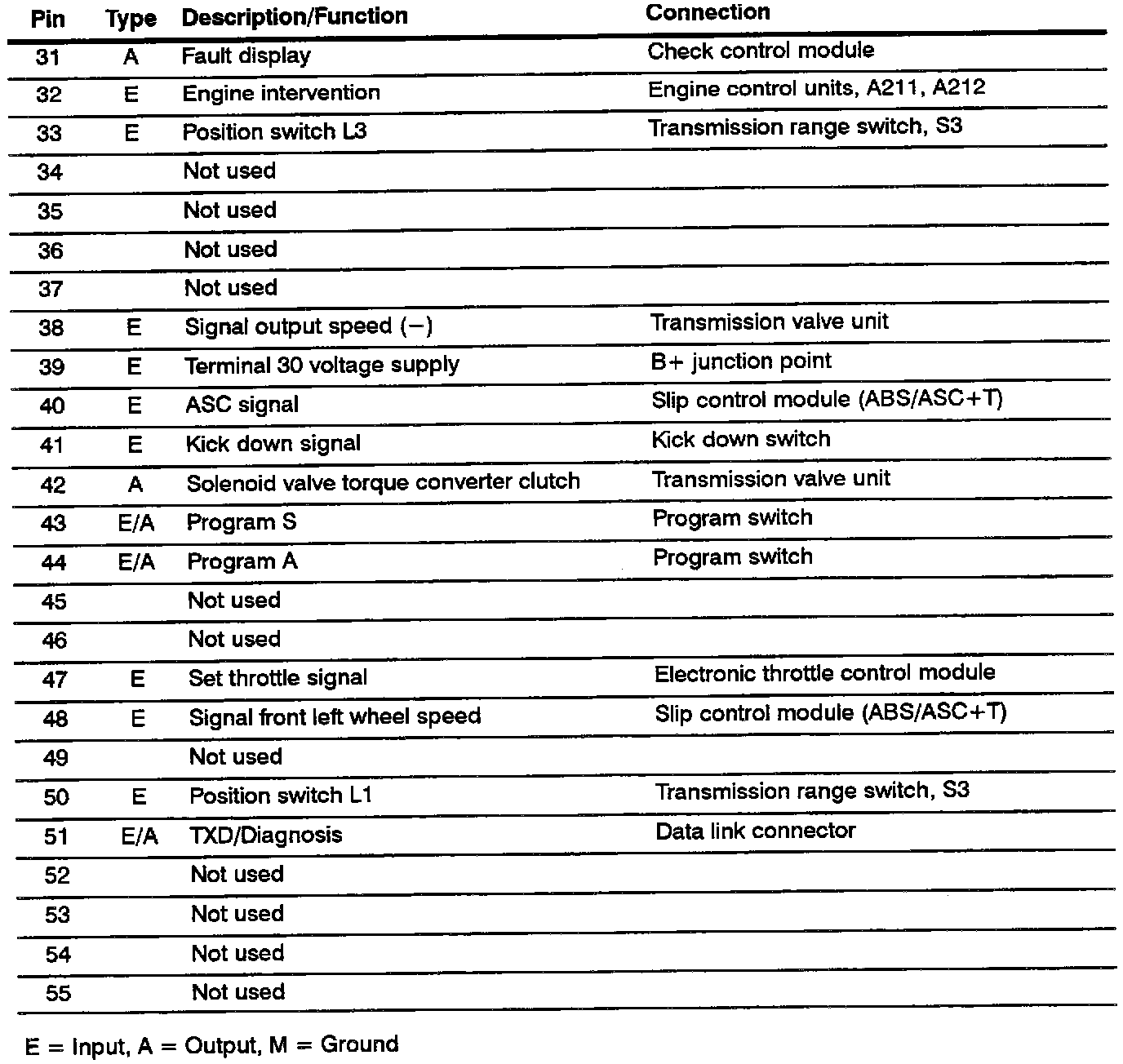

Electronic Transmission Control: Pin Assignments (Part 2 Of 2):
