Home >> BMW >> 1994 >> 740iL (E32/2) V8-3982cc 4.0L DOHC (M60) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Ground Distribution >> Canada >> Ground X8508, X18170, X18287

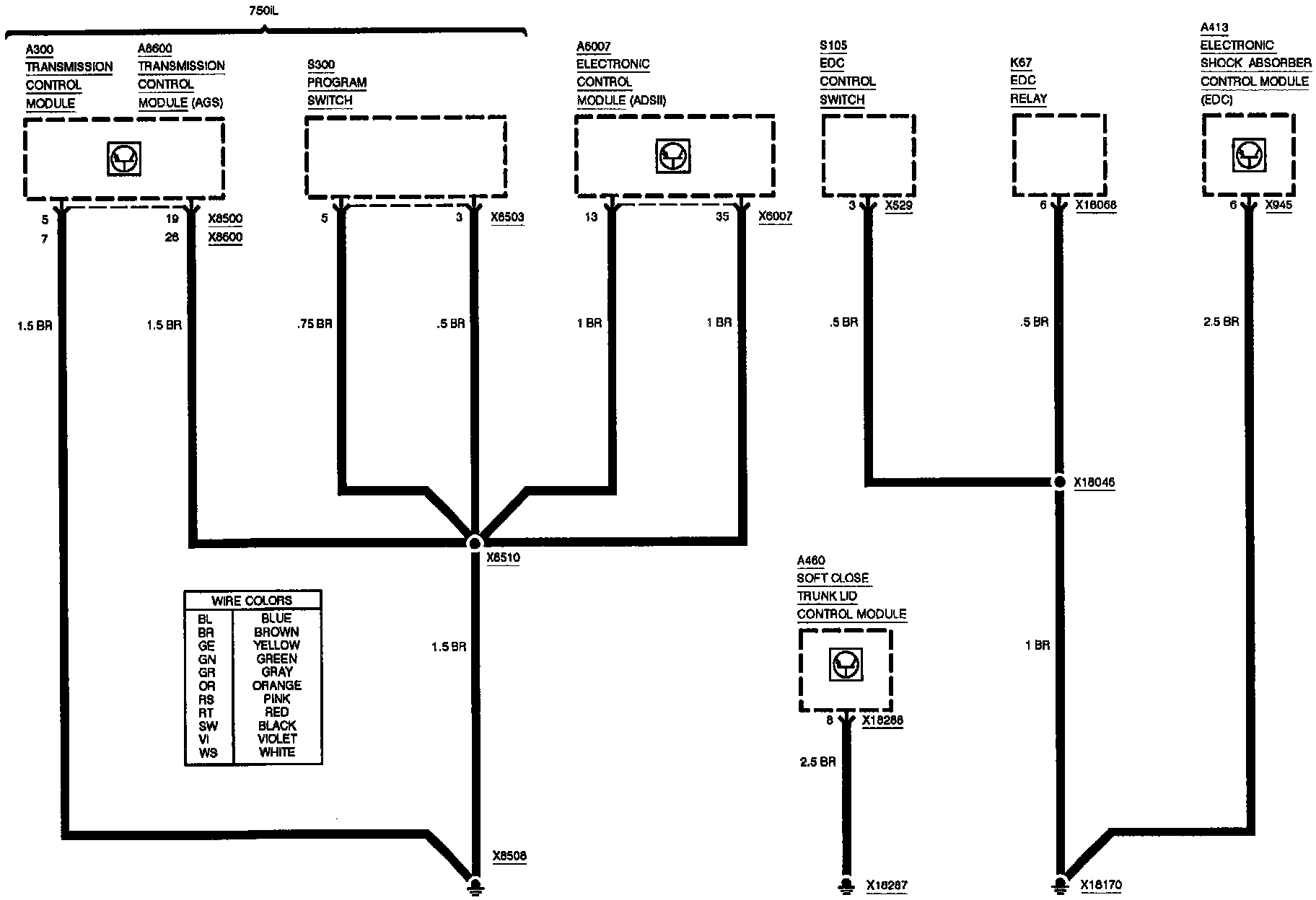

Ground X8508, X18170, X18287

Ground Distribution: Ground X8508, X18170, X18287:
