Home >> BMW >> 1994 >> 740iL (E32/2) V8-3982cc 4.0L DOHC (M60) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Fuse Information >> Fuse Details >> Fuse 16

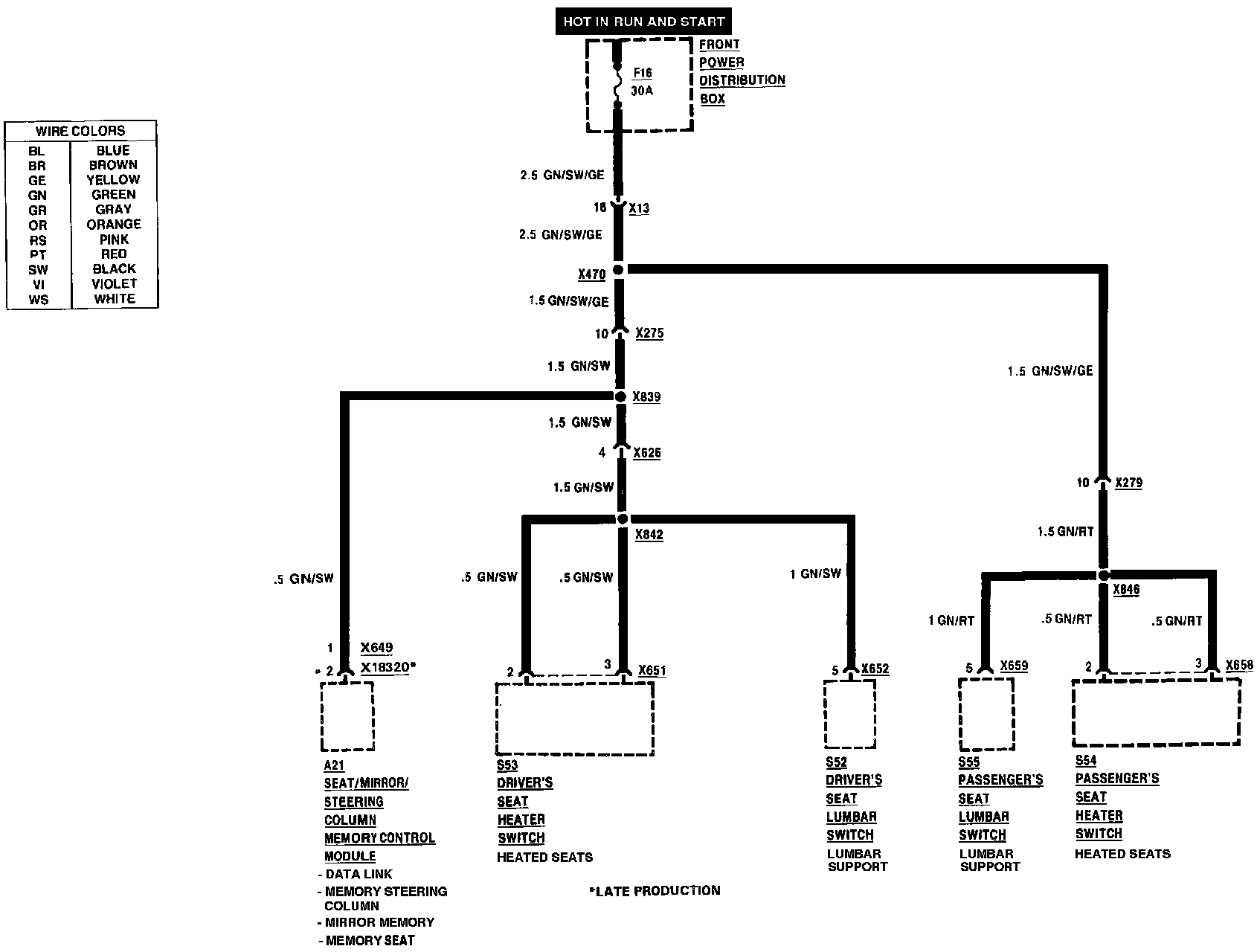

Fuse 16

Fuse Details: Fuse 16:
