Data Link Connector (X6002)
>>
Data Link Connectors Pin 11
Data Link Connectors Pin 11

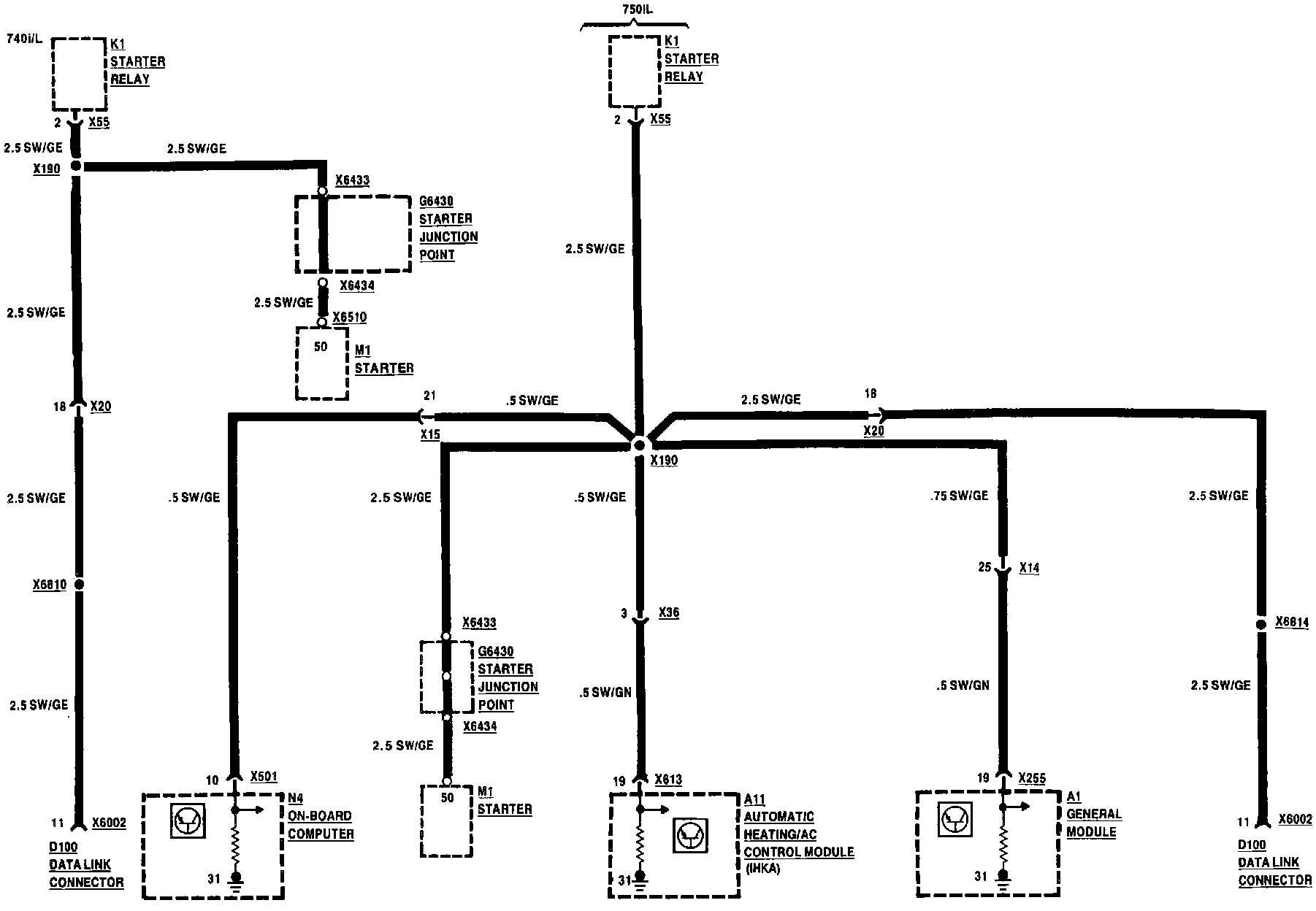

Data Link: Data Link Connector Pin 11:
