Temperature Sensor

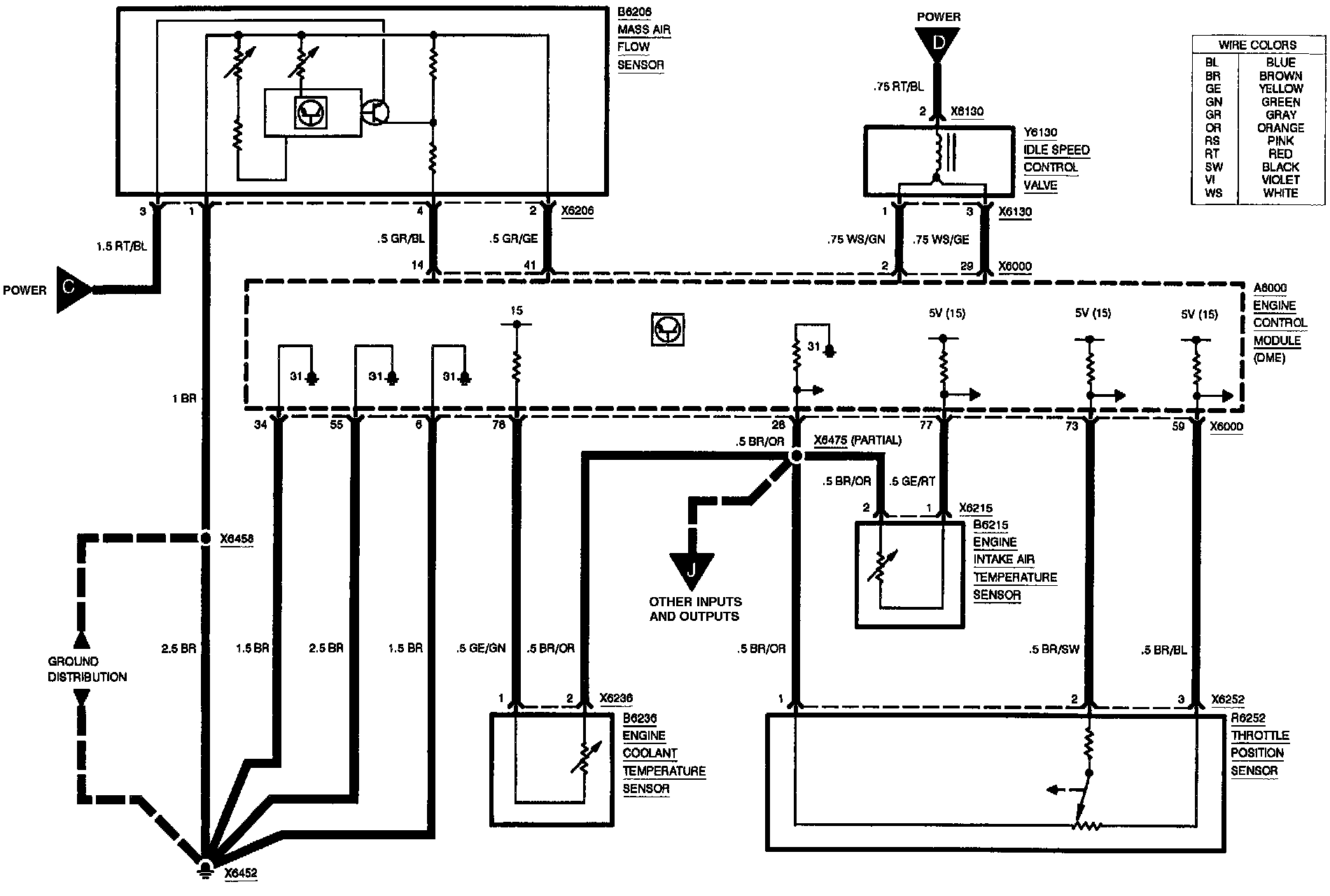

Engine Control System: Throttle Position Sensor, Idle Speed Control Valve And Temperature:
