740iL (E32/2) V8-3982cc 4.0L DOHC (M60)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Central Electronics Box
Central Electronics Box

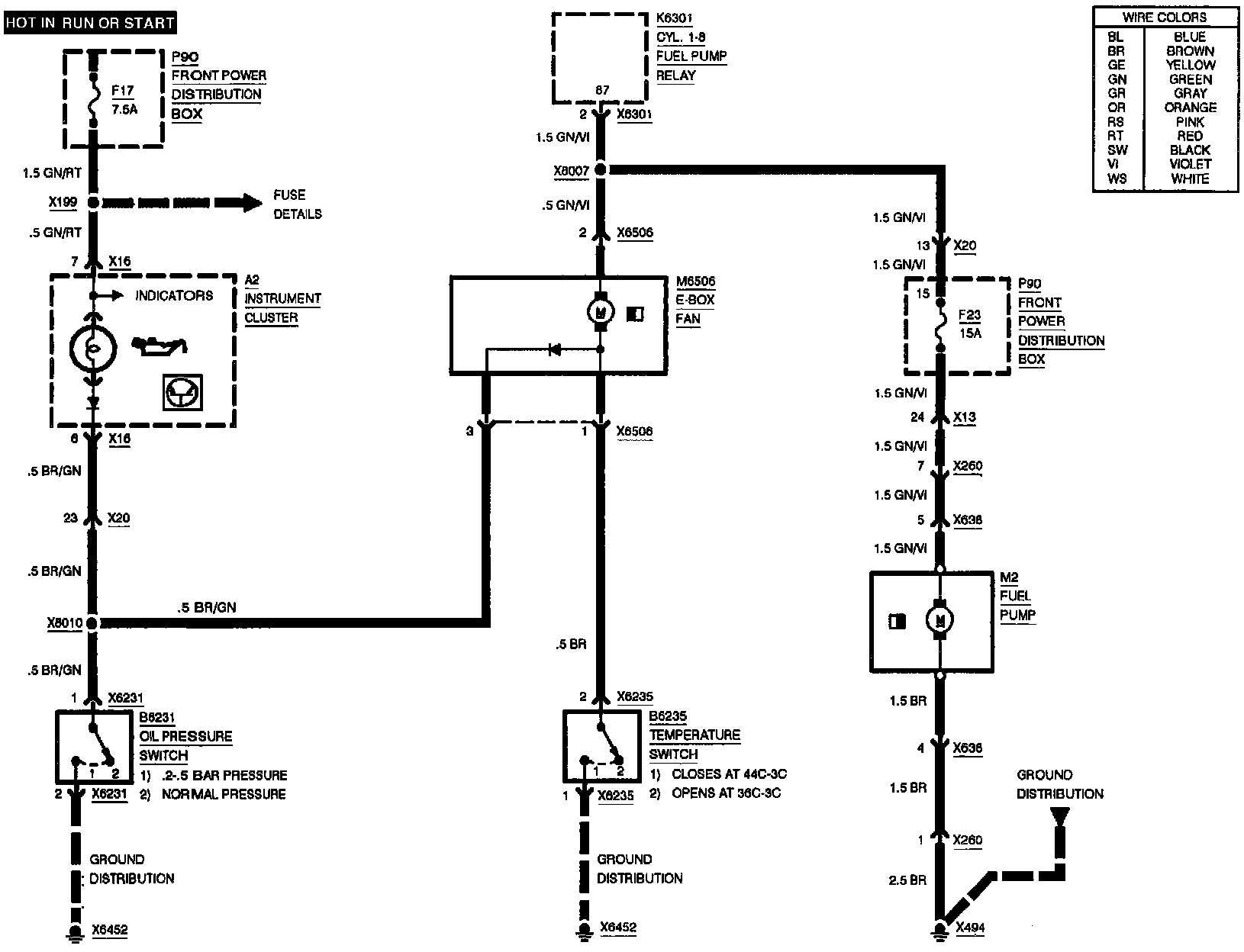

E-Box Fan (Part 1 Of 2):
