Home
>>
BMW
>>
1994
>>
740iL (E32/2) V8-3982cc 4.0L DOHC (M60)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Automatic and/or Regulated Climate Control (IHKR/IHKA)
>>
Front Window Defogger
Front Window Defogger

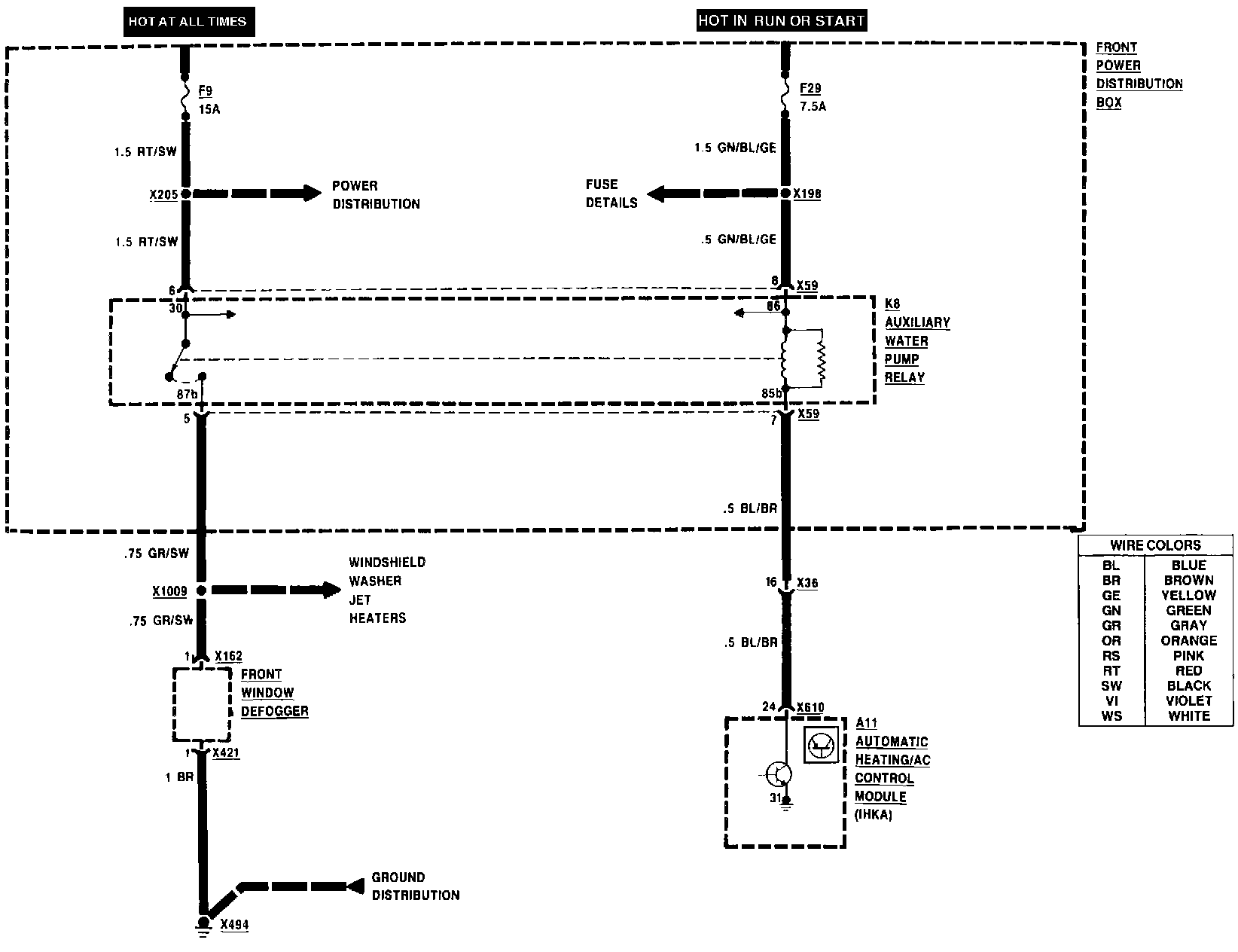

Automatic Heating/AC Control (IHKA): Front Window Defogger:
