740iL (E32/2) V8-3982cc 4.0L DOHC (M60)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
General Module
>>
General Module
General Module

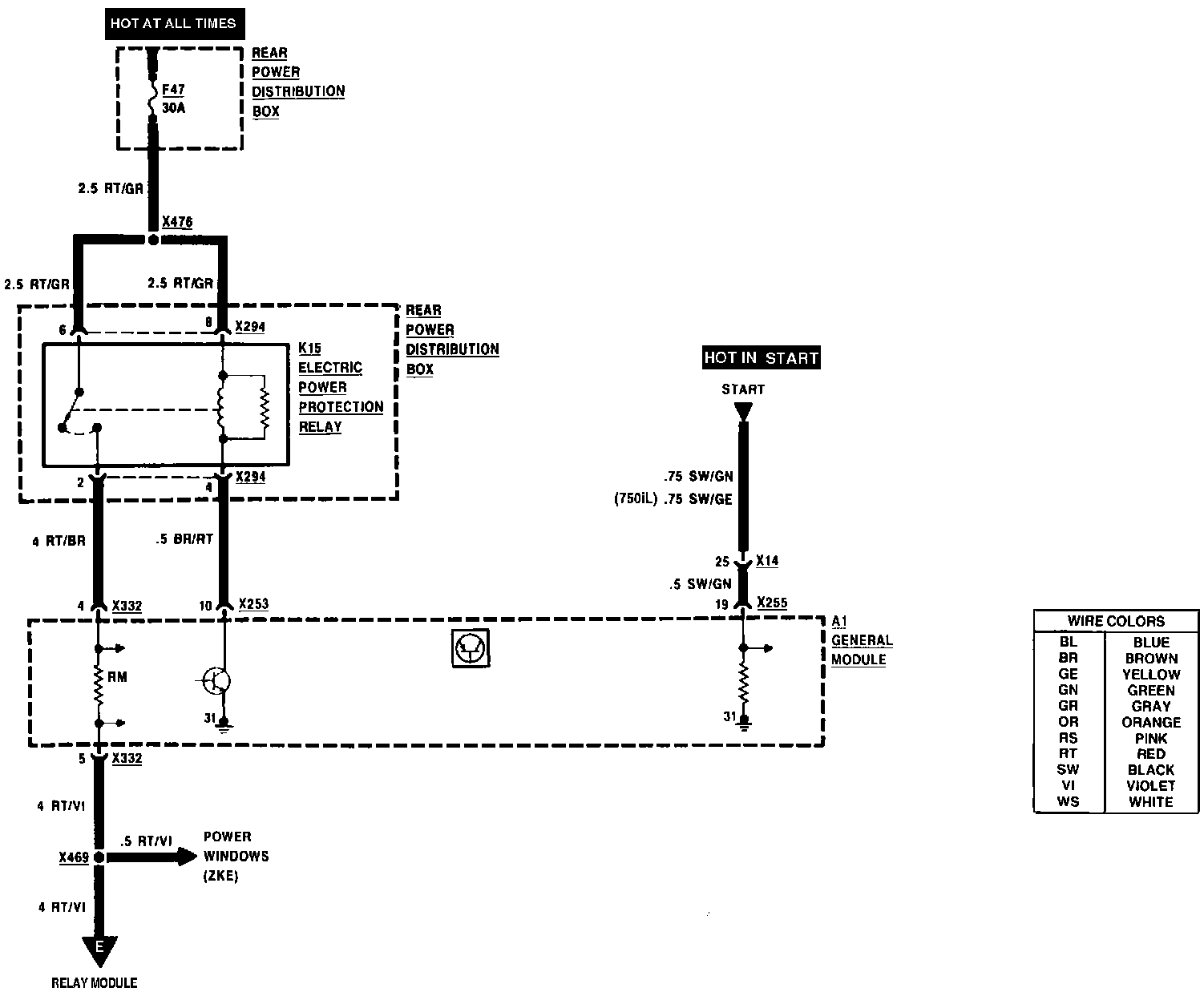

Central Body Electronics (ZKE): General Module (Part 1 Of 2):
Central Body Electronics (ZKE): General Module (Part 2 Of 2):
