Central Control Module
>>
Pin Assignment
>>

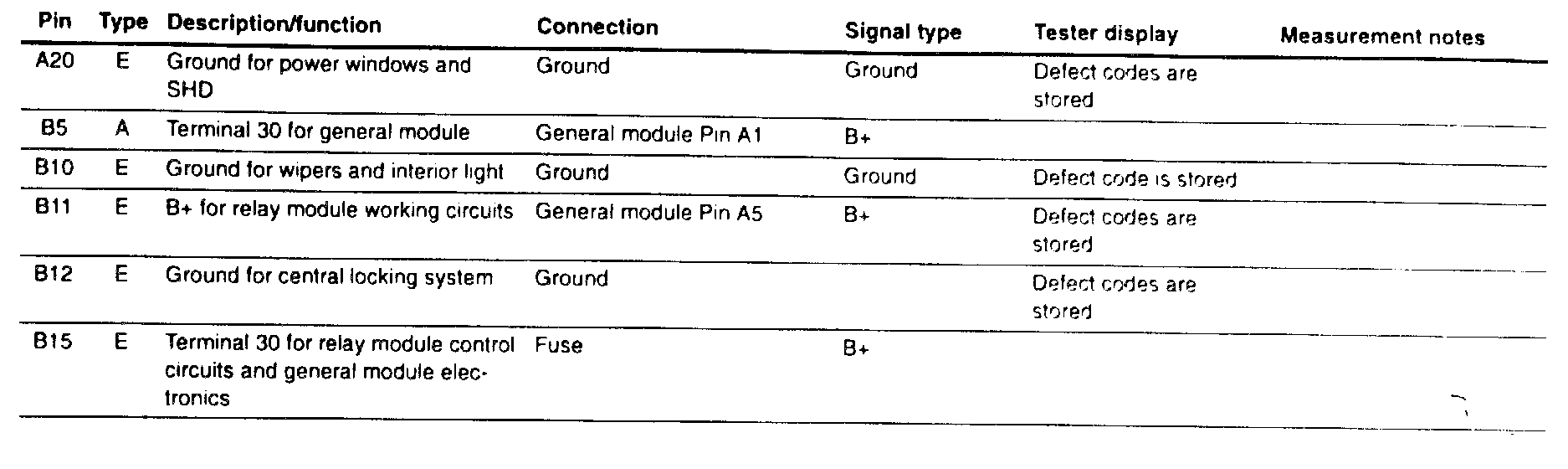

Pin Assignments At Relay Module
Pin Assignments At Relay Module
