Turbine Speed Sensor

REPLACING PULSE SENDER FOR TURBINE SPEED
- Remove transmission oil pan. Service and Repair
- Remove valve body. Service and Repair

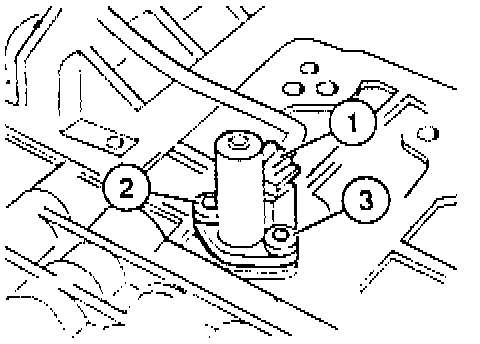

- Pull off plug (1).
- Unscrew screws (2 and 3).
- Lift off pulse sender.
- Reinstall in reverse order.
- Tightening to 3.7 ftlbs. (5 Nm).
