Home
>>
BMW
>>
1994
>>
525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Central Control Module
>>
Drive-Away Protection
Drive-Away Protection

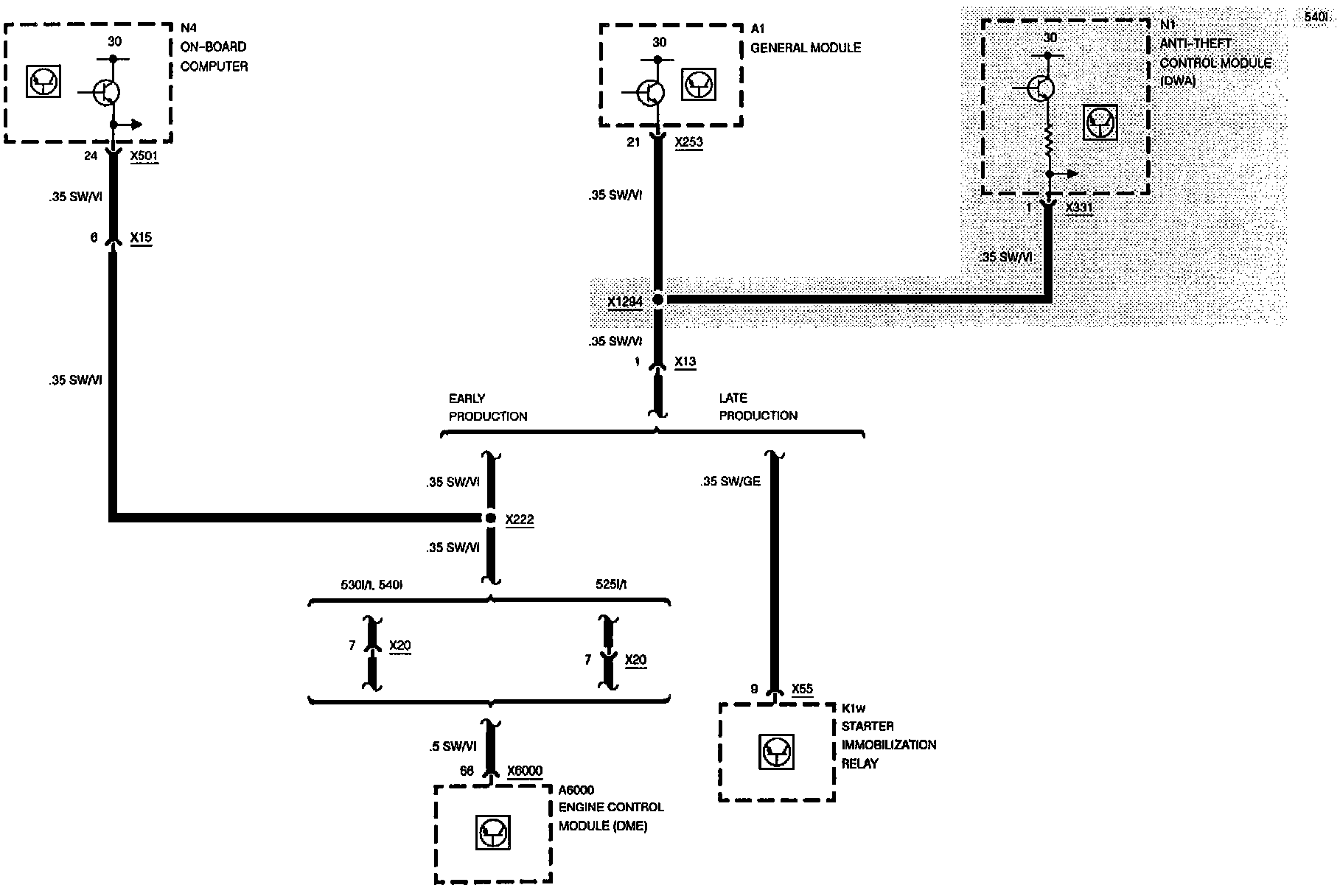

Central Body Electronics: Drive-Away Protection:
