Housing Assembly

IHKR1 HOUSING ASSEMBLY

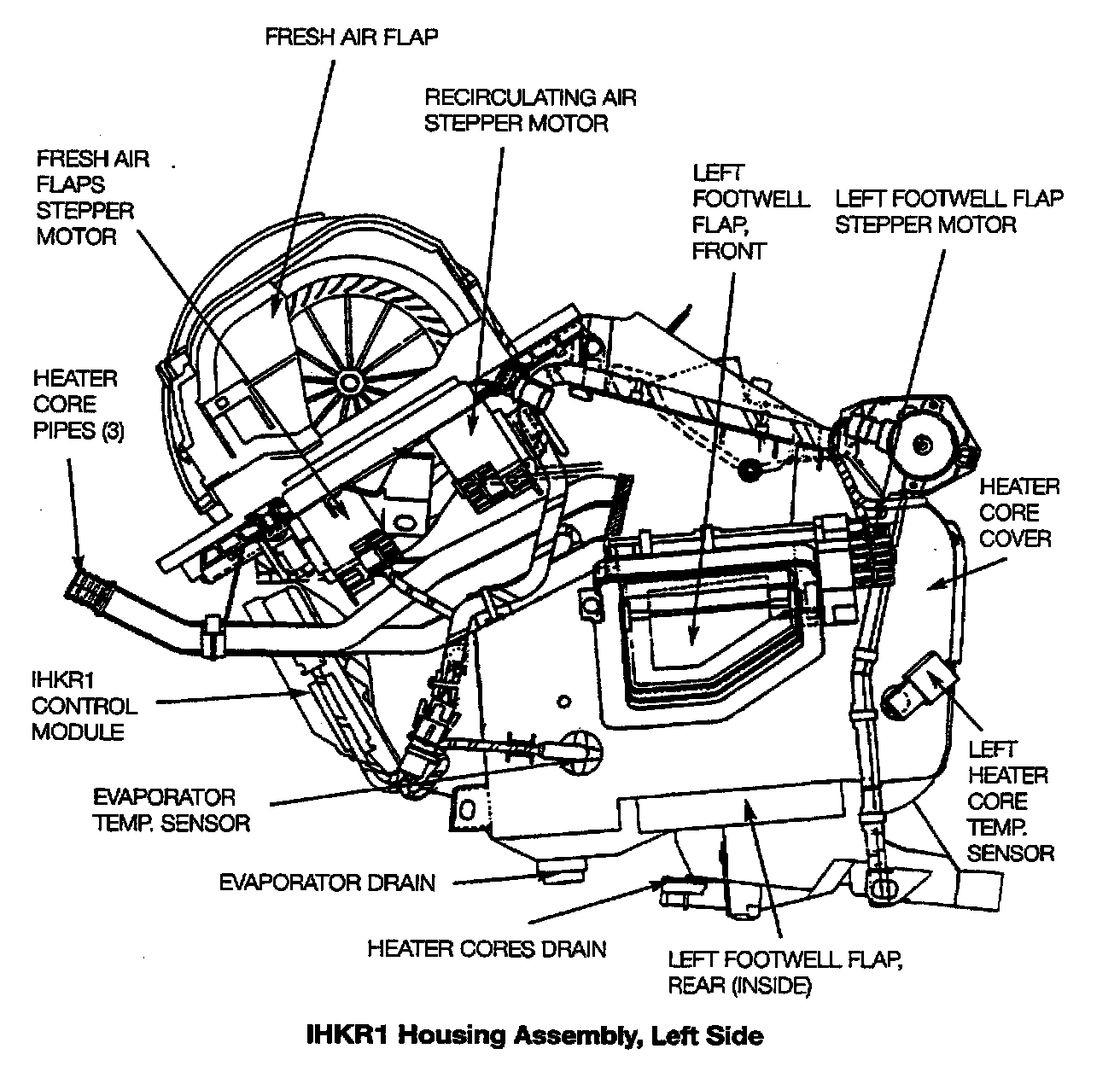

IHKR1 HOUSING ASSEMBLY, LEFT SIDE







The housing assembly is located behind the center of the instrument panel. Most of the climate control system components are mounted inside or on the housing as shown.

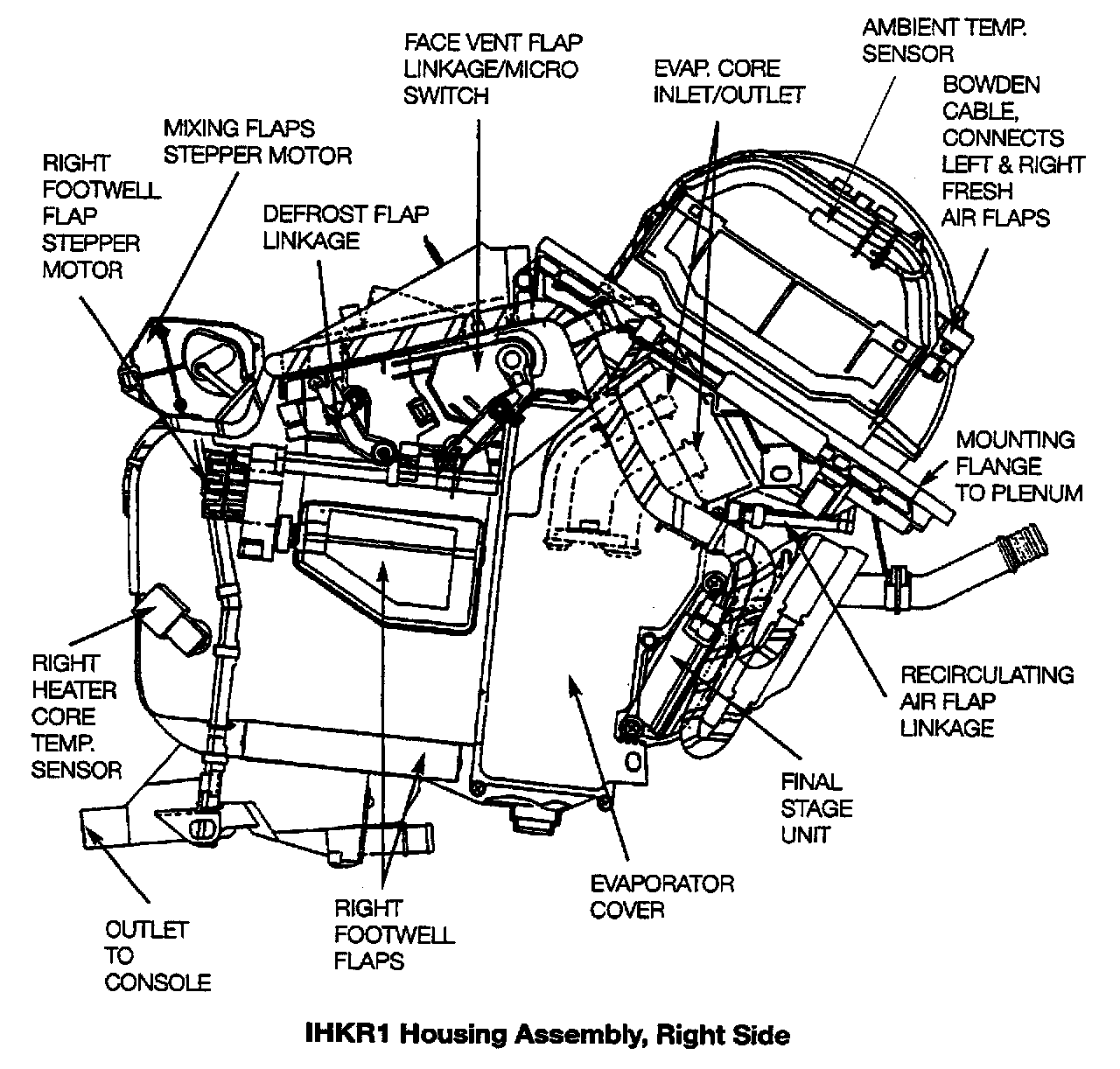

IHKR1 HOUSING ASSEMBLY, RIGHT SIDE
