Home
>>
BMW
>>
1994
>>
525i (E34) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trip Computer
>>
On-Board Computer (BCIV)
>>
Chime Module
Chime Module

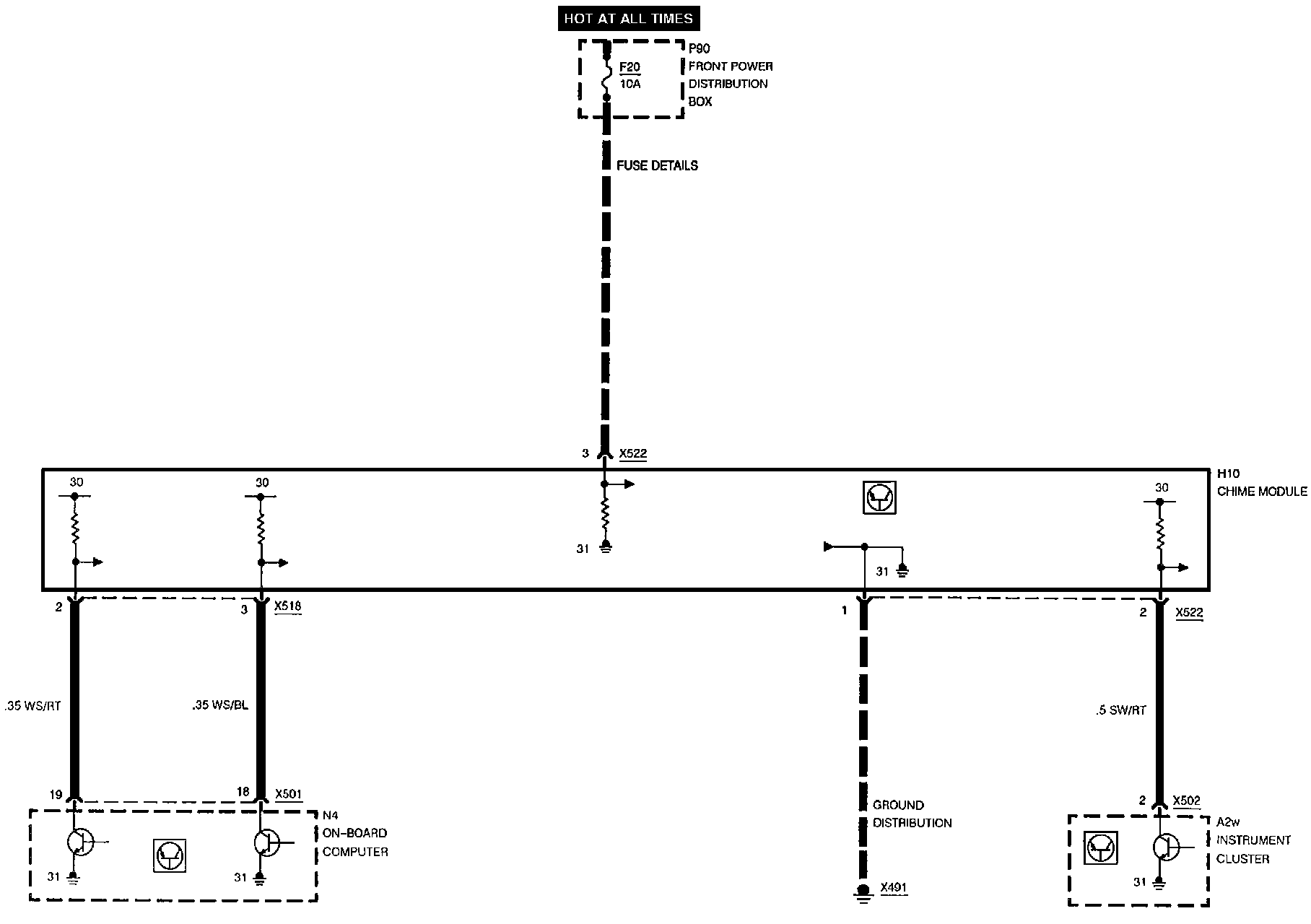

On-Board Computer: Chime Module:
