Home
>>
BMW
>>
1994
>>
525i (E34) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
>>
Slip Control (ABS)
>>
Version A
>>
Slip Control (ABS)
Slip Control (ABS)

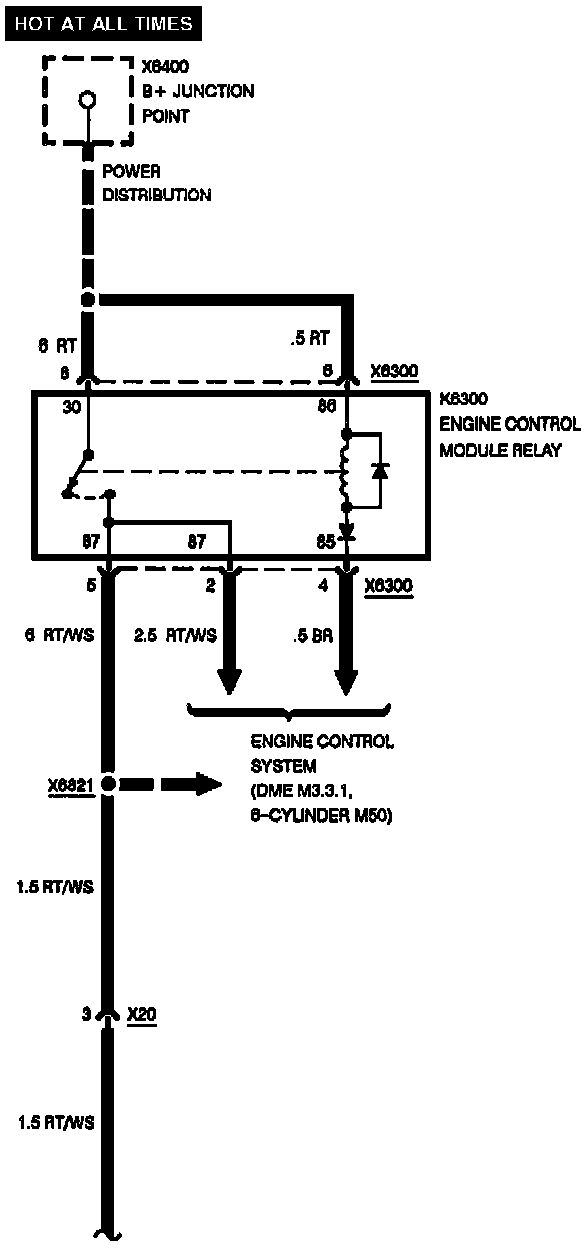

Slip Control (ABS) (Part 1 Of 4):

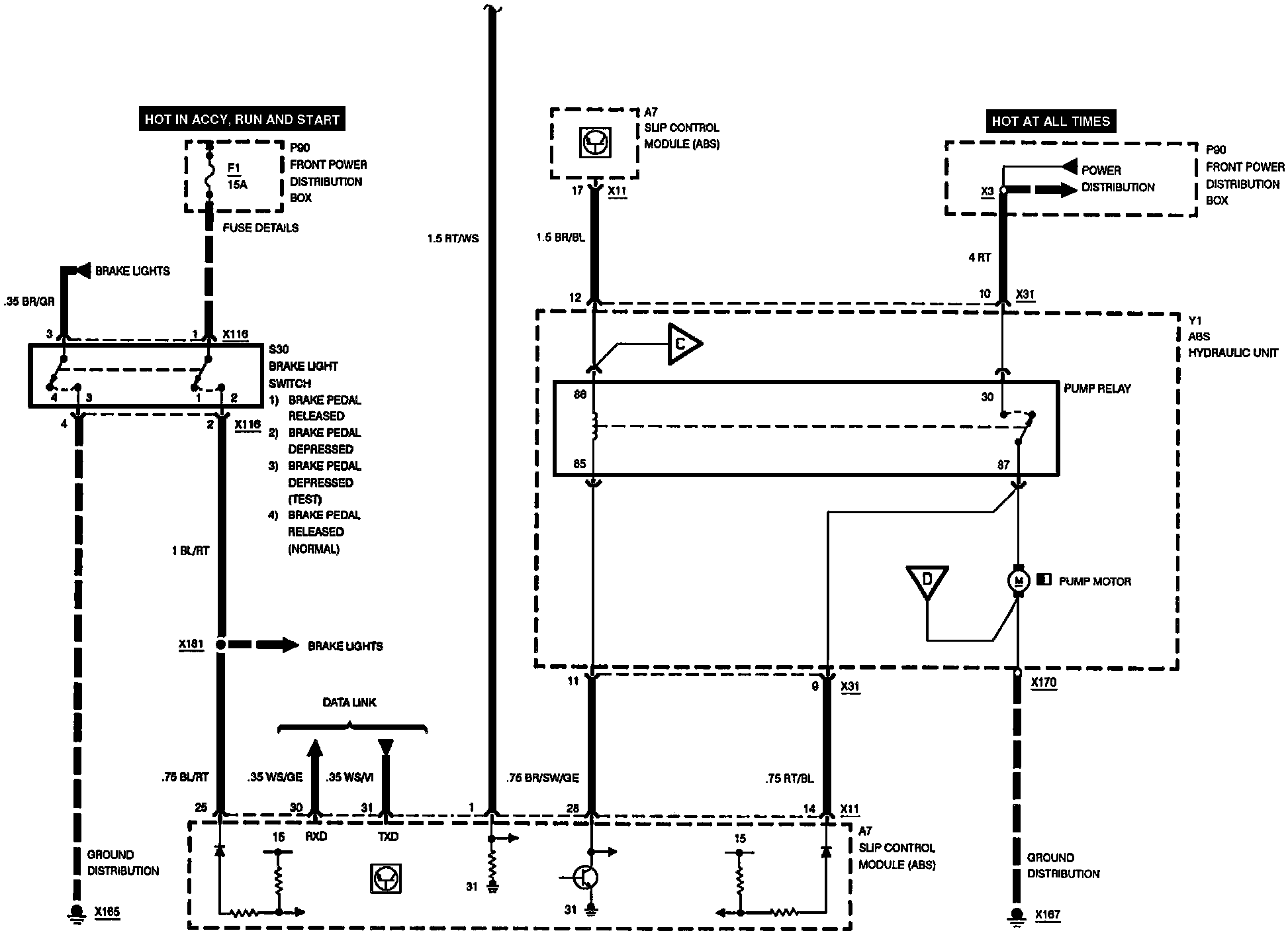

Slip Control (ABS) (Part 2 Of 4):

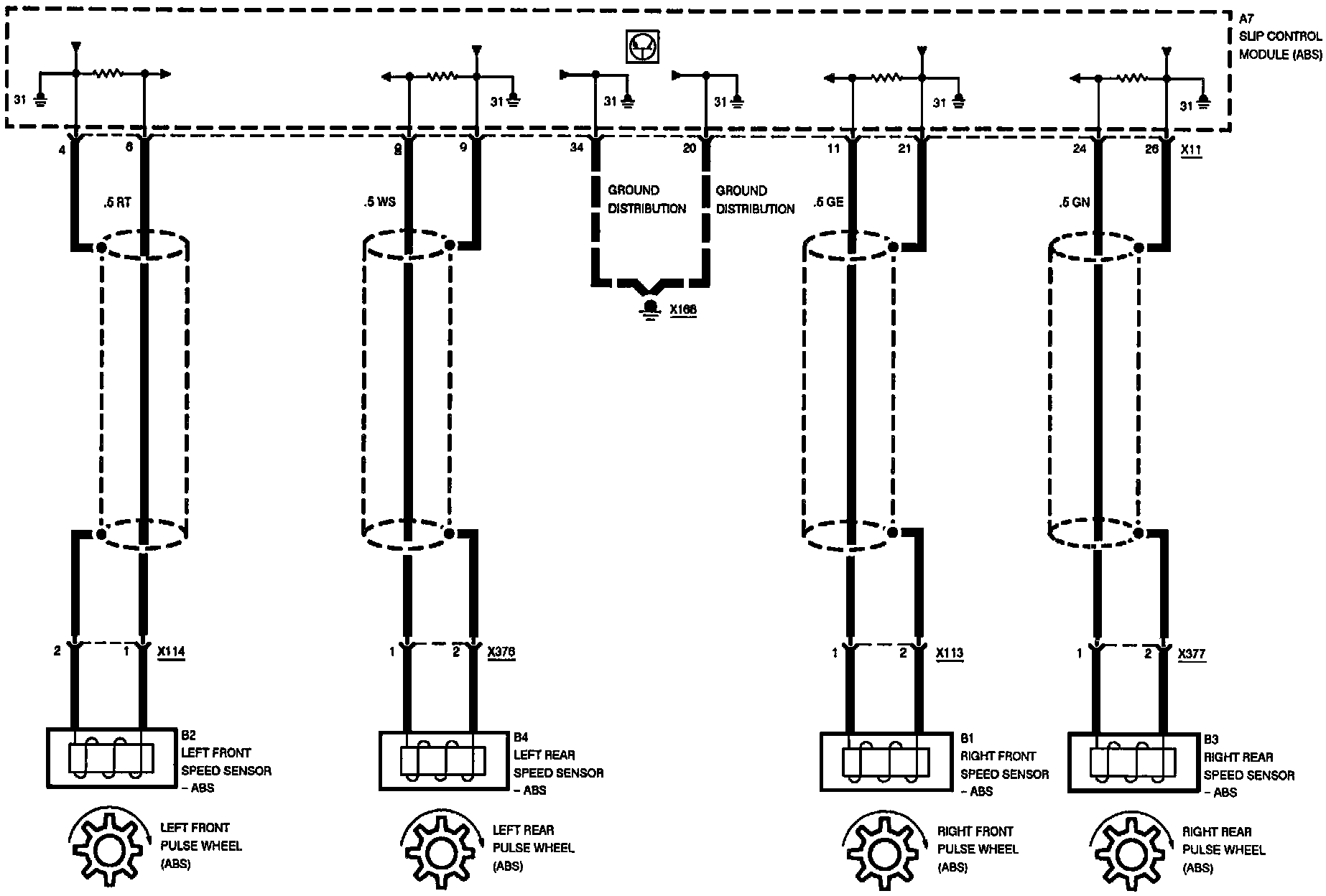

Slip Control (ABS) (Part 3 Of 4):

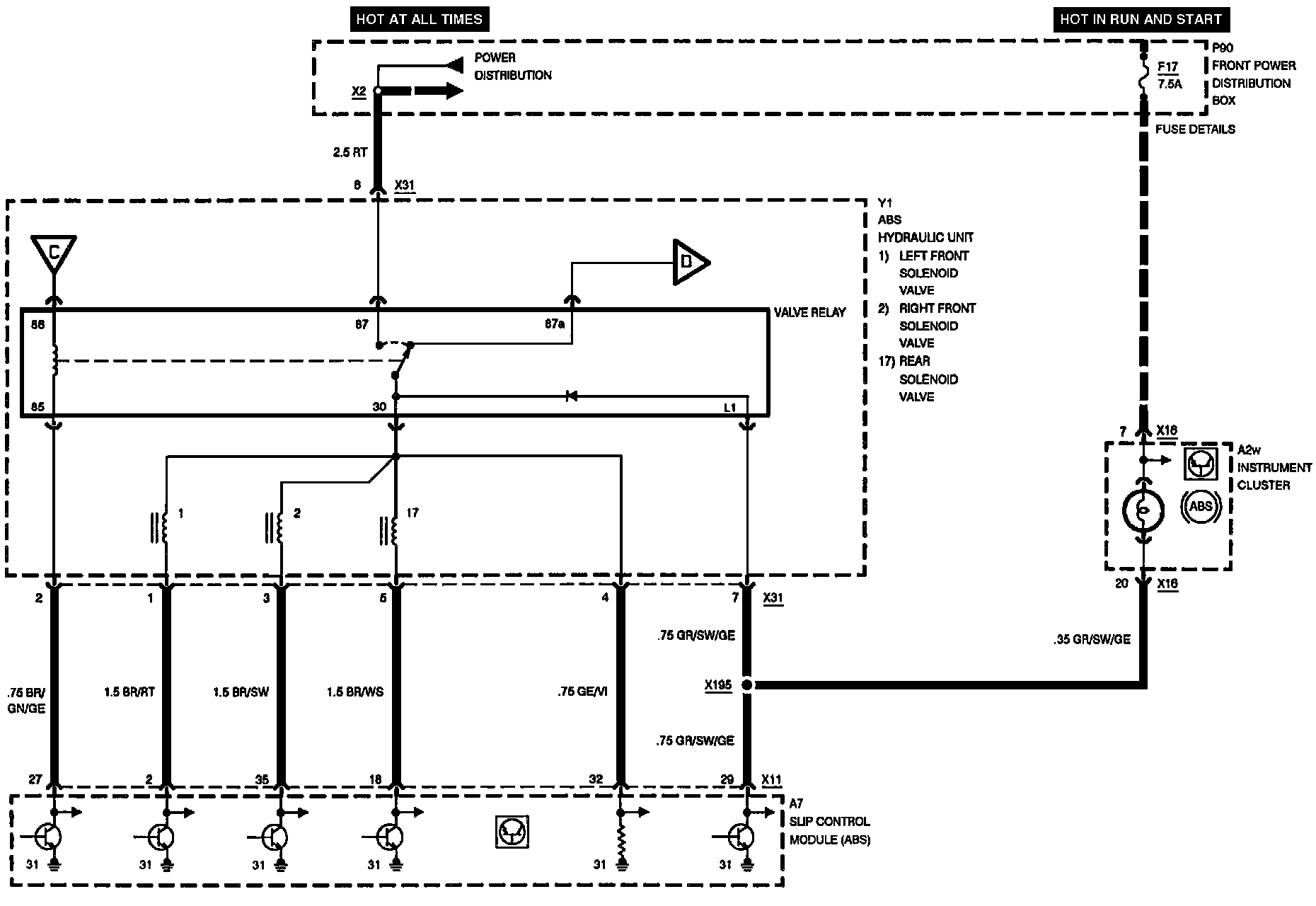

Slip Control (ABS) (Part 4 Of 4):
