BMW
>>
1994
>>
318is (E36) L4-1796cc 1.8L DOHC (M42)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Gear Valve Unit
Gear Valve Unit

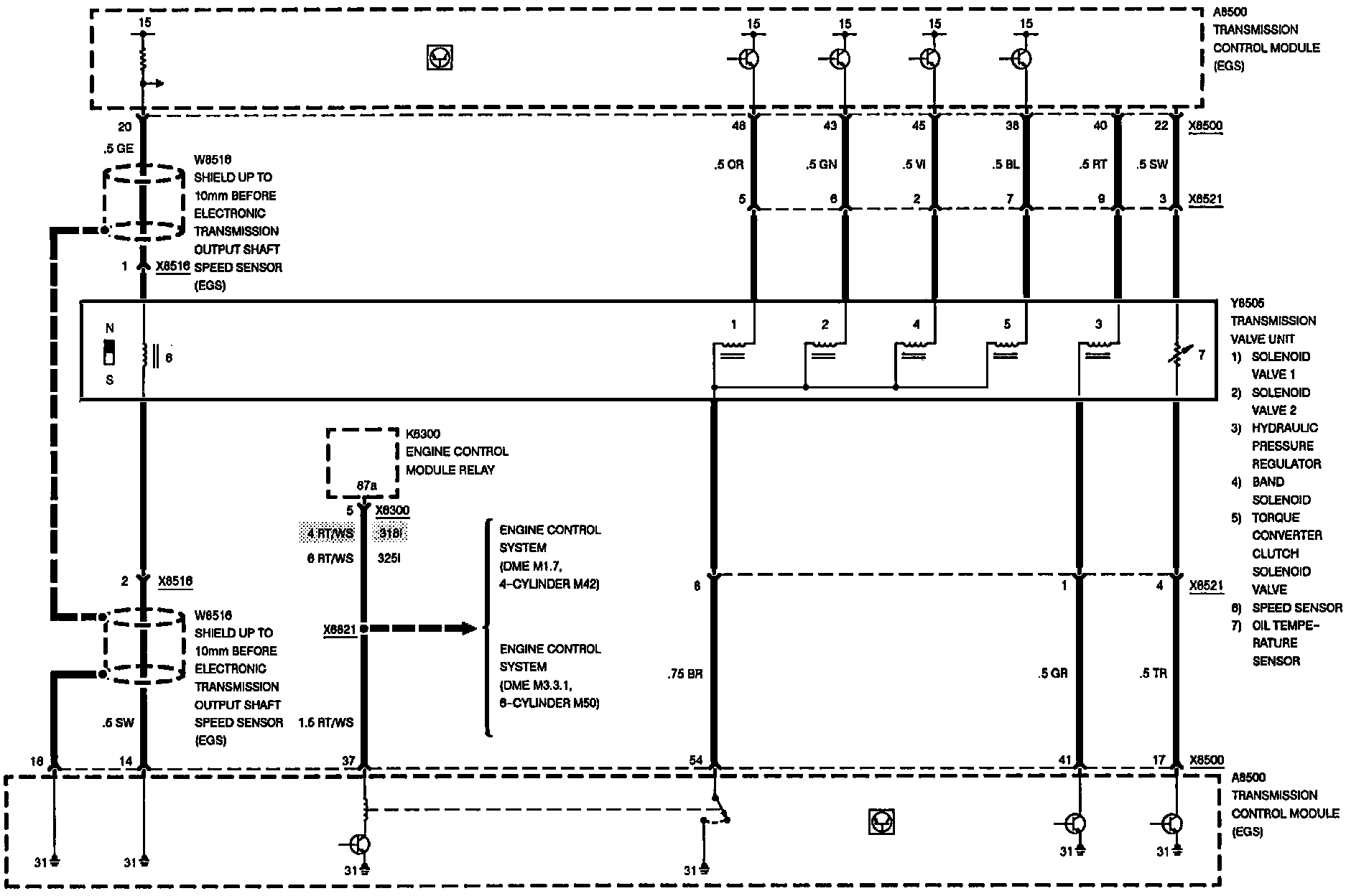

Electronic Transmission Control: Gear Valve Unit:
