Home
>>
BMW
>>
1994
>>
318is (E36) L4-1796cc 1.8L DOHC (M42)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Temperature Controls
Temperature Controls

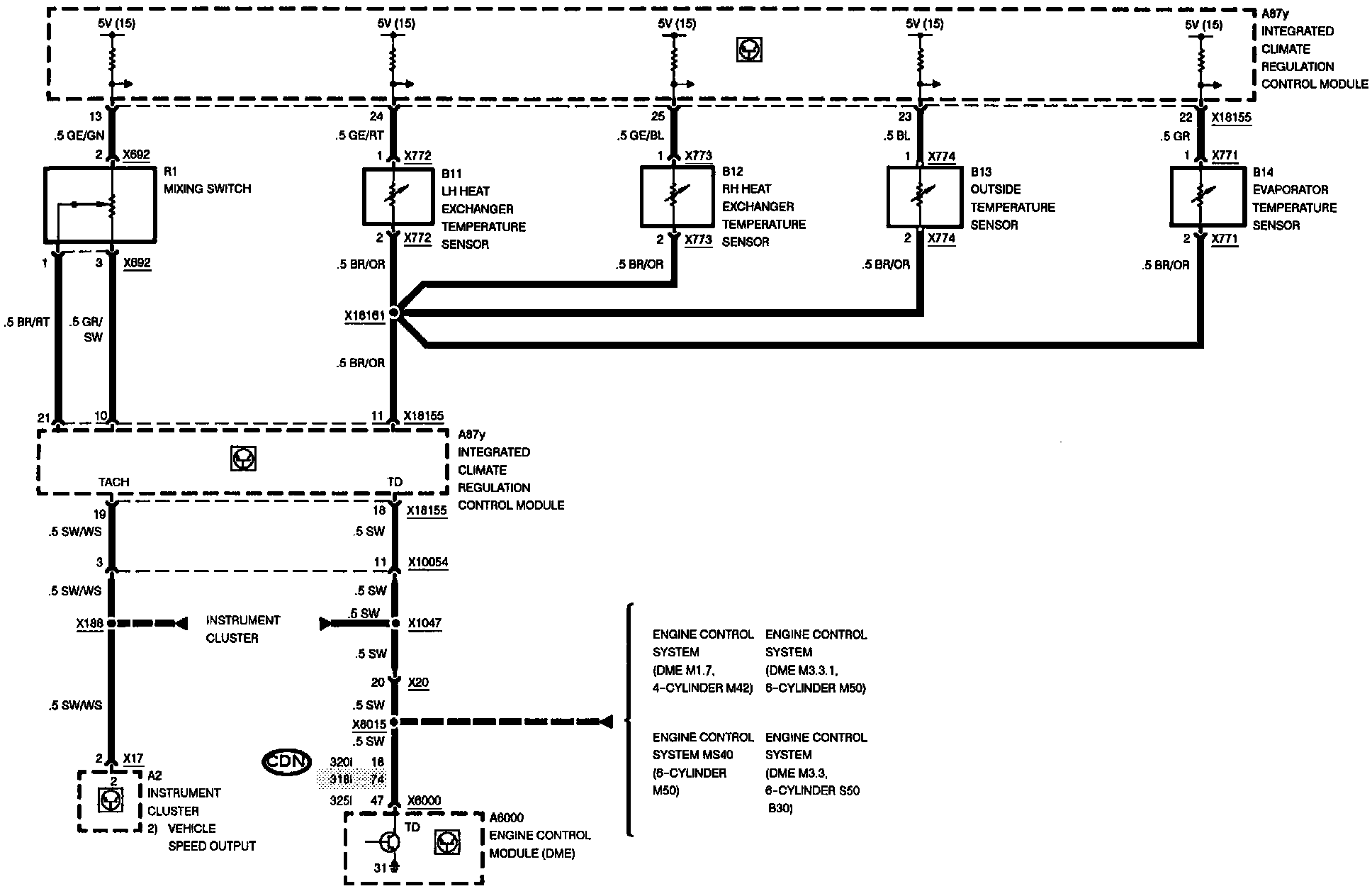

Integrated Climate Regulation: Temperature Control:
