Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
BMW
>>
1994
>>
318is (E36) L4-1796cc 1.8L DOHC (M42)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
System Diagram
System Diagram

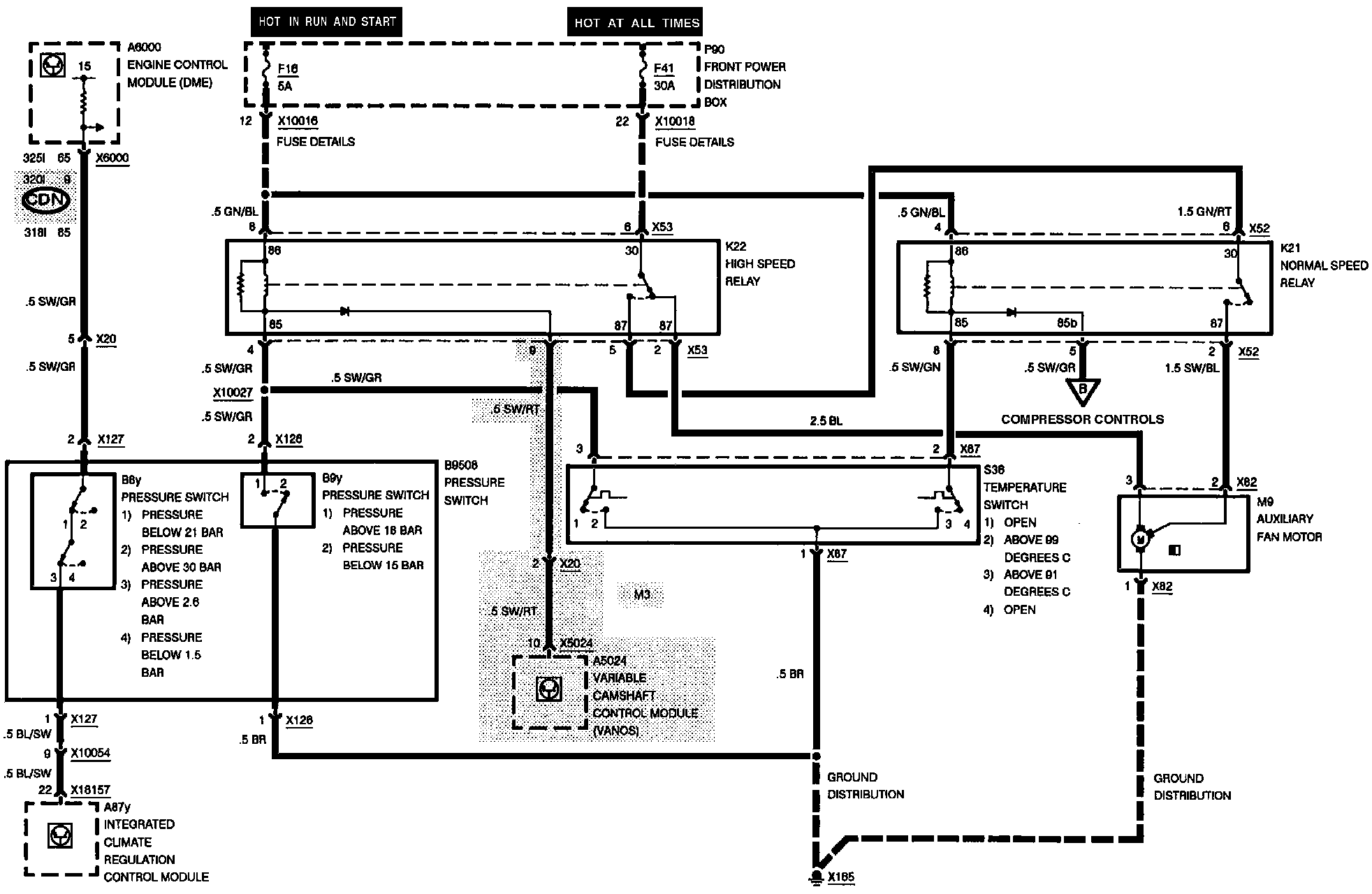

Integrated Climate Regulation: Auxiliary Fan:
