A/T - Overview and Performance Information: Overview

Group 24
Automatic Transmission

Bulletin Number
24 01 92 (2127)

Woodcliff Lake, NJ
October 1992
Product Engineering

SUBJECT:
Overview of A5S 560Z Transmission

MODELS:
740iA

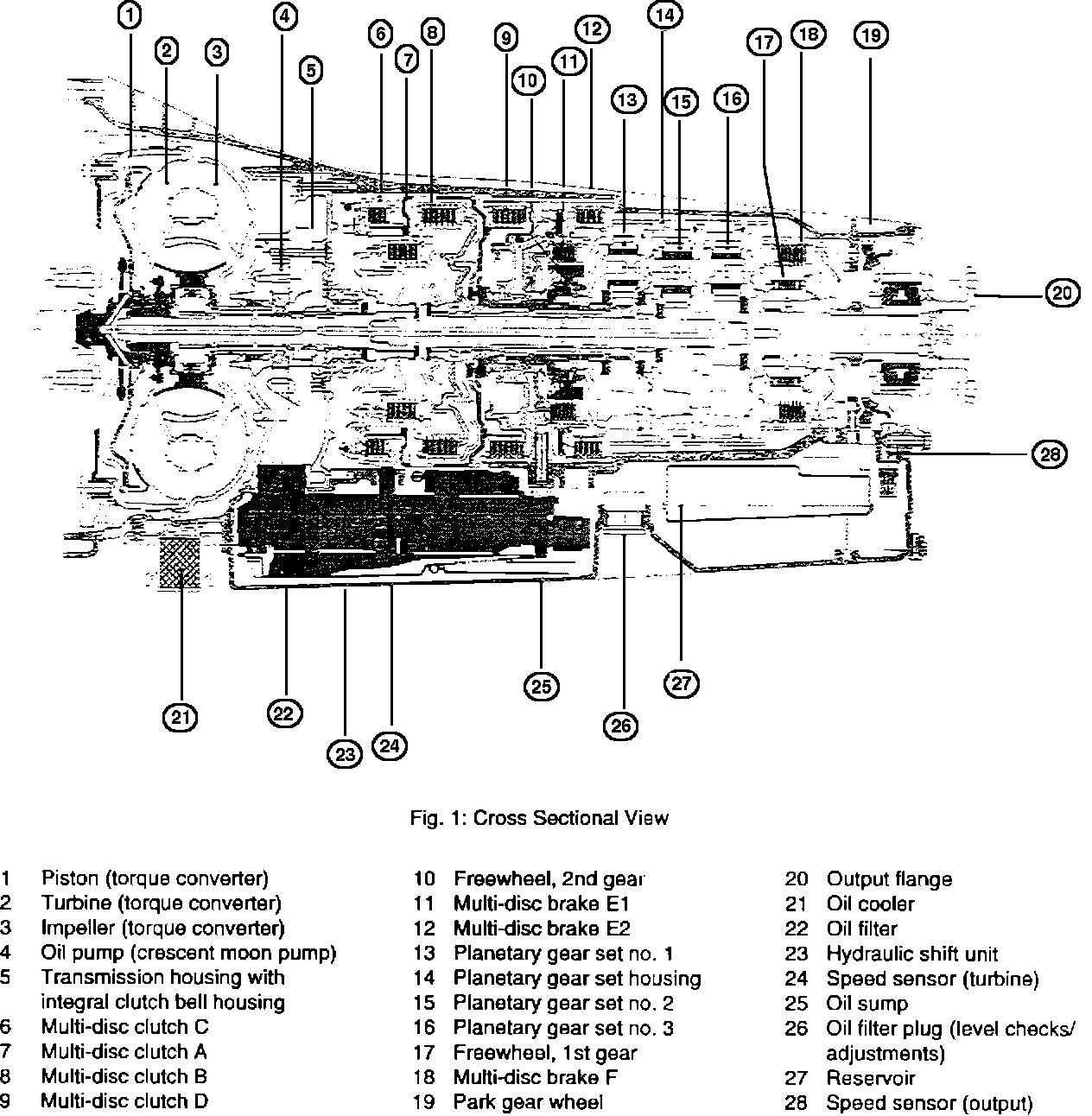

Cross Sectional View

Together with the introduction of the M60 engine in the E32, a new automatic transmission will be used. The transmission is manufactured in Germany by ZF and carries the BMW designation A5S 560Z.

The A5S 560Z is an electronically controlled, five-speed automatic transmission with a lock-up clutch type torque converter. Three planetary gear sets (Wilson gearing), three rotating multiple disc clutches, four multiple disc brake-clutches, and two sprag clutches (freewheels) are used to provide the five forward speeds and reverse operation.
