Home
>>
BMW
>>
1993
>>
740iL (E32/2) V8-3982cc 4.0L DOHC (M60)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Electrical Diagrams
>>
Pin 11
Pin 11

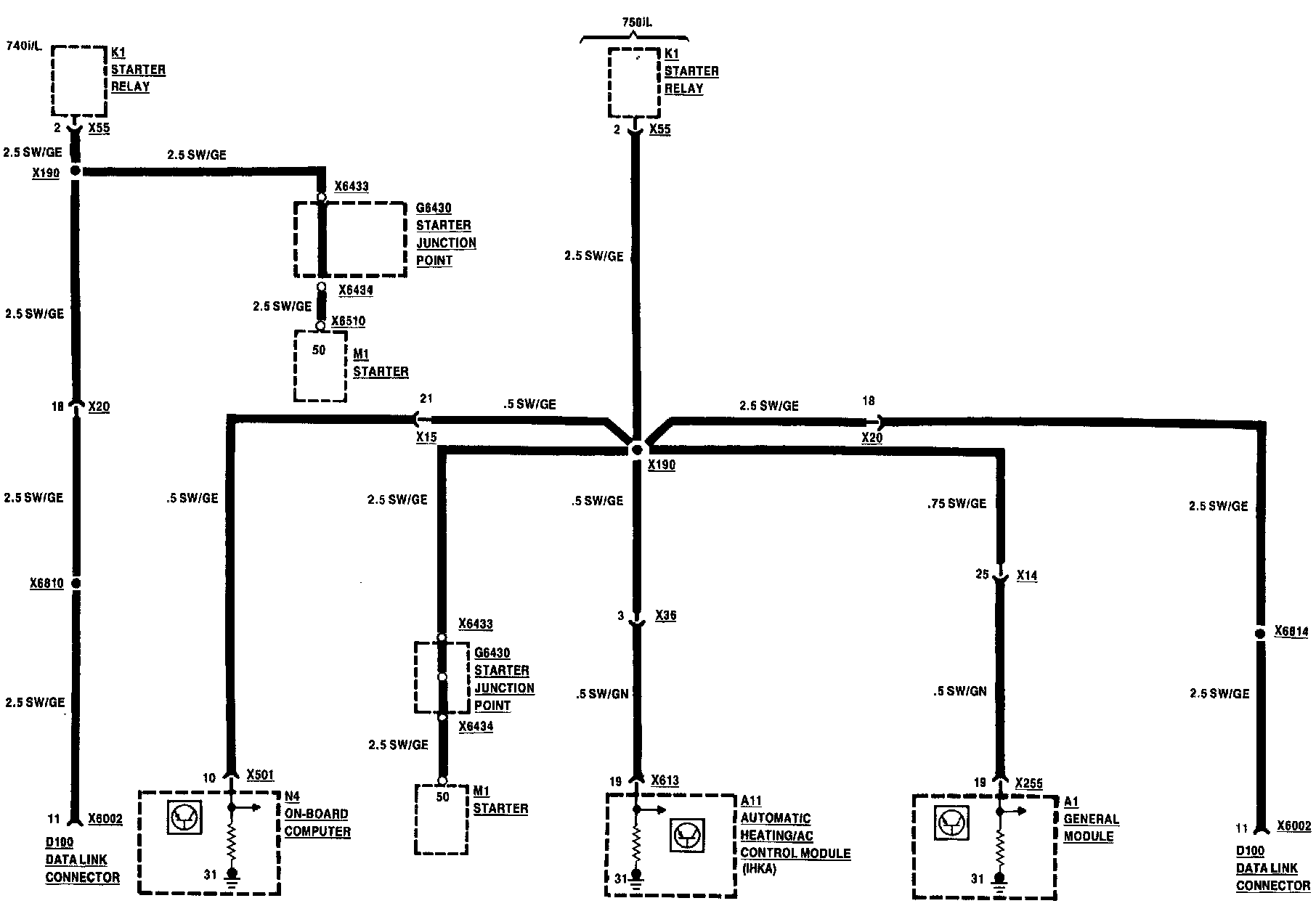

Data Link Connector - Pin 11:
