Home
>>
BMW
>>
1993
>>
740iL (E32/2) V8-3982cc 4.0L DOHC (M60)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trip Computer
>>
Electrical Diagrams
>>
Chime Module
Chime Module

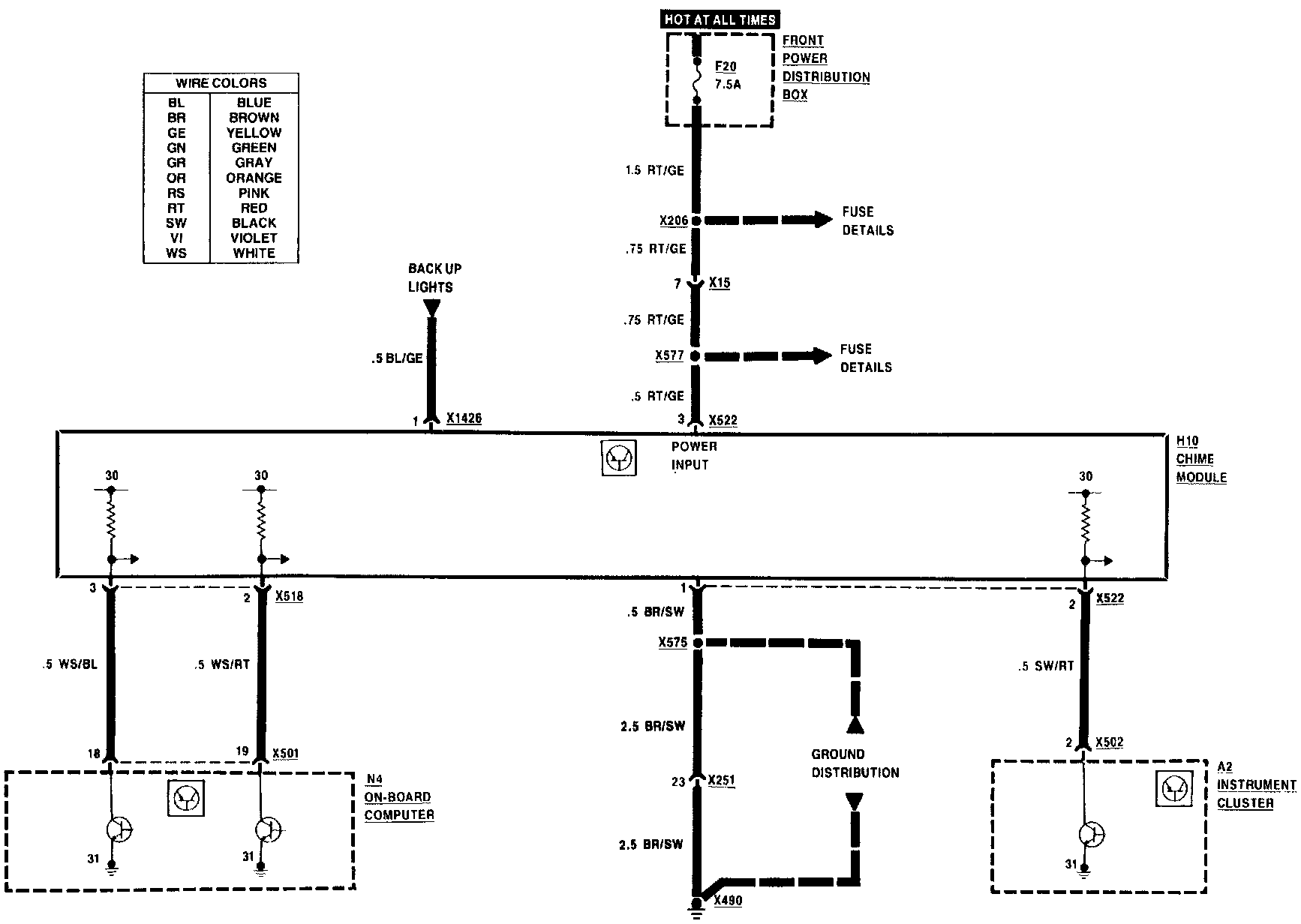

On-Board Computer - Chime Module:
