Home >> BMW >> 1993 >> 740iL (E32/2) V8-3982cc 4.0L DOHC (M60) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Exterior Lighting Module >> Lamp Monitor >> 2 of 11

2 of 11

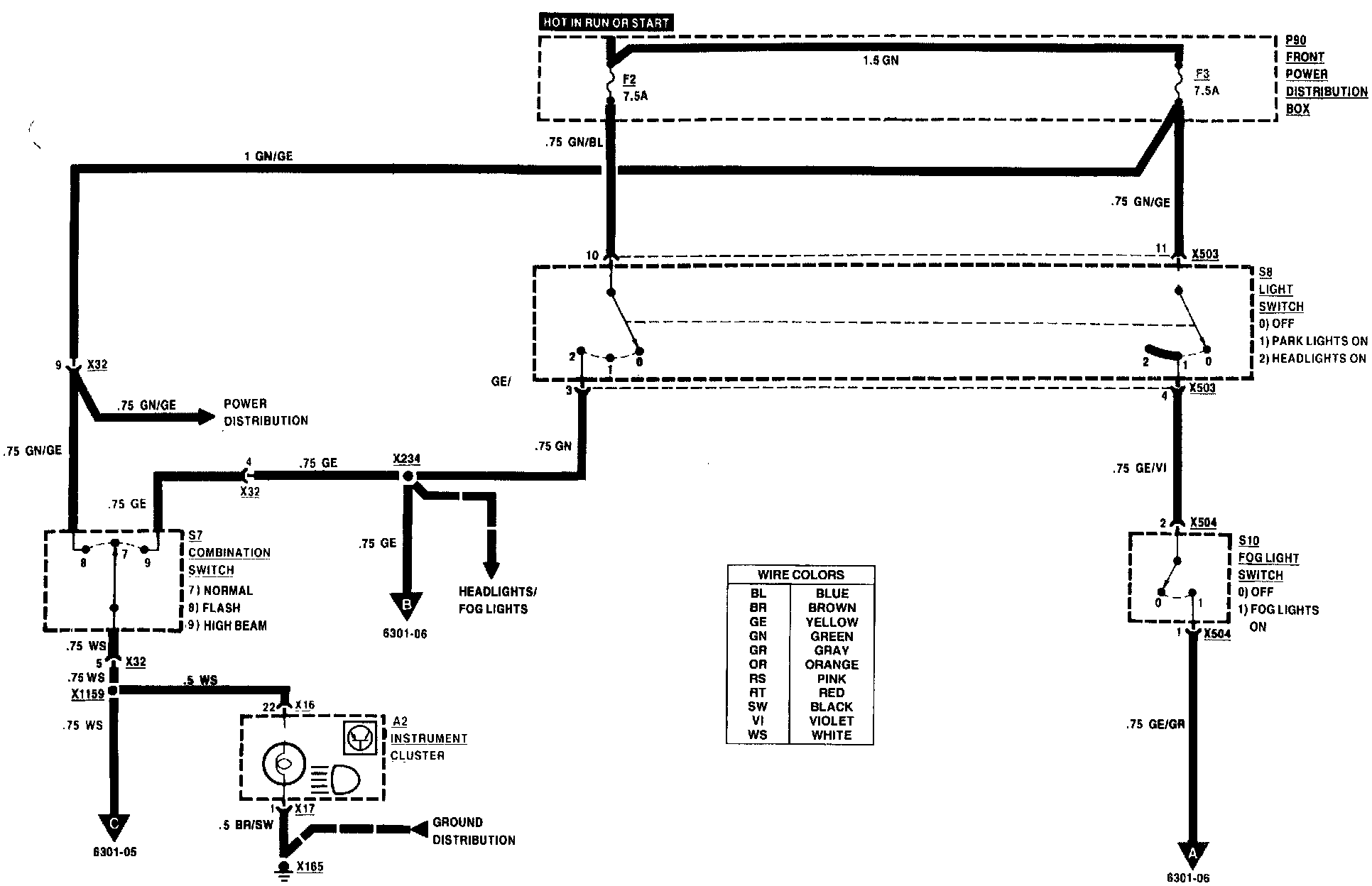

Lamp Monitor:
