Heater Core Temperature Sensor / Switch: Service and Repair

HEATER CORE TEMPERATURE SENSOR, REPLACING

- Remove center console.

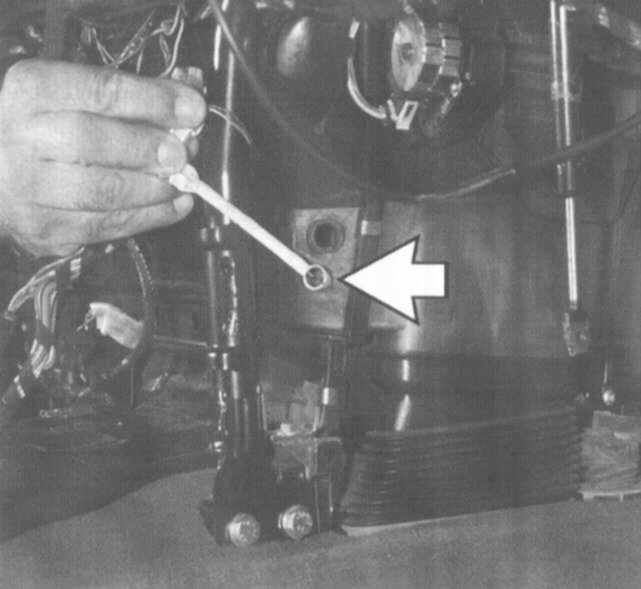

- Disconnect harness connector from sensor (arrow) and carefully pry out sensors from heater core housing. (Right side shown).

- Installation is reverse of removal.
