Home
>>
BMW
>>
1993
>>
535i (E34) L6-3430cc 3.4L SOHC (M30)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trip Computer
>>
On-Board Computer (BCIV)
>>

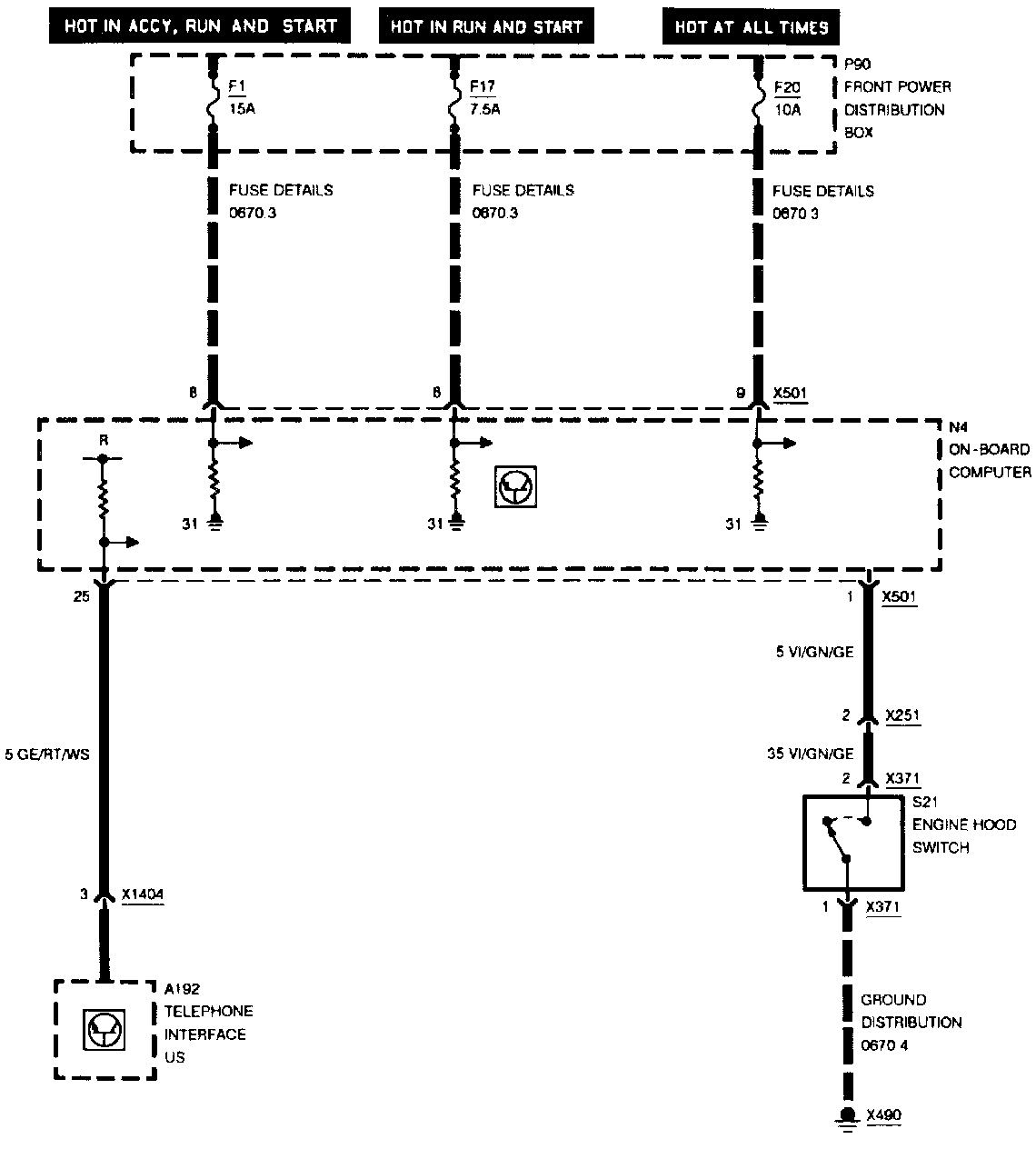

Power
Power

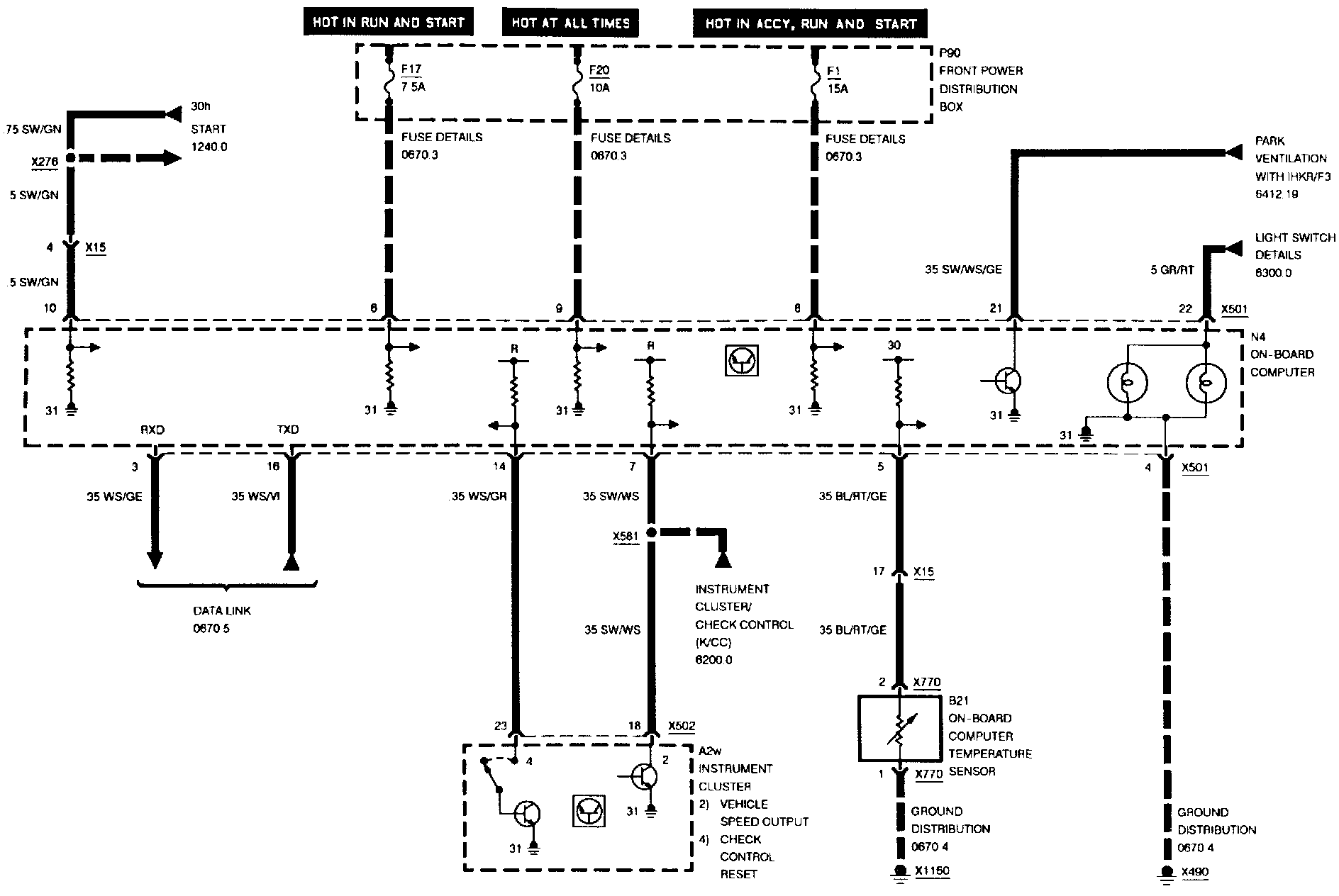

On Board Computer:
On Board Computer:
