Home
>>
BMW
>>
1993
>>
535i (E34) L6-3430cc 3.4L SOHC (M30)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Data Link Pins 4 and 18
Data Link Pins 4 and 18

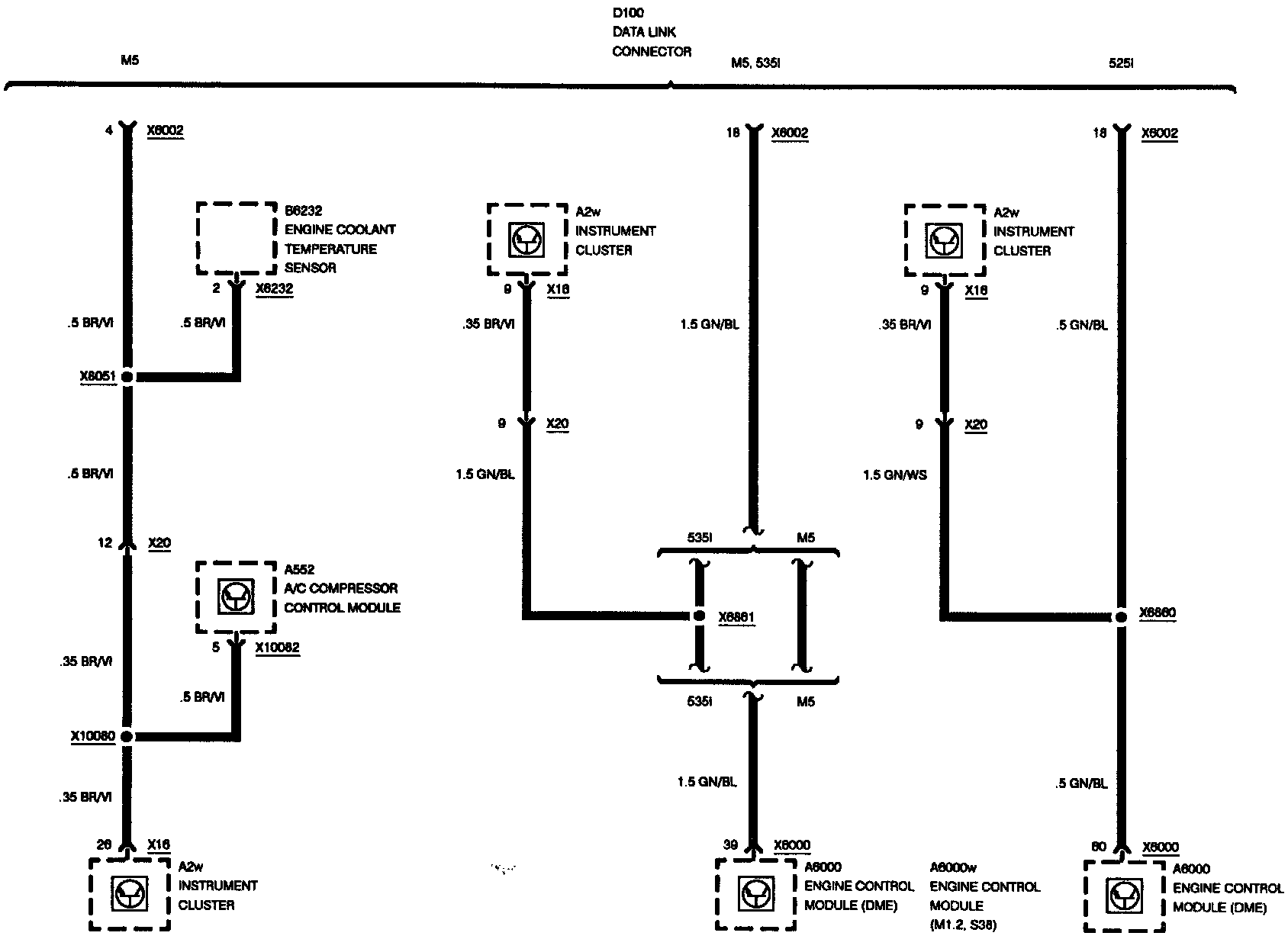

Data Link Connector Pins 4 and 18:
