Power Distribution Box, Front

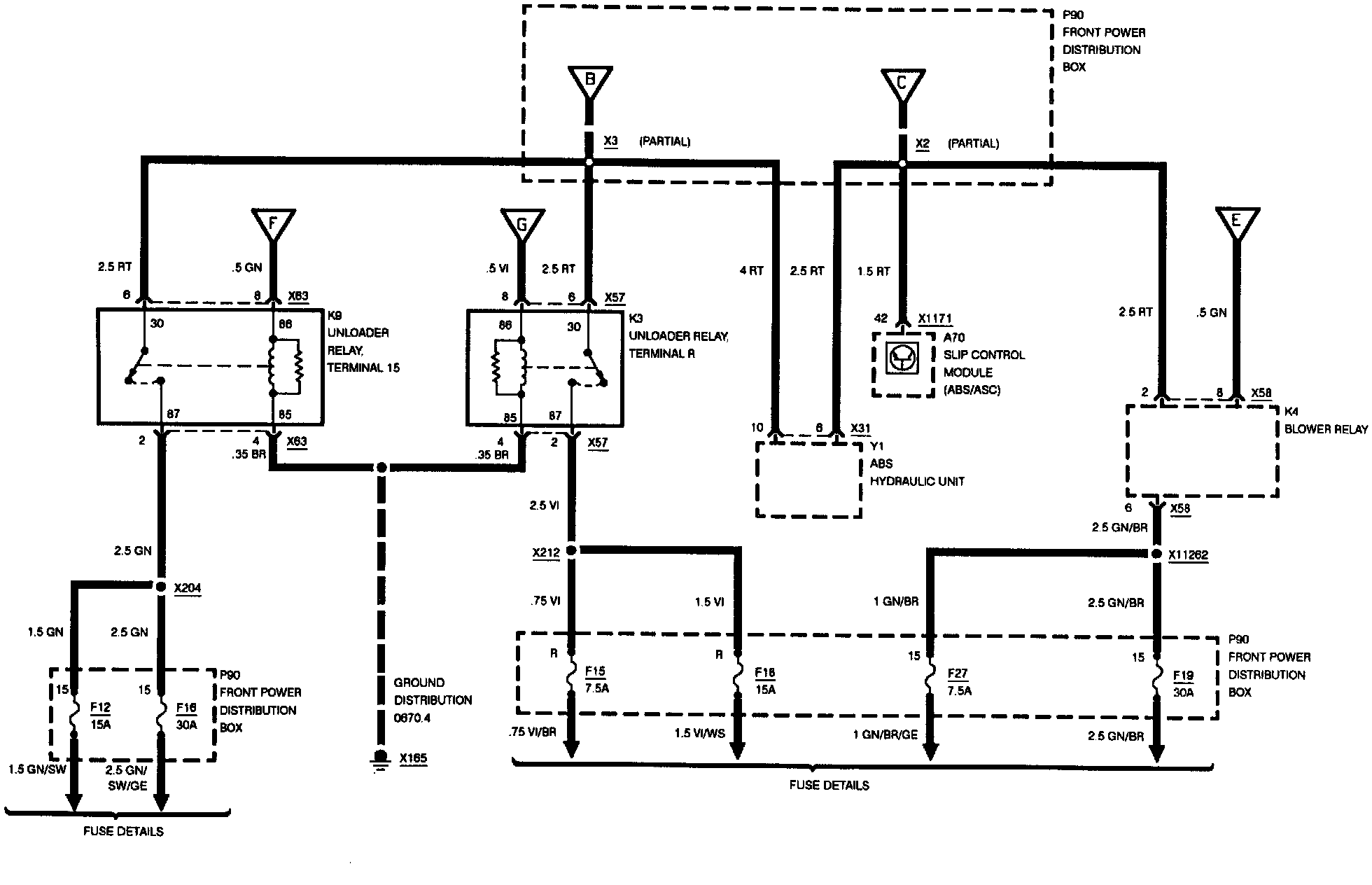

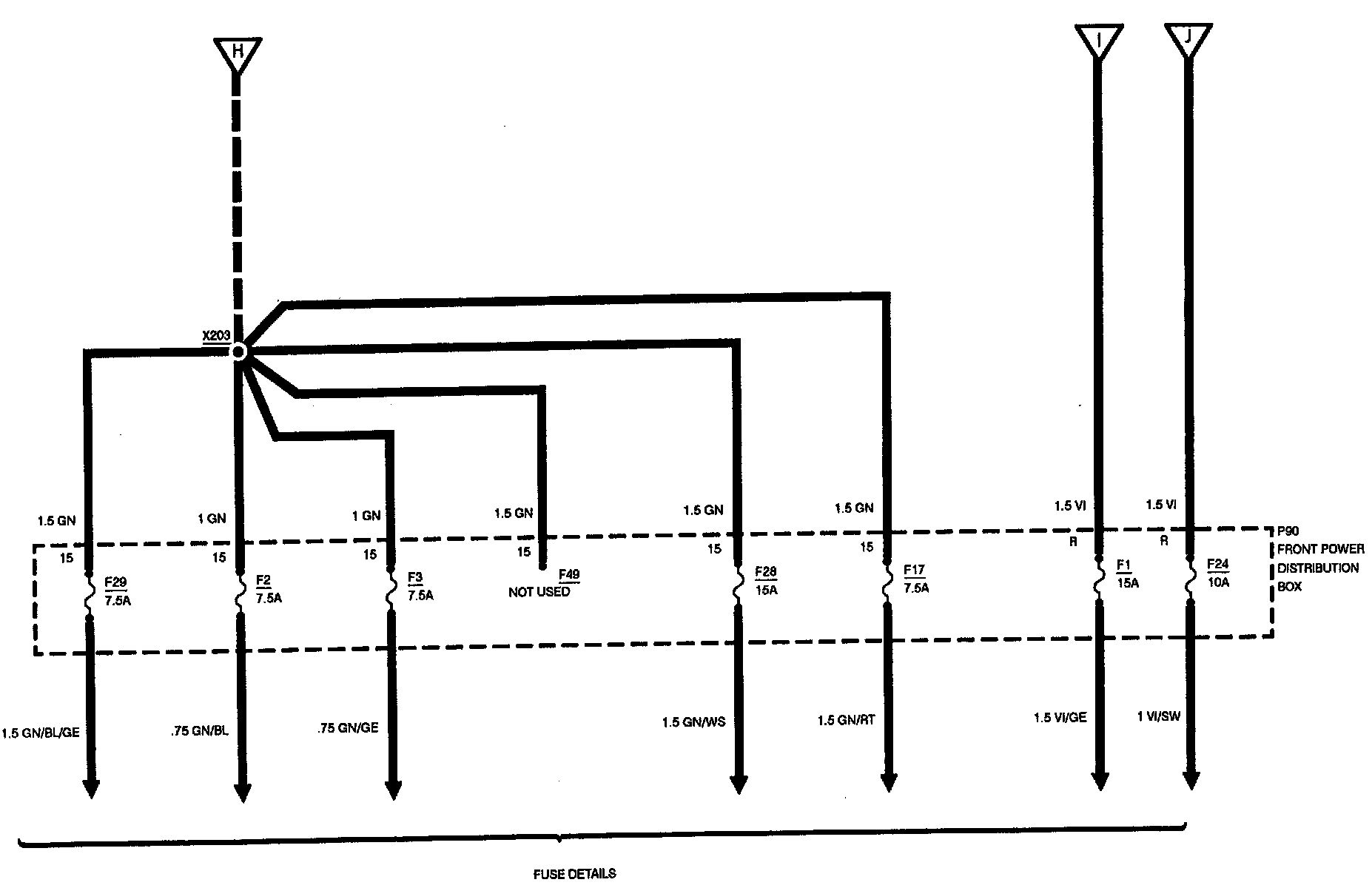

Power Distribution - Front Distribution Box:

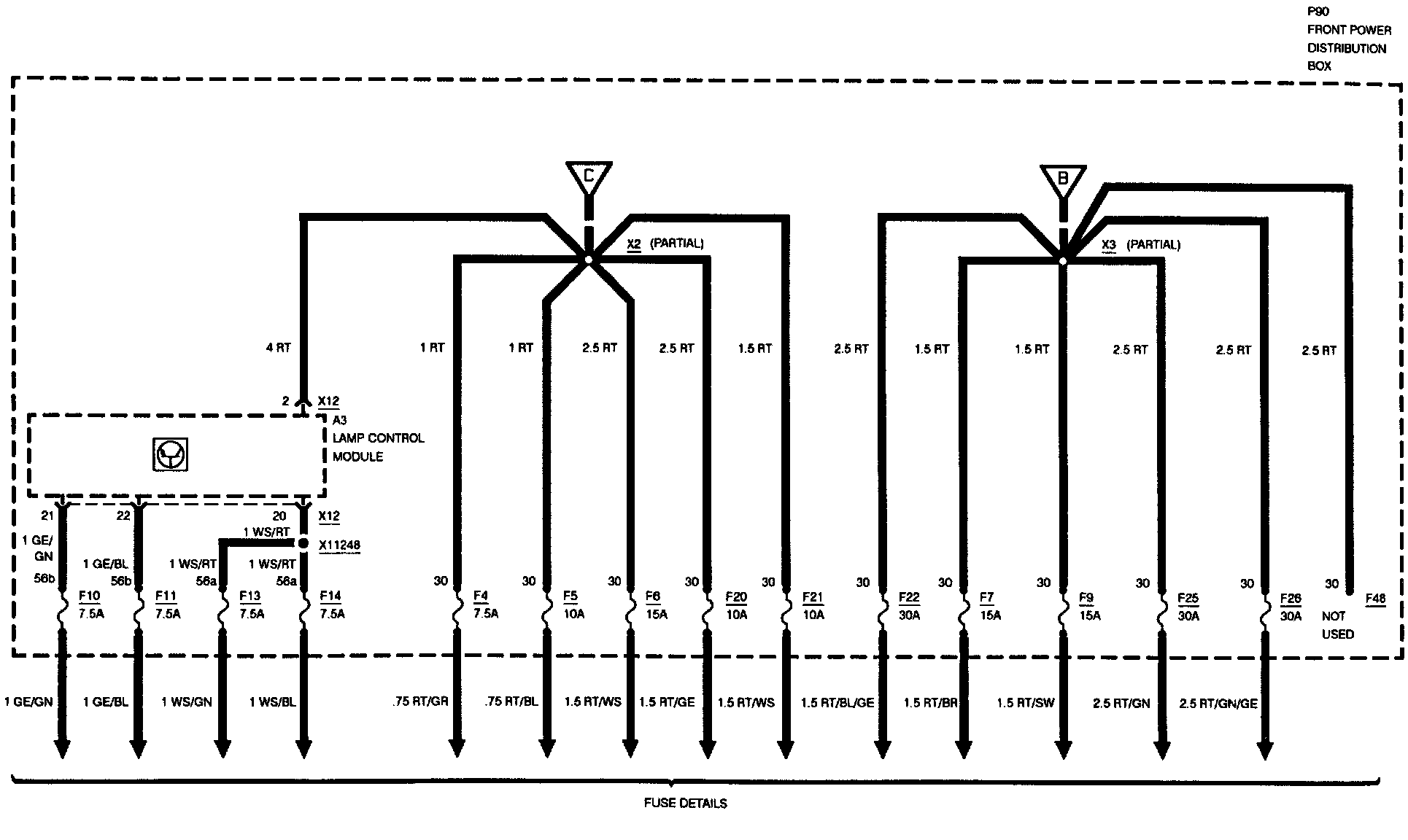

Power Distribution - Front Distribution Box:
