Relay Module

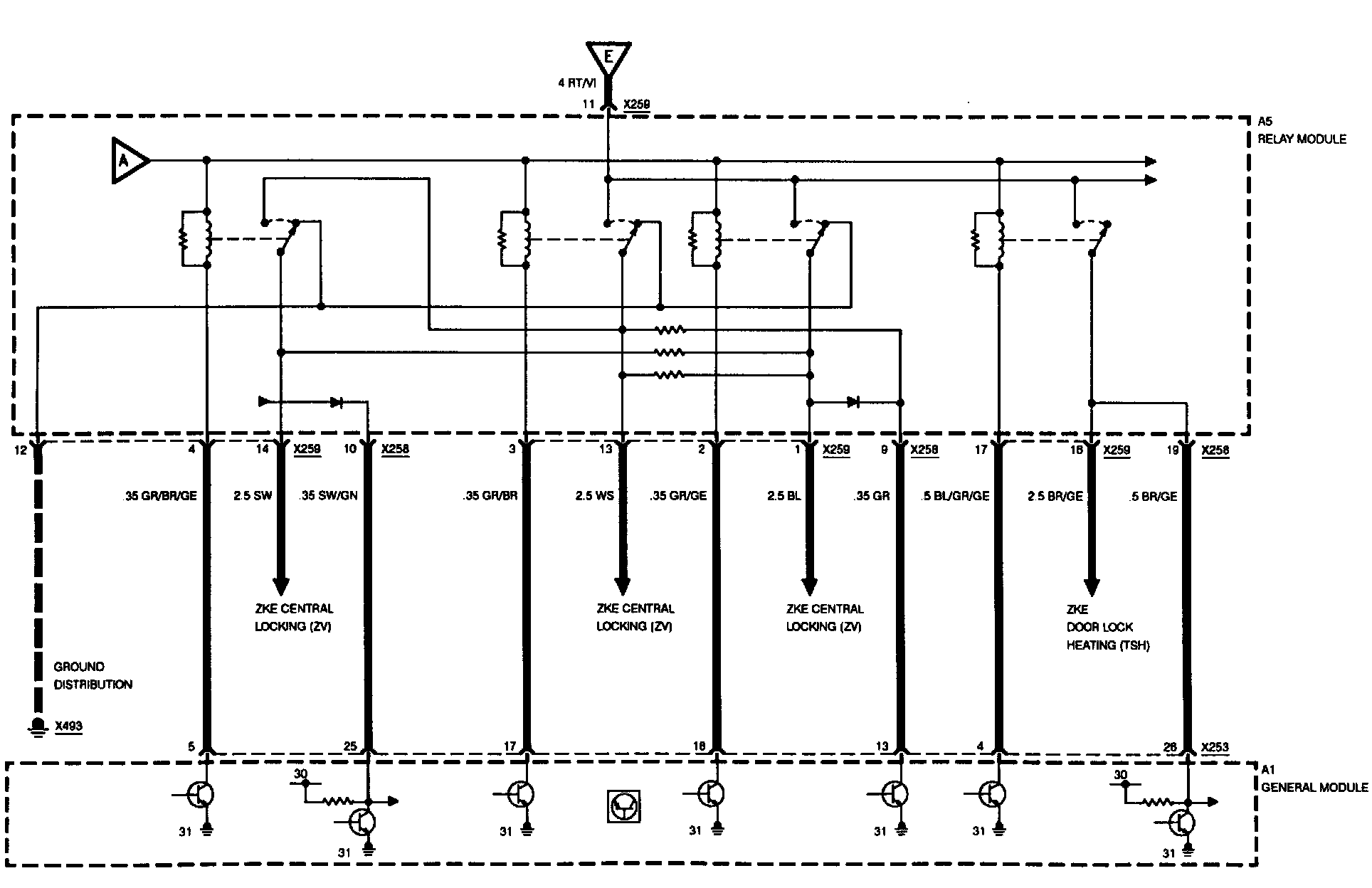

Central Body Electronics - Relay Module:

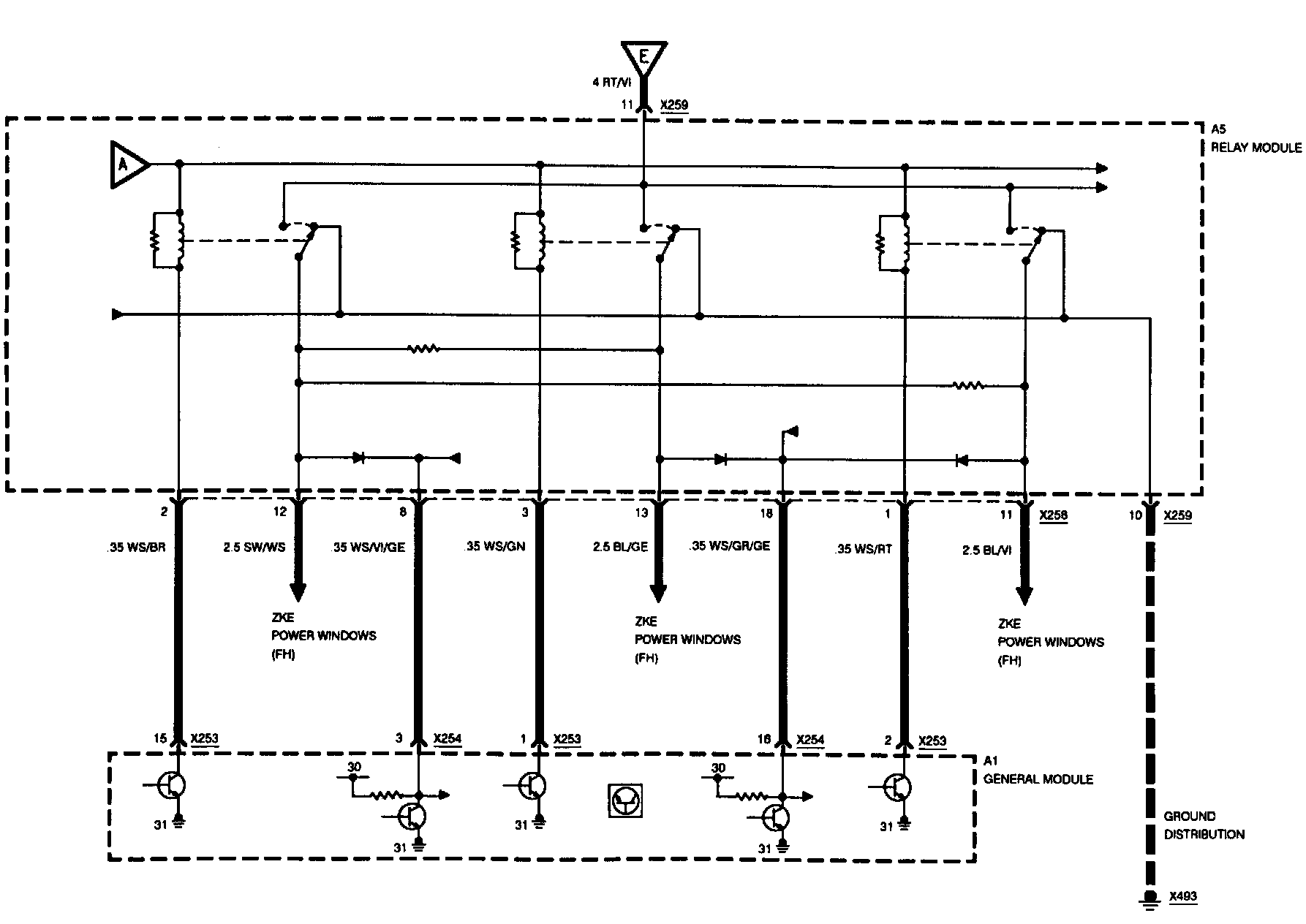

Central Body Electronics - Relay Module:

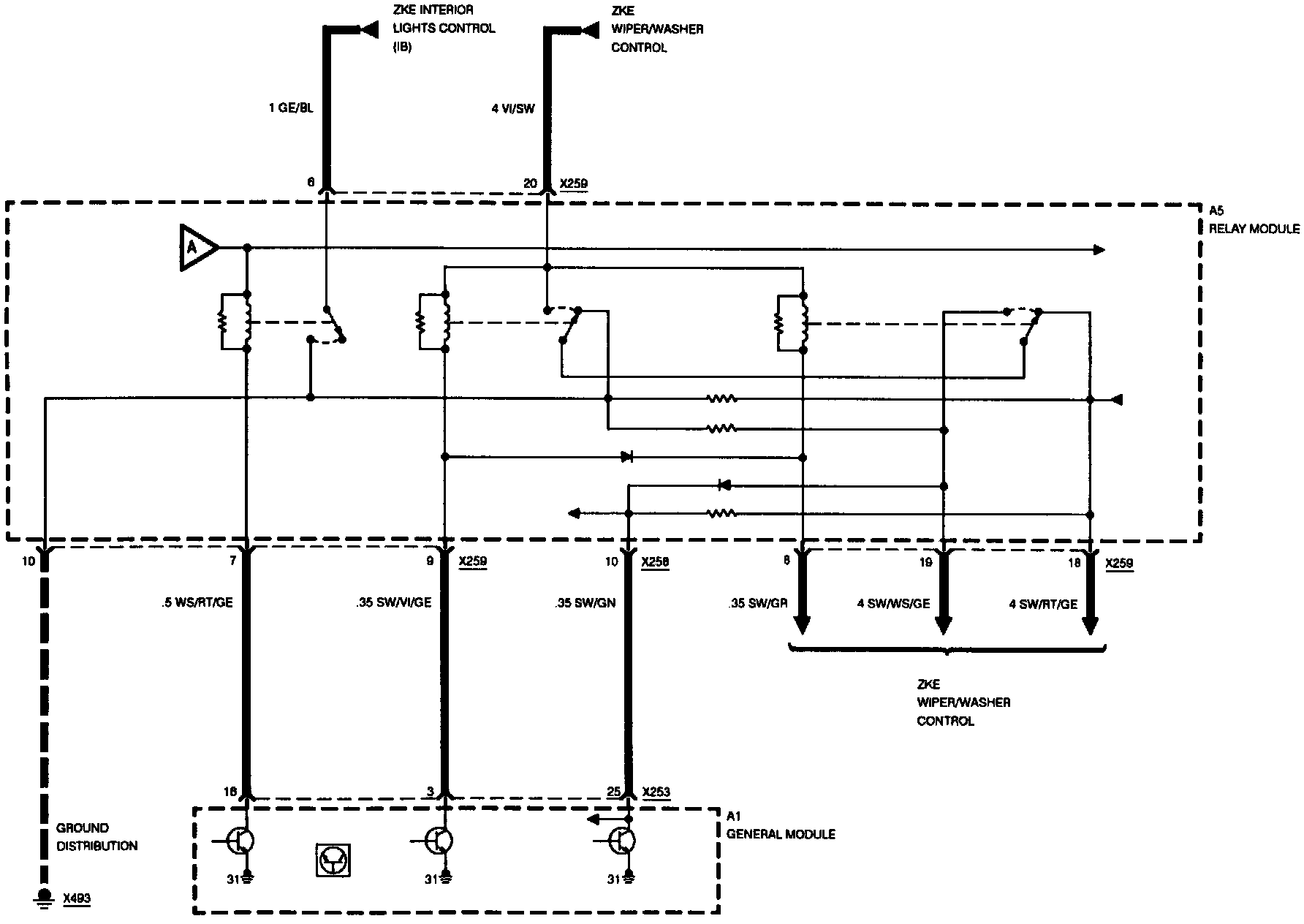

Central Body Electronics - Relay Module:

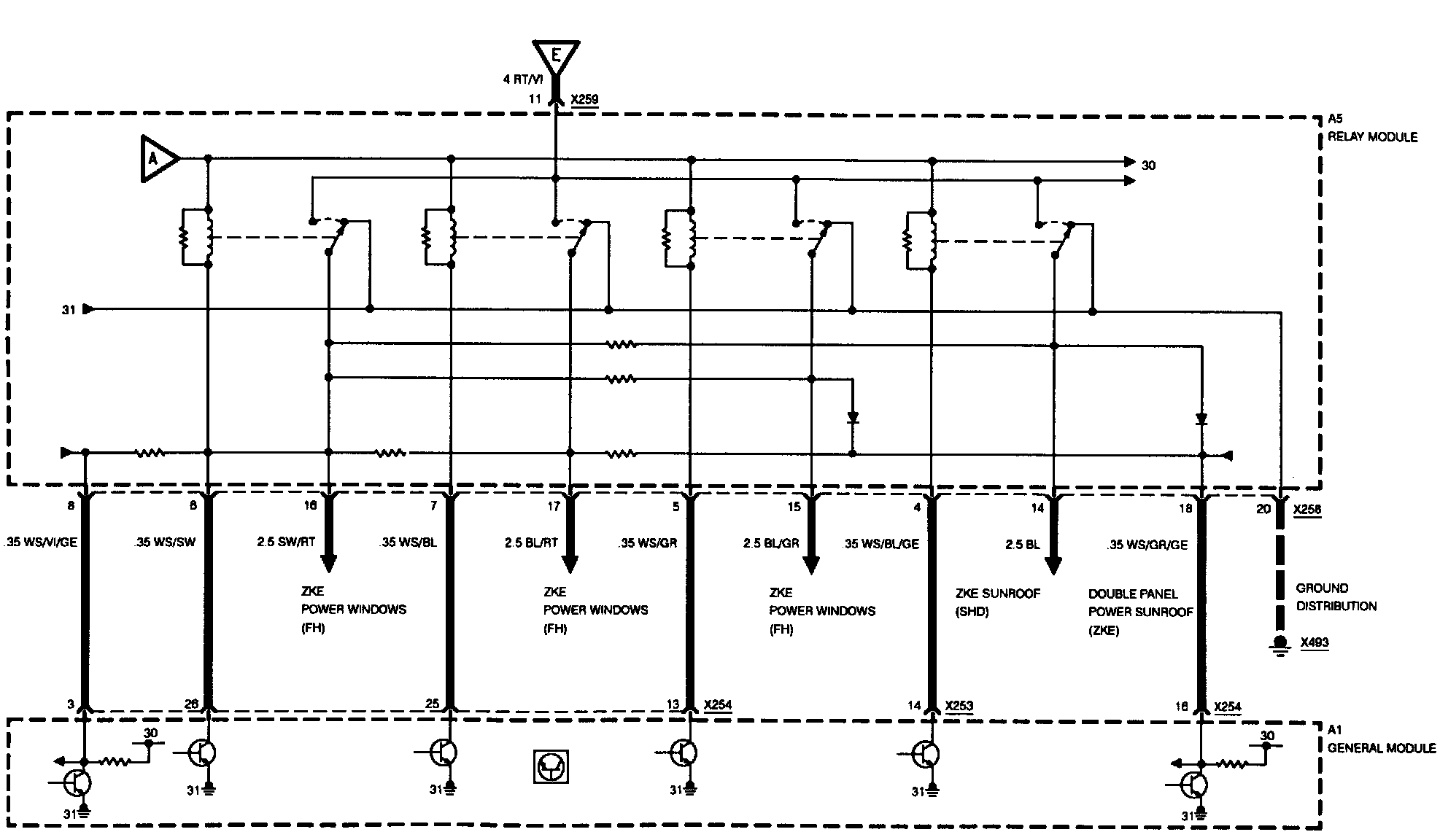

Central Body Electronics - Relay Module:
