Left Front

Component Location Views:

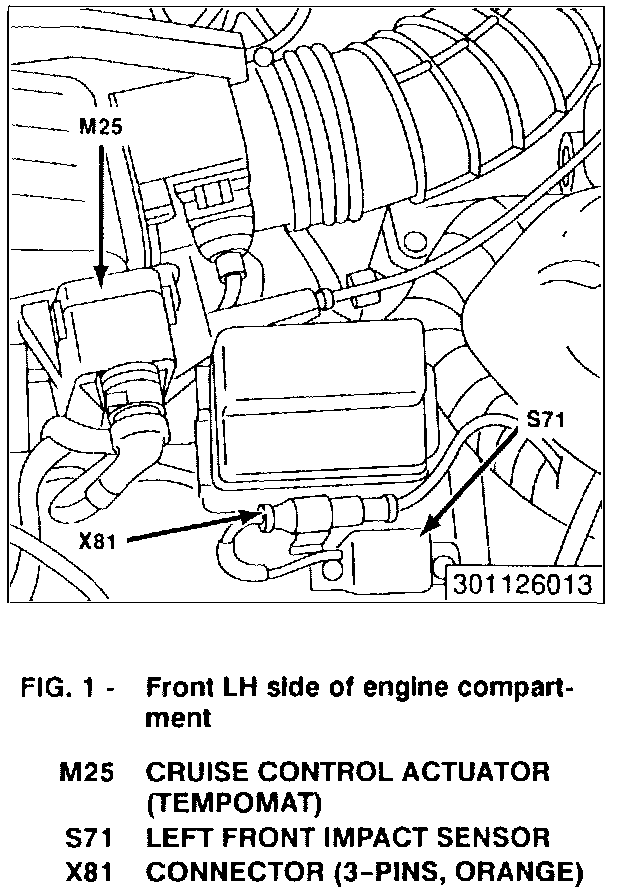

COMPONENT VIEW

S71 Left Front Impact Sensor

LOCATION

LH side of engine compartment, ahead of LH side shock tower
