Home
>>
BMW
>>
1993
>>
525i (E34) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Crash Control Module
>>
Electrical Diagrams
Electrical Diagrams

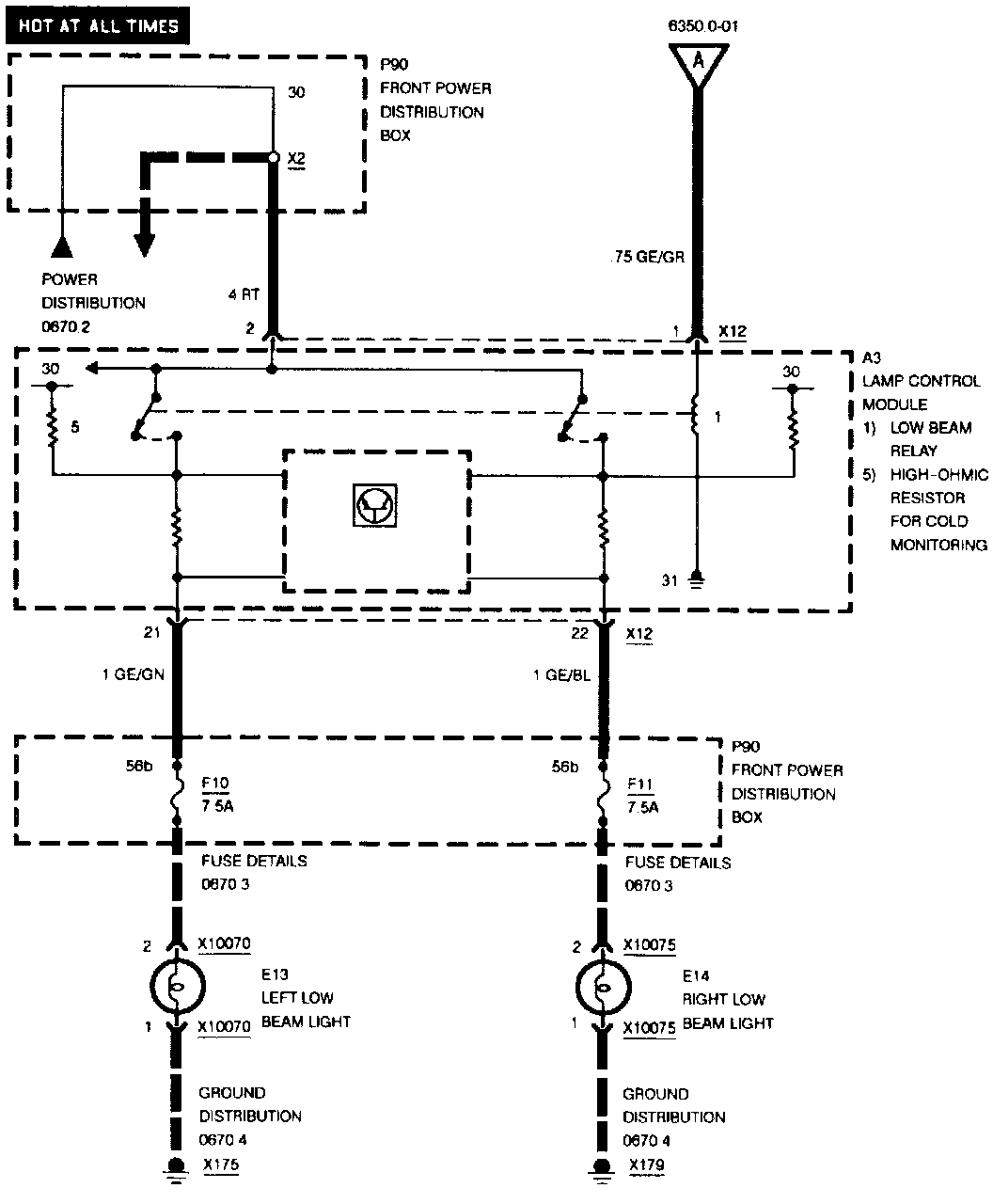

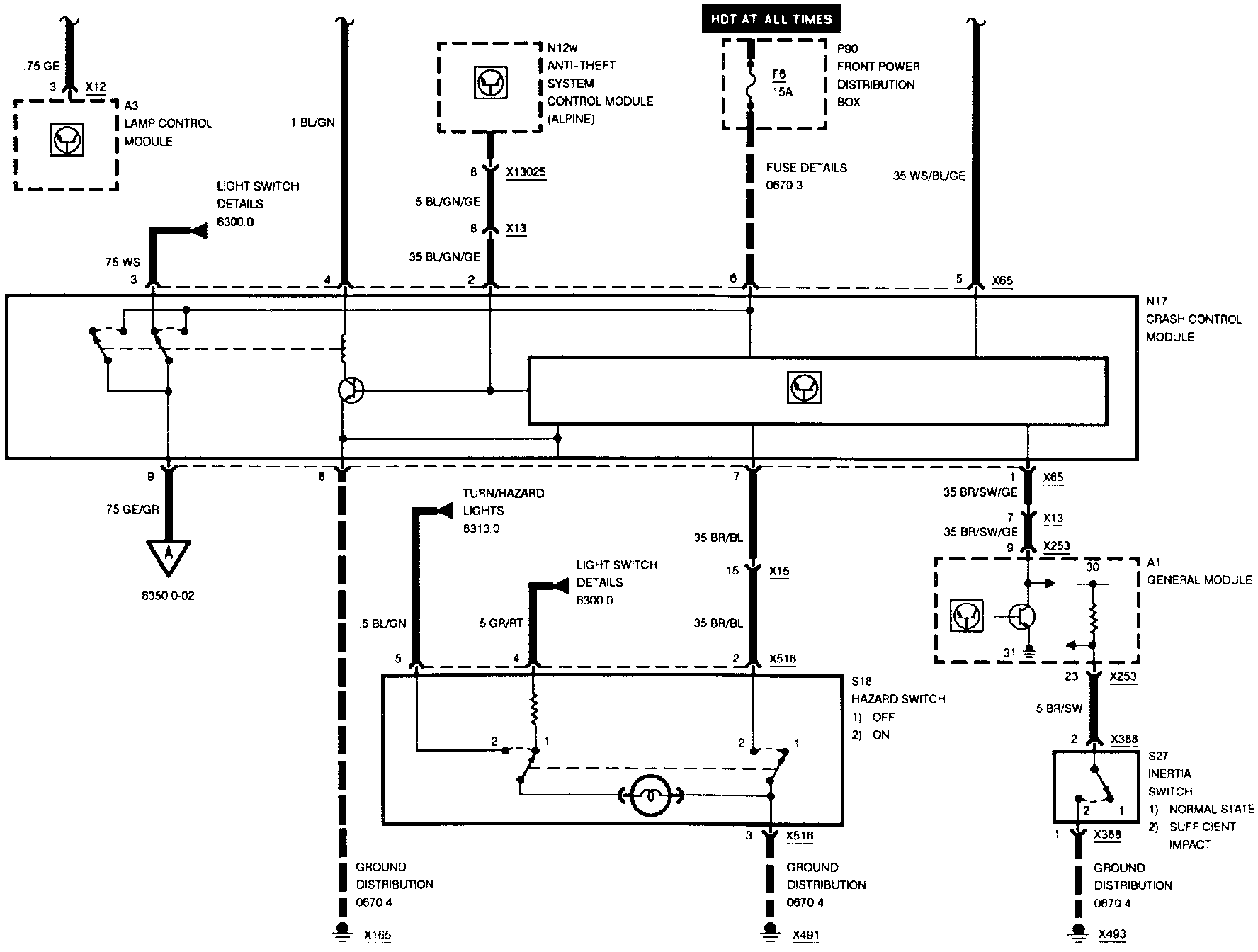

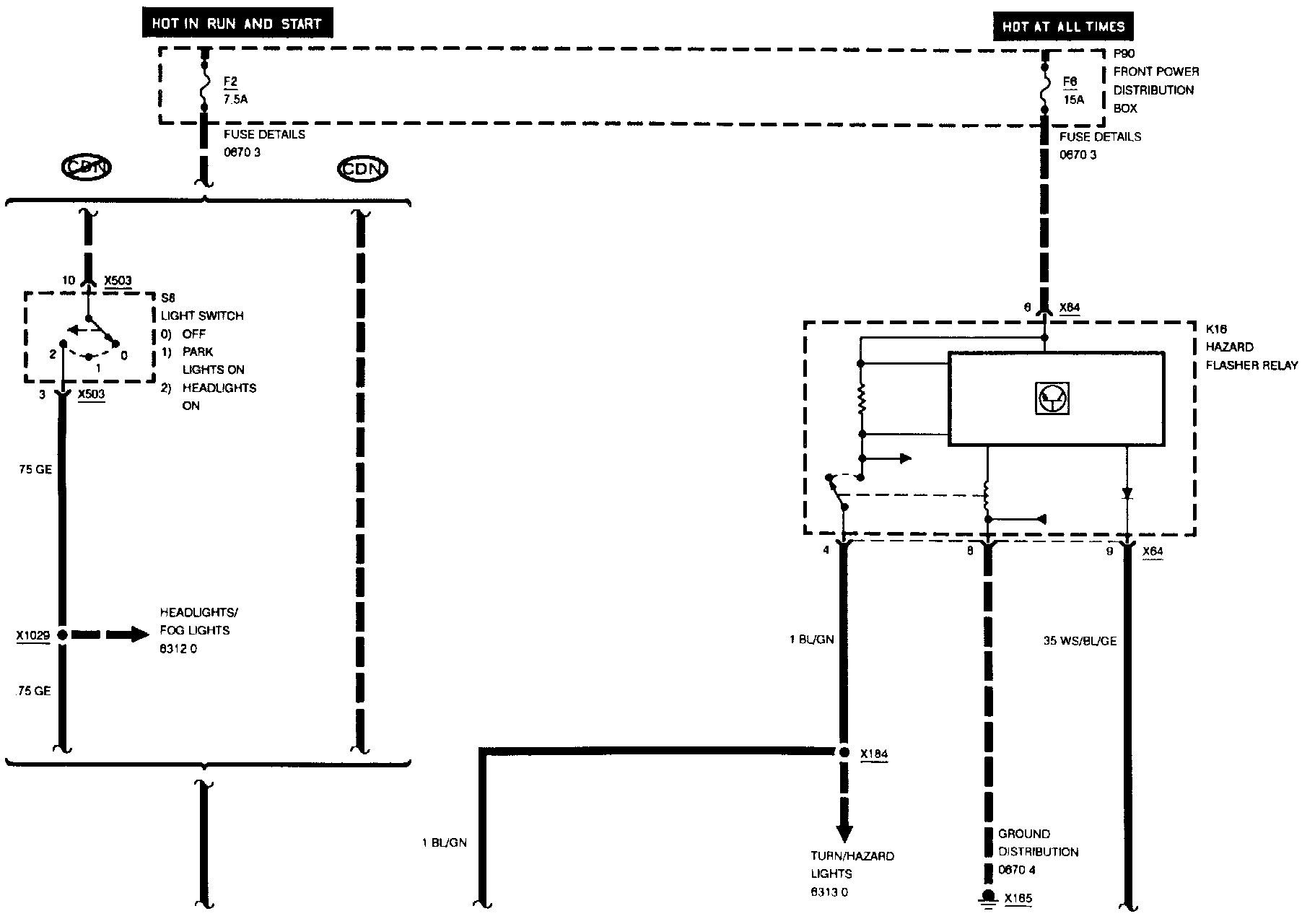

Crash Control Module:
Crash Control Module:
Crash Control Module:
