Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
BMW
>>
1993
>>
325i Convertible (E30) L6-2494cc 2.5L SOHC (M20)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse Block
>>
Fuse 21
Fuse 21

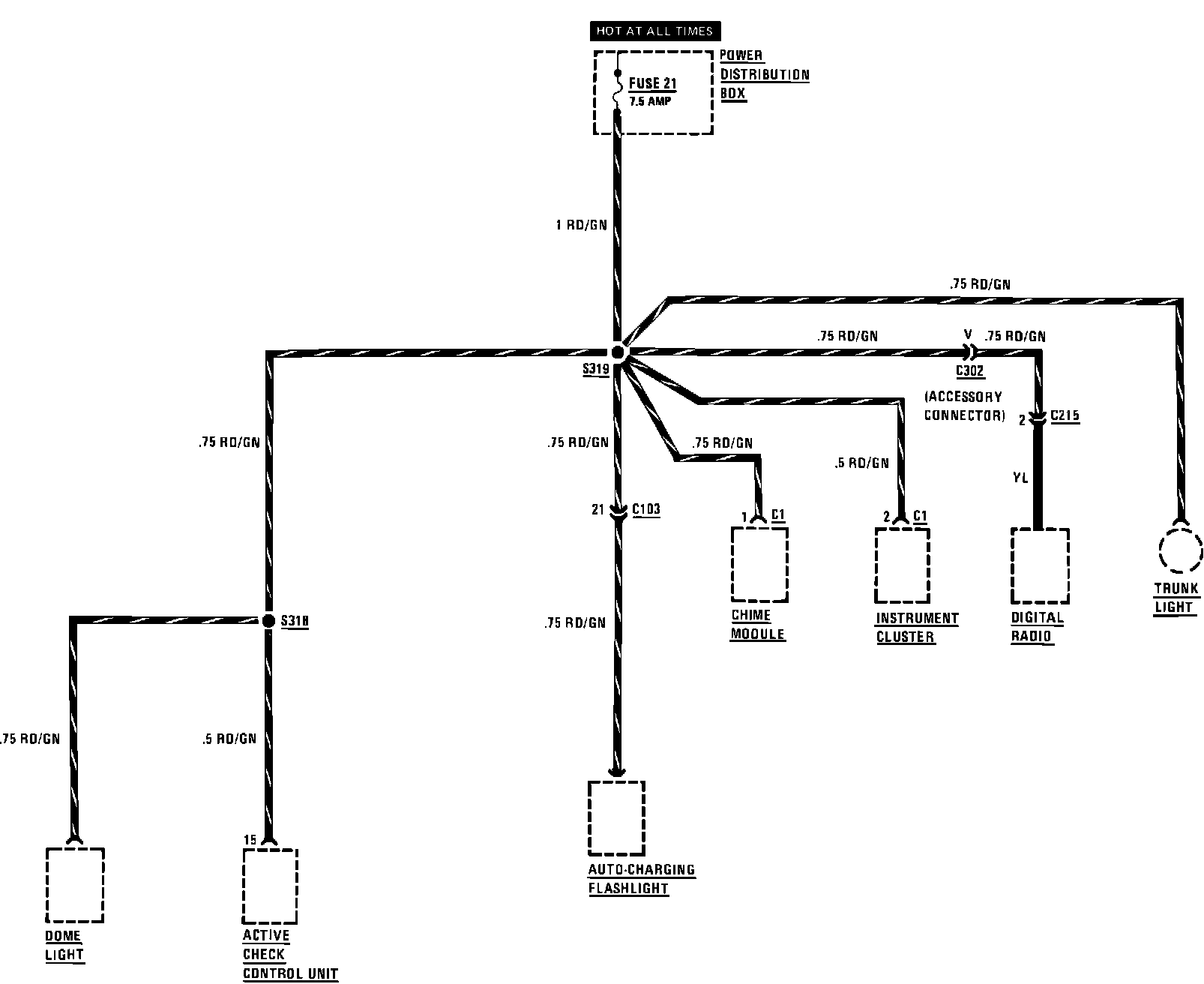

Power Distribution: Fuse 21:
