BMW
>>
1993
>>
325i Convertible (E30) L6-2494cc 2.5L SOHC (M20)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse Block
>>
Fuse 10
Fuse 10

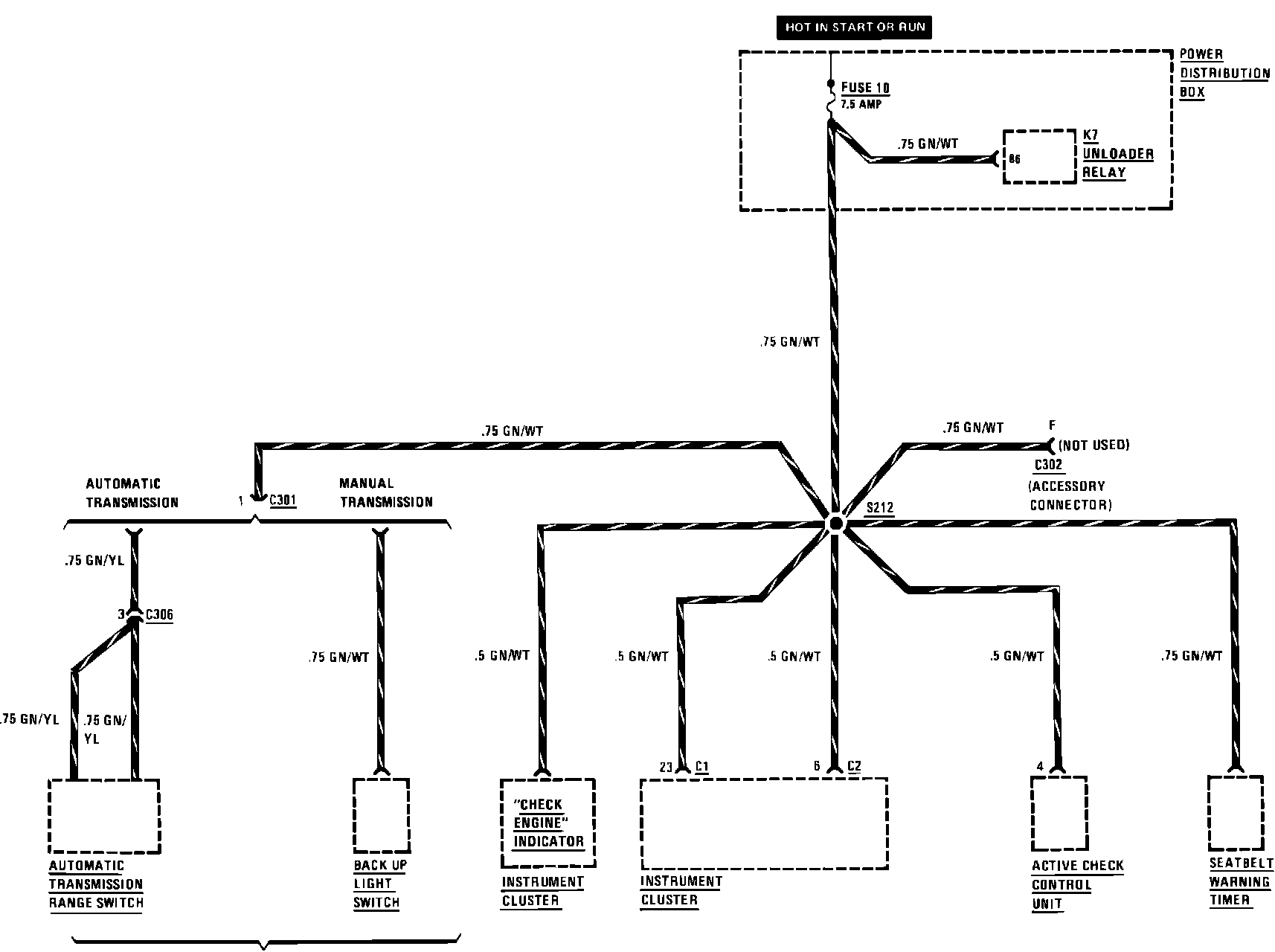

Power Distribution: Fuse 10:
