BMW
>>
1993
>>
318is (E36) L4-1796cc 1.8L DOHC (M42)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Block Diagram
Block Diagram

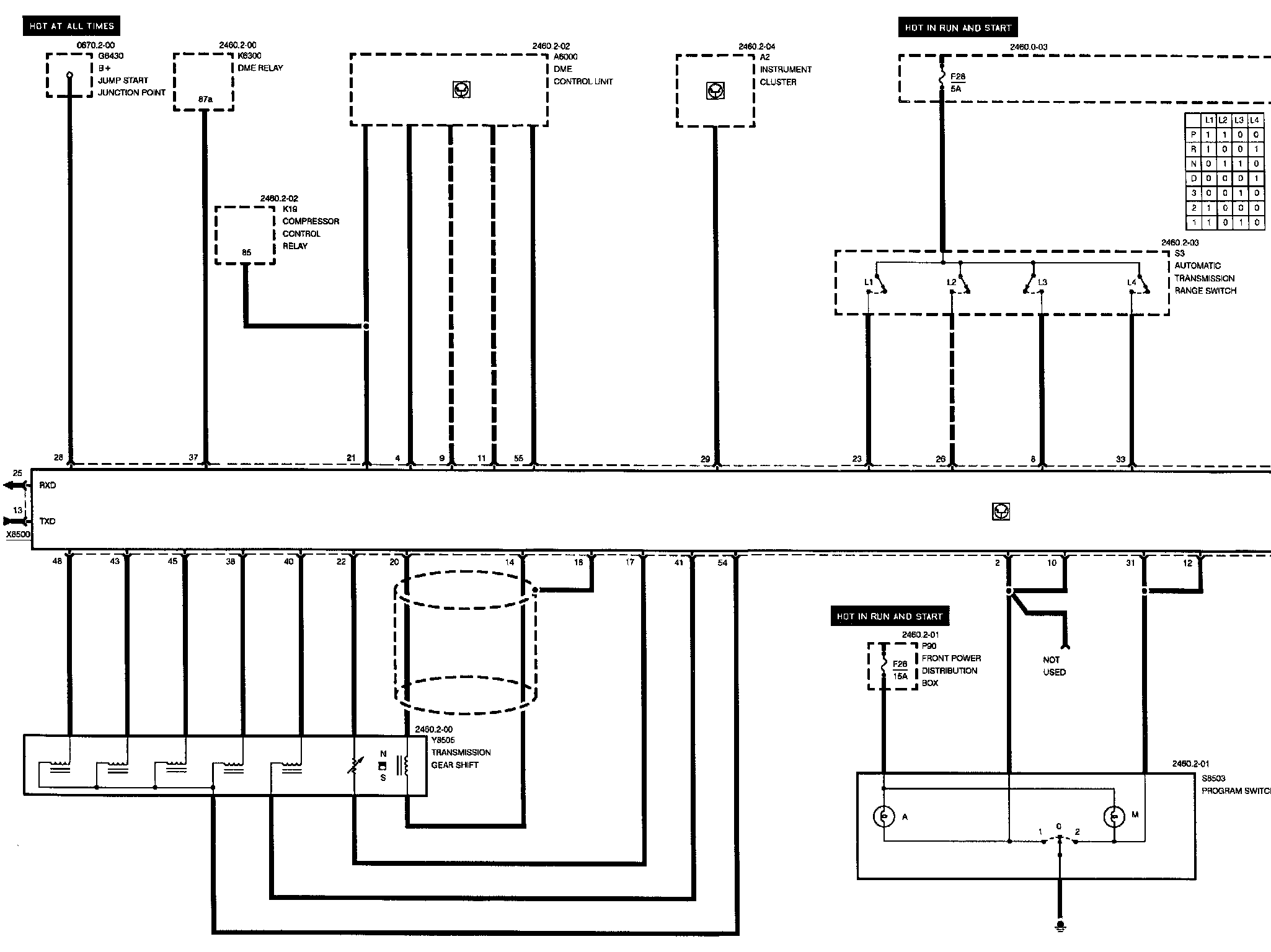

> Electronic Transmission Control - Block Diagram:
