Diagram Information and Instructions
>>
Symbol Identification
>>
Block Diagram
Block Diagram

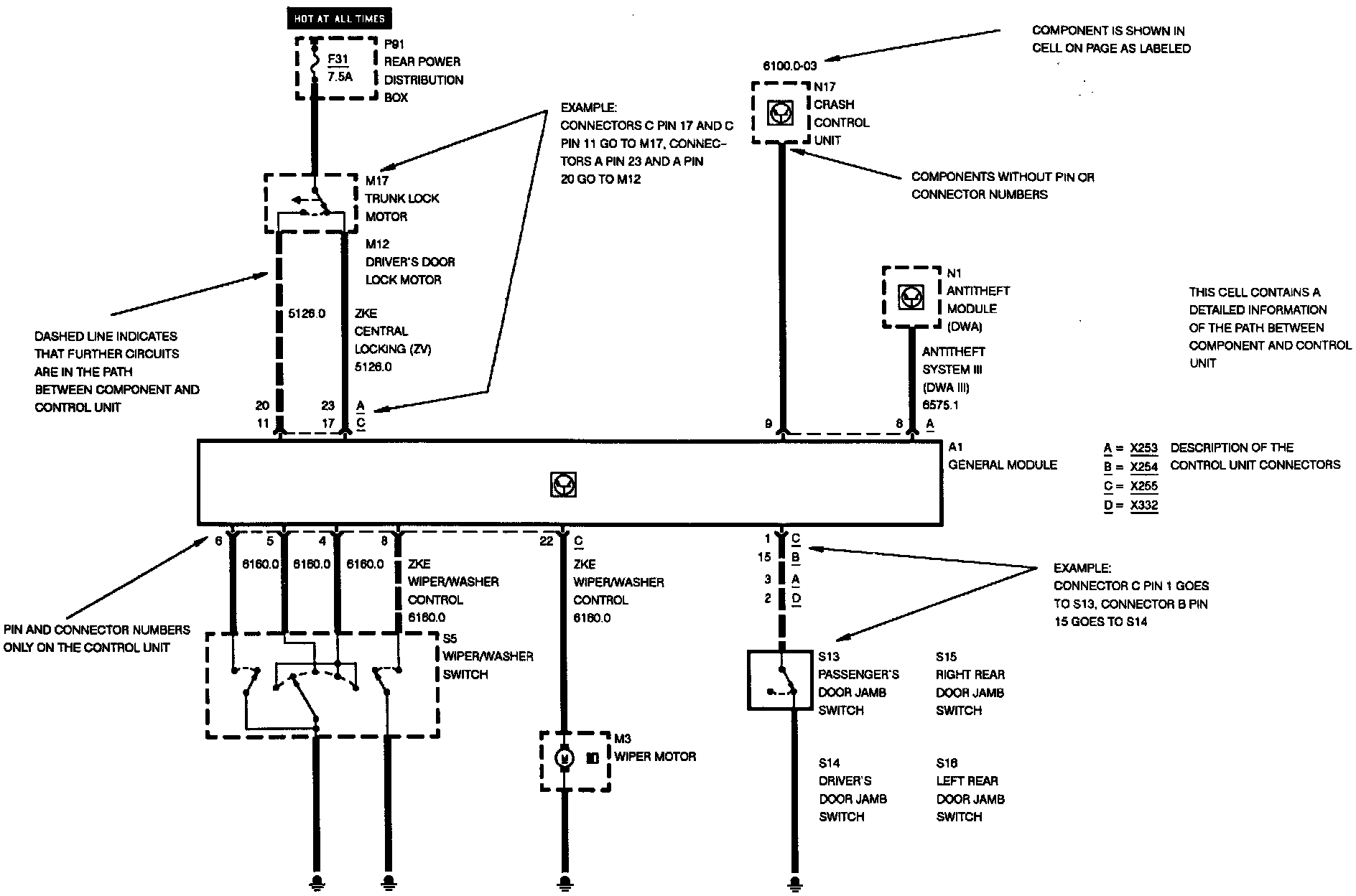

Symbol Identification - Block Diagram:
