Diagnostic Connector Pins 1, 11
Diagnostic Connector Pins 1, 11

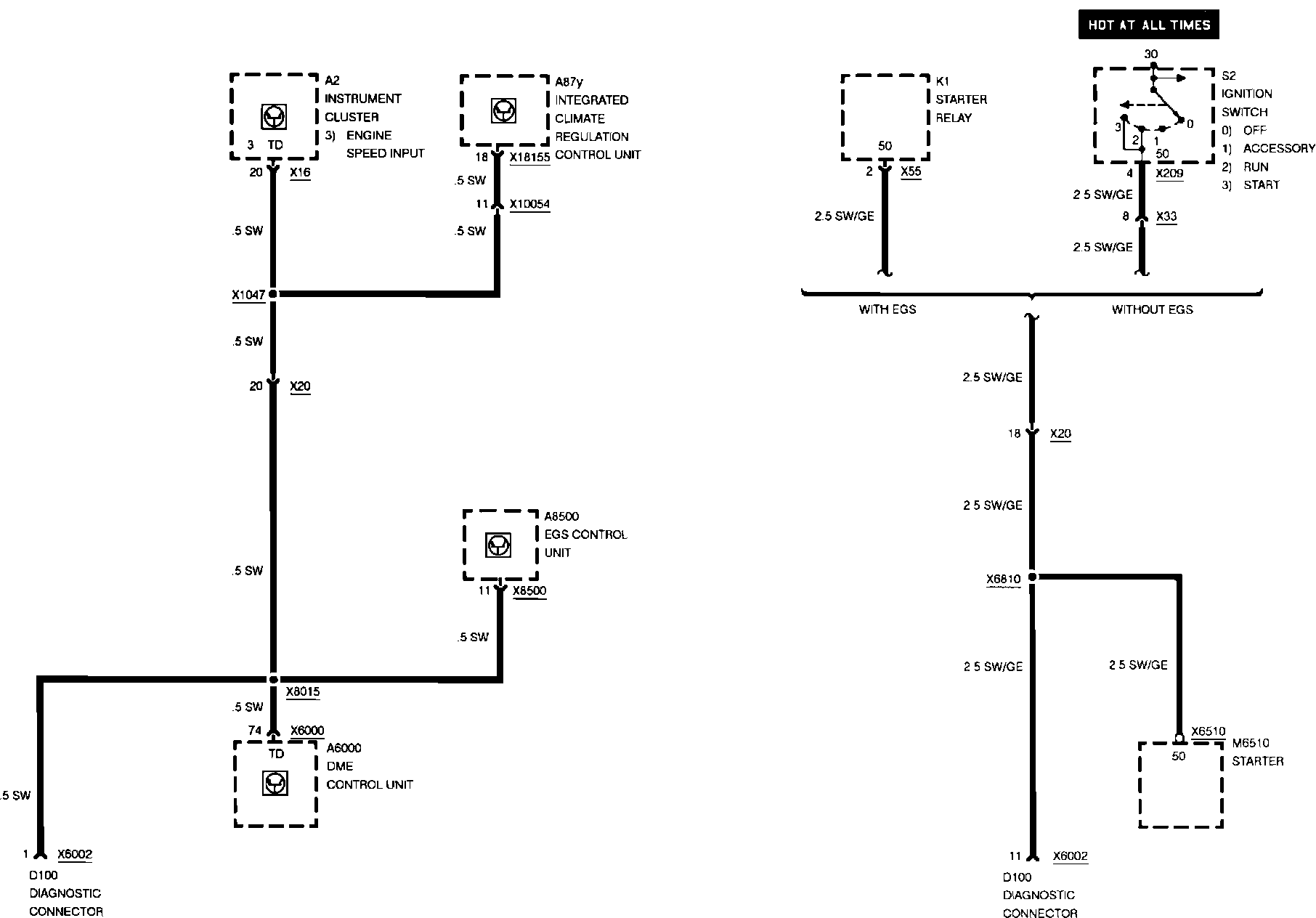

Diagnostic Link: Diagnostic Connector Pins 1 And 11:
