Home
>>
BMW
>>
1993
>>
318is (E36) L4-1796cc 1.8L DOHC (M42)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
RXD
RXD

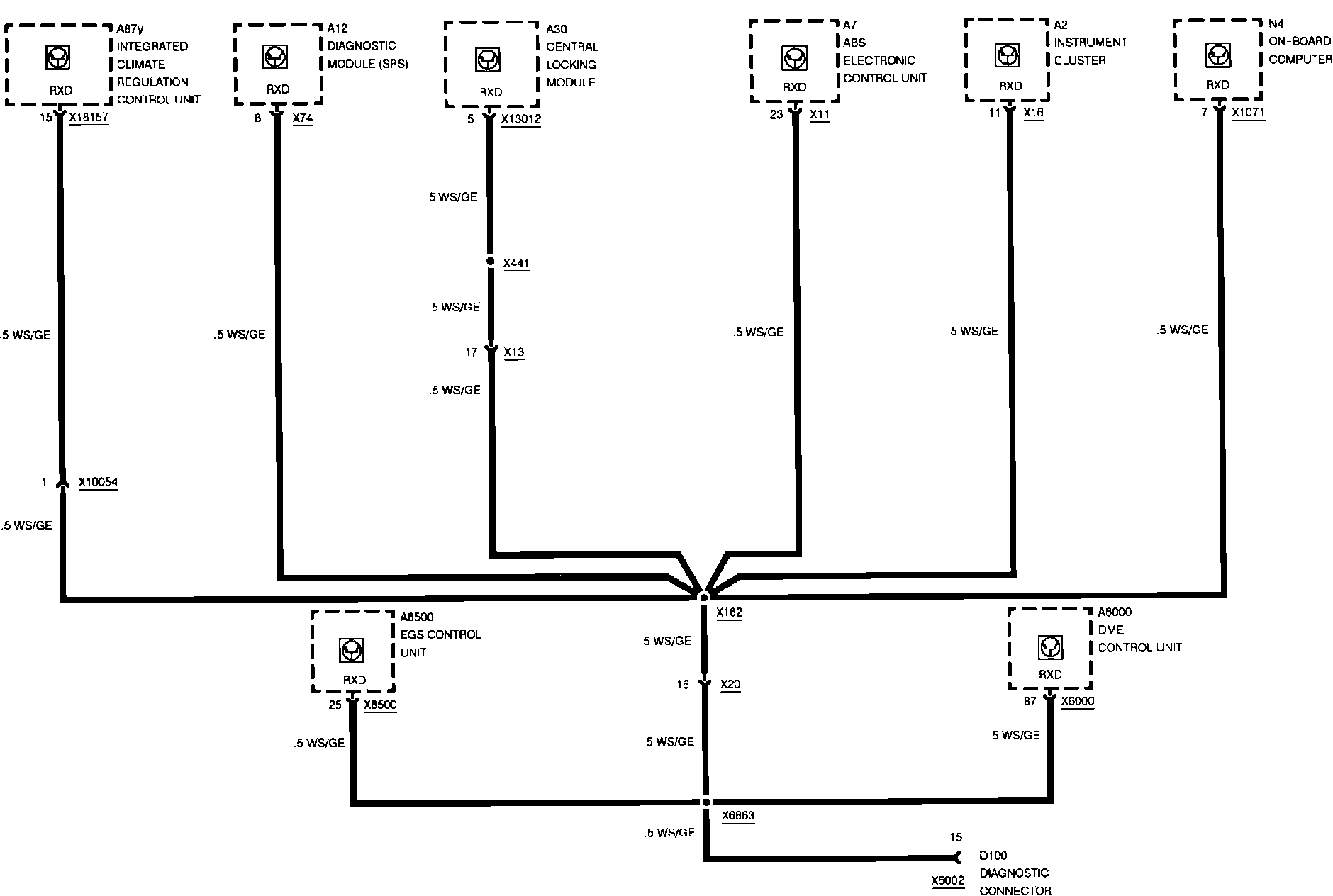

Diagnostic Link: RXD And Pin 15:
