Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
BMW
>>
1993
>>
318is (E36) L4-1796cc 1.8L DOHC (M42)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Power
Power

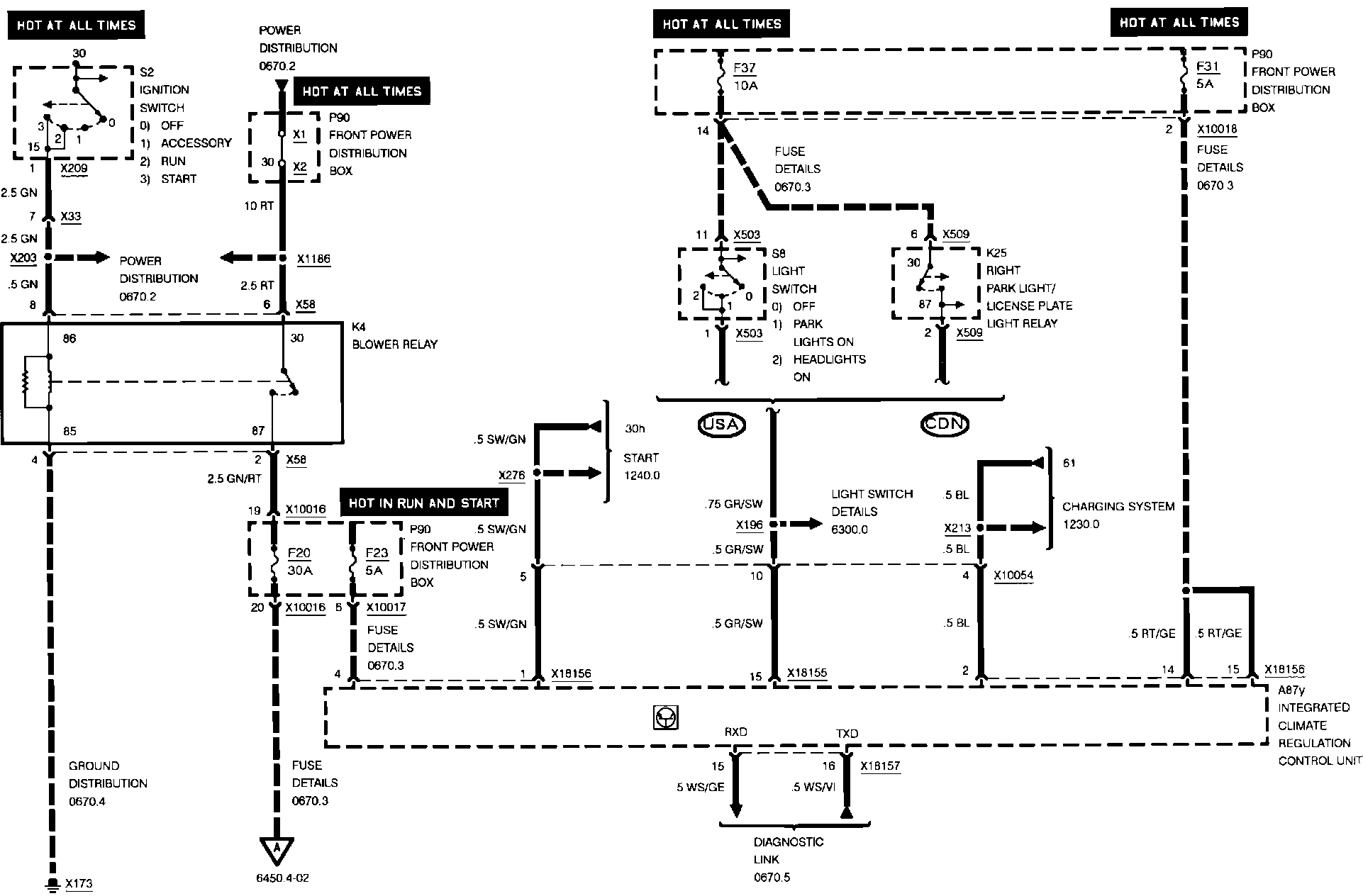

Integrated Climate Regulation (IHKR E36): Power:
