Home
>>
BMW
>>
1993
>>
318is (E36) L4-1796cc 1.8L DOHC (M42)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Systems
>>
System Diagram
System Diagram

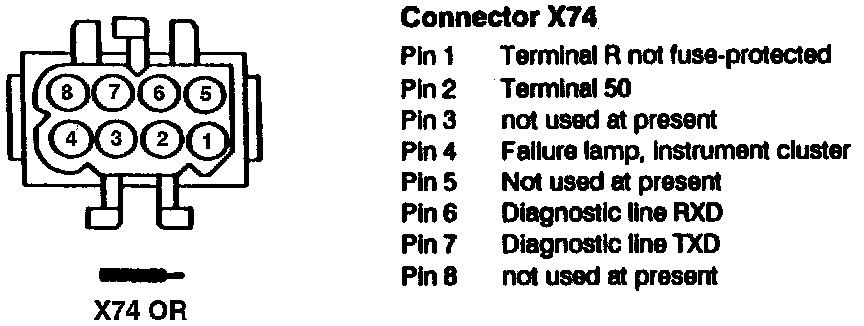

CONNECTOR X74

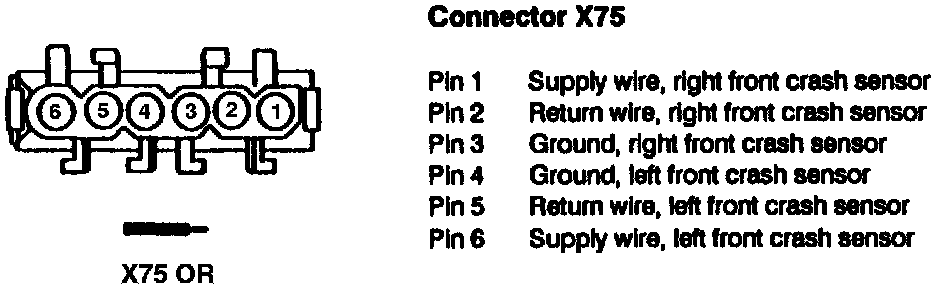

CONNECTOR X75

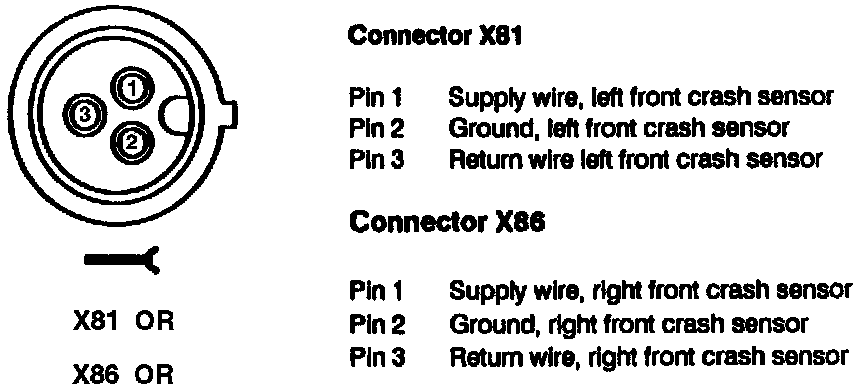

CONNECTOR X81,X86
