BMW
>>
1991
>>
M3 (E30) L4-2302cc 2.3L DOHC (S14)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Rear Defogger
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

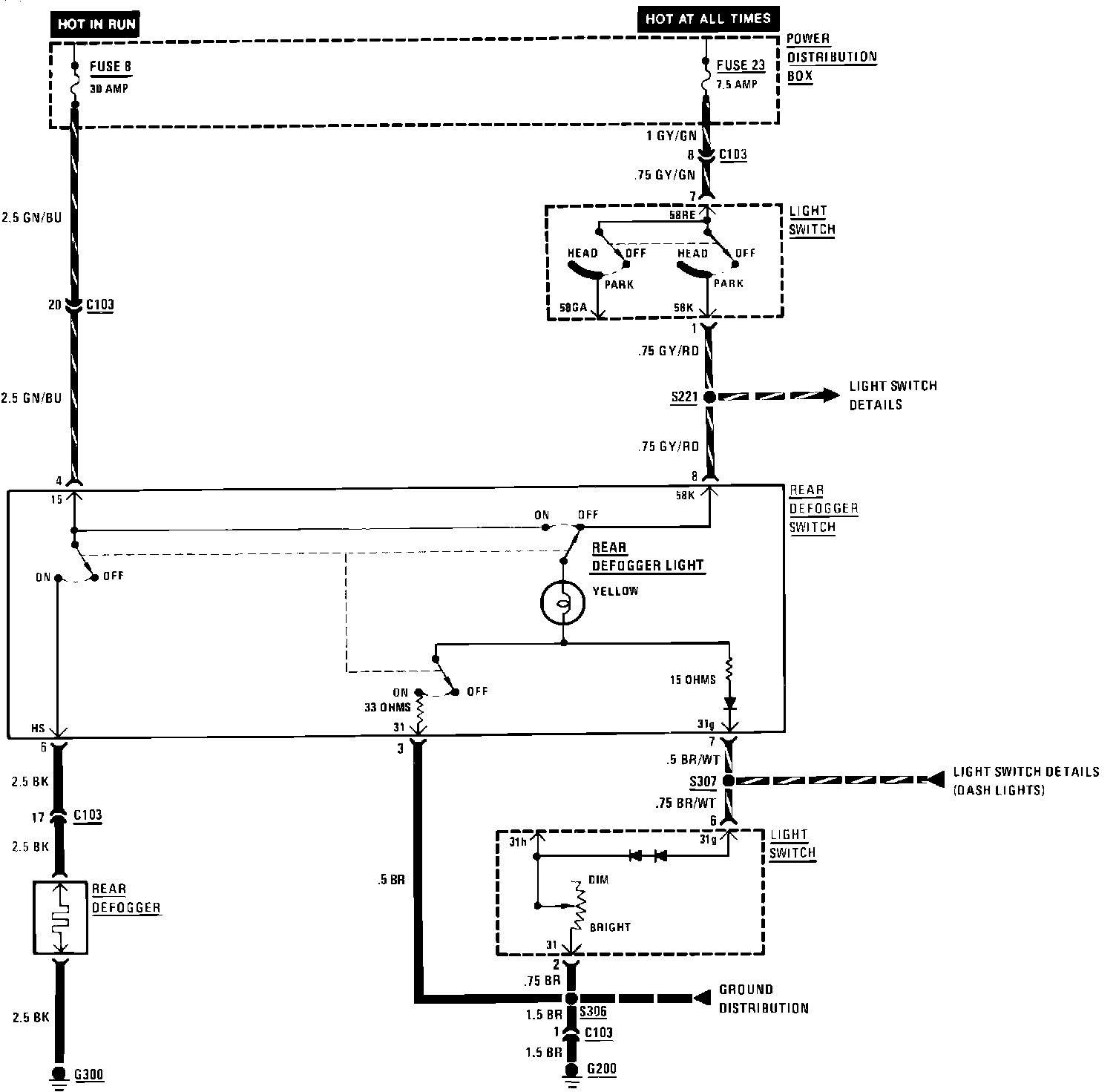

Fig. 24 Rear Defogger:
