BMW
>>
1991
>>
M3 (E30) L4-2302cc 2.3L DOHC (S14)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>
Fuse 10
Fuse 10

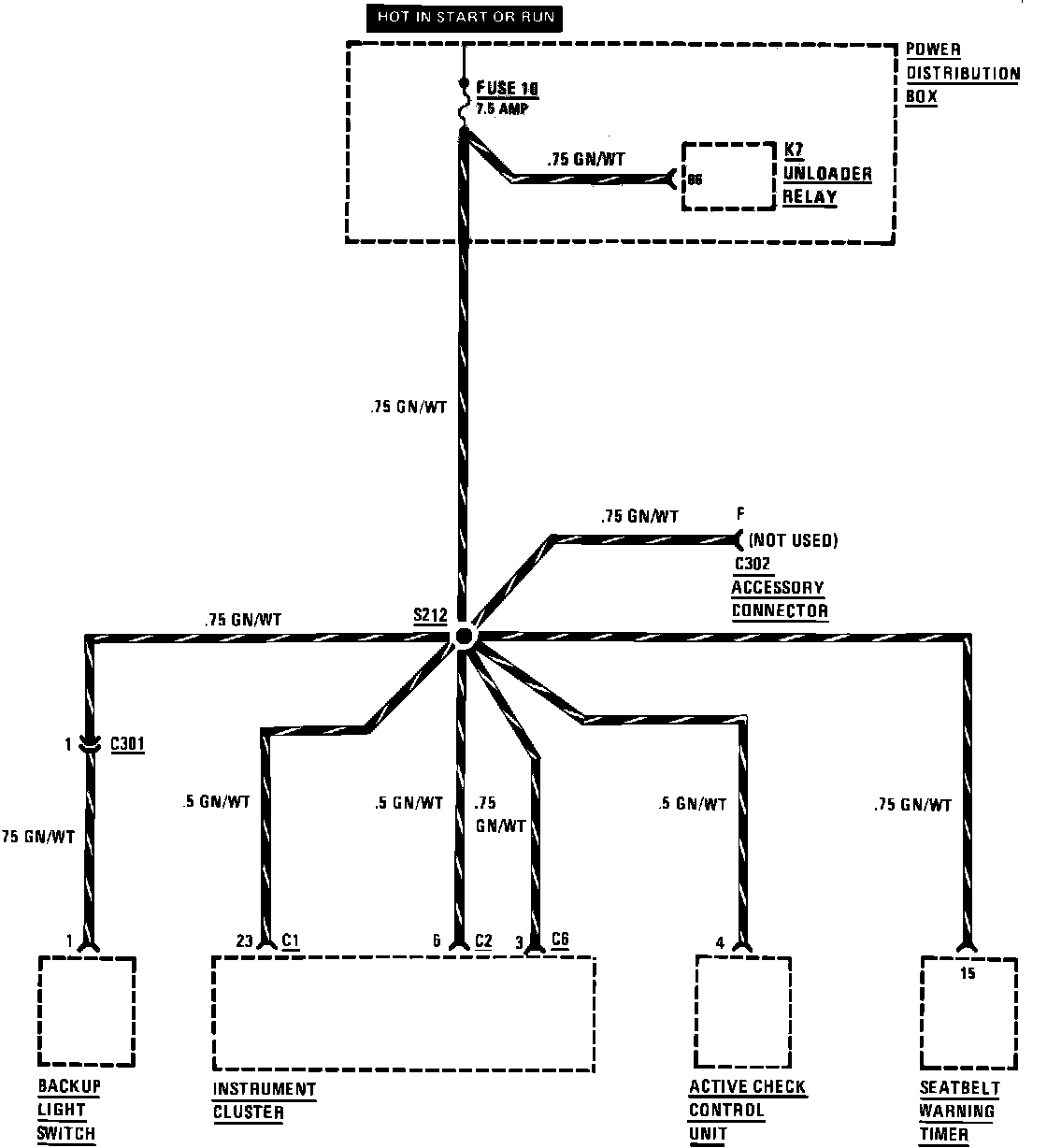

Fig. 5 Power Distribution:
