BMW
>>
1991
>>
M3 (E30) L4-2302cc 2.3L DOHC (S14)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views/Pin Assignments
>>

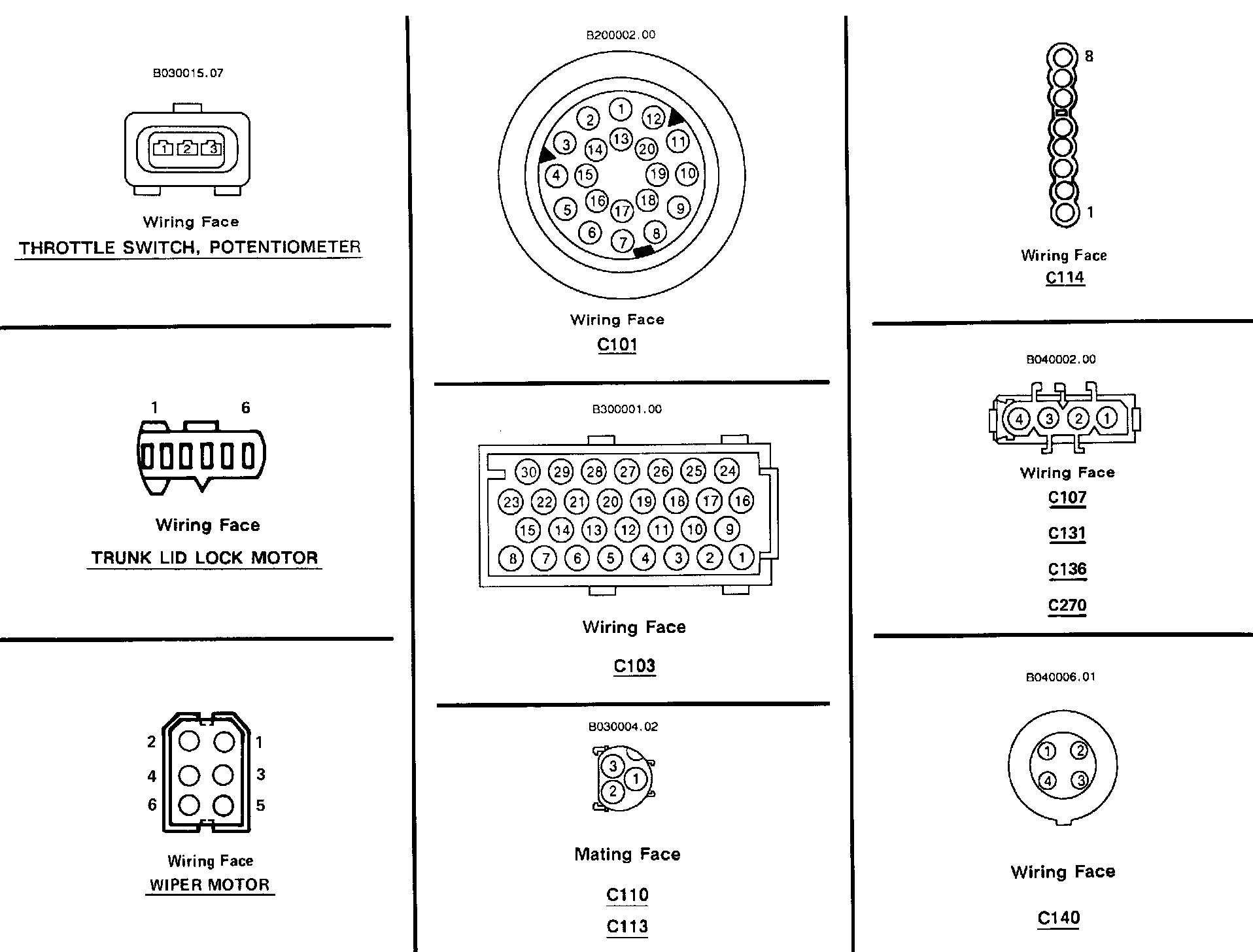

Throttle Switch ... C101 - C140
Throttle Switch ... C101 - C140
Throttle Switch ... C101 - C140:
