Home
>>
BMW
>>
1991
>>
M3 (E30) L4-2302cc 2.3L DOHC (S14)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views/Pin Assignments
>>

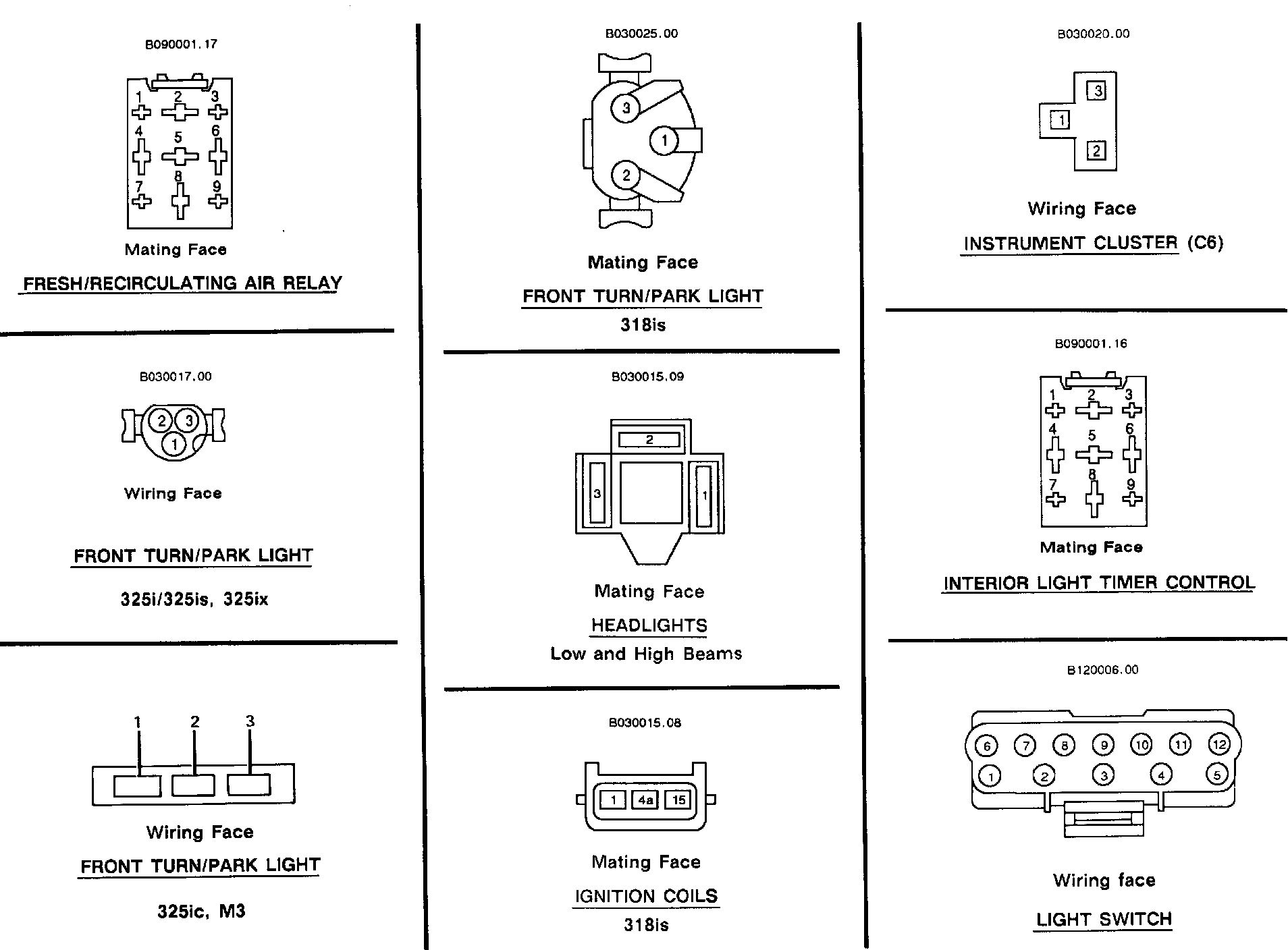

Fresh/Recirc Air Relay ... Light Switch
Fresh/Recirc Air Relay ... Light Switch
Fresh/Recirc Air Relay ... Light Switch:
