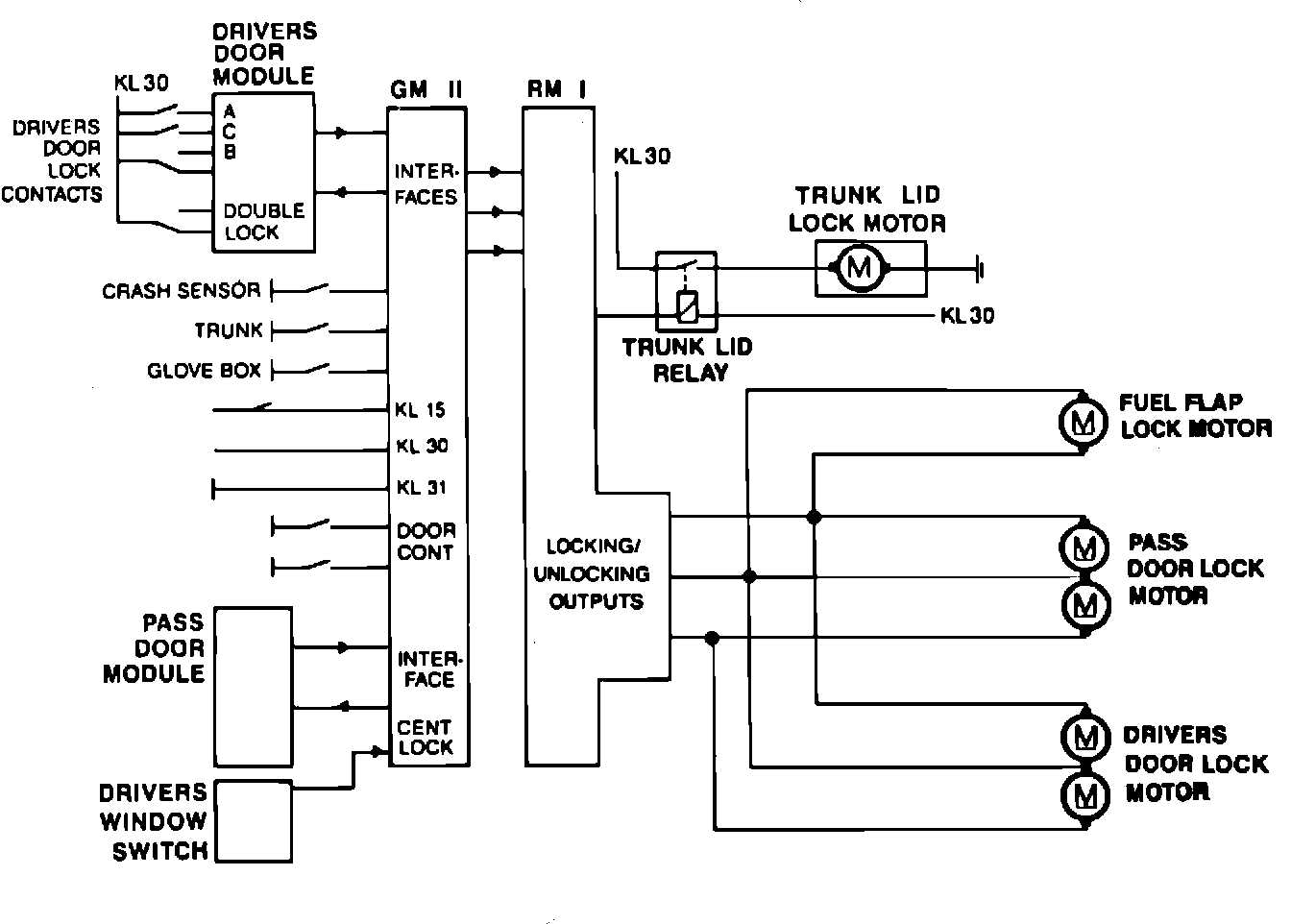

Locking System Operating Flow Block Diagram

Below is a block diagram illustrating the operating flow of the central locking system.

Inputs from the door lock contacts are processed by the door modules. The door modules communicate with the GM via multiplex signals. The GM also receives other inputs such as crash sensor, trunk release, and door contacts. The GM then communicates with the relay module through multiplex signals, and the relay module controls the various loads of the system.
